DNAKE S212/S 1-button SIP video door phone (surface mount).

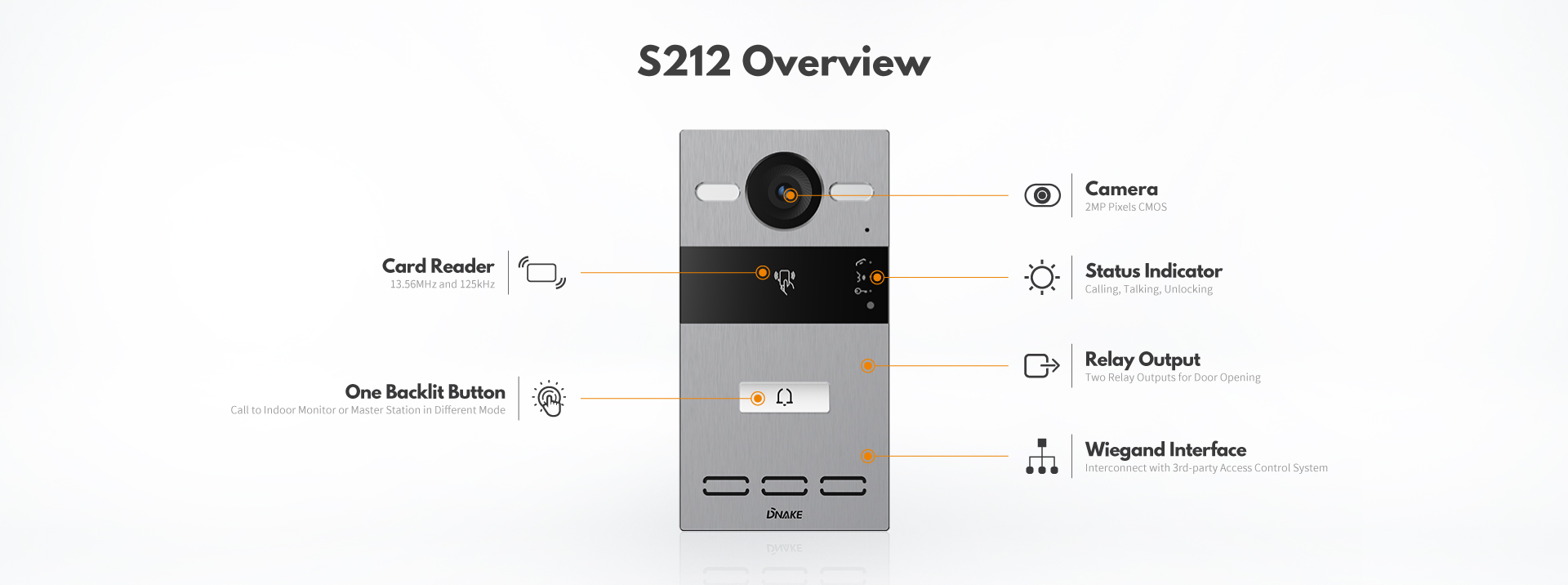

Features

Body material: Silver aluminum panel
Camera: 2M pixels, automatic lighting, Viewing angle: 110°(H) / 60°(V)

RF card reader: NFC, 13.56MHZ & 125kHz
Output Relay: 2 output relay for door opener
IP / IK Rating: IP65, IK08

3 integrated indicators
Installation: Surface Mount
PoE (IEEE802.3af, Power-over-Ethernet);

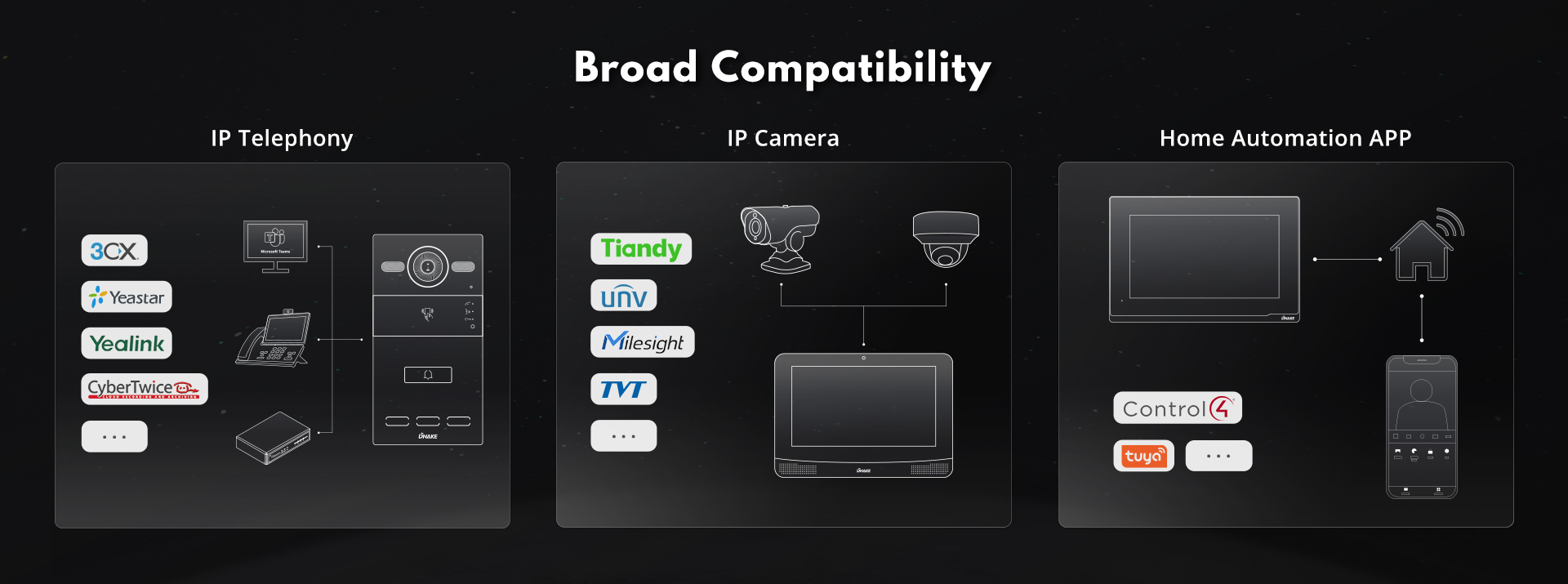

Complies with SIP standard for easy integration in every SIP PBX

Kit Contents

DNAKE S212 (Power adapter not included)
Bracket
Screwing Kit
Quick Start Guide

Datasheet

Datasheet

All Dnake IP Door Entry models are primed and ready to be enrolled into their Cloud Management Platform. This online management service offers a fantastic tool to provide both installer & property managers with remote programming / management of resident’s information, keypad codes, proximity tags, timed free access rules, facial recognition, and much more!

For more information on this, please click here, or contact us to speak to a representative.

Miscellaneous Attributes

Miscellaneous Attributes

Physical
System	Linux
RAM	64 MB
ROM	128 MB
Front Panel	Aluminum
Power Supply	PoE (802.3af) or DC 12V/2A
Standby Power	1.5 W
Rated Power	3.5 W
Camera	2MP, CMOS
Indicator Light	3
Wiegand Port	Support
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
Door Entry	IC (13.56MHz) & ID (125kHz) card
Reset Button	1
RS485 Port	1
Relay Out	2
Input	2
IP / IK Rating	IP65 / IK07
Installation	Surface Mounting
Surface Mounting DIM	168 x 88 x 34 mm
Working Temperature	-40℃ to +55℃
Storage Temperature	-40℃ to +70℃
Working Humidity	10% to 90% (non-condensing)
Audio
Audio Codec	G.711
Echo Cancellation	Yes
DTMF	RFC2833
Microphone	Built-in microphone
Speaker	Built-in speaker
Networking
Protocol	ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Video
Video Codec	H.264
Video Resolution	1280 x 720
Viewing Angle	110°(H) / 60°(V) / 125°(D)
Max. Image Transfer Rate	720p – 25fps
Light Compensation	LED white light
Package Features
Package Content	DNAKE S212 (Power adapter not included), Bracket, Screwing Kit, Quick Start Guide
Qty/CTN	12 pcs
N.W/PCS	0.71 kg
G.W/CTN	11.08 kg
Giftbox Size	215 x 135 x 73 mm
Carton Size	470 x 235 x 295 mm
