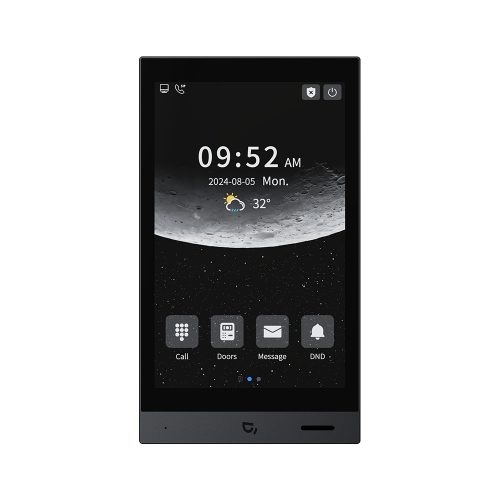

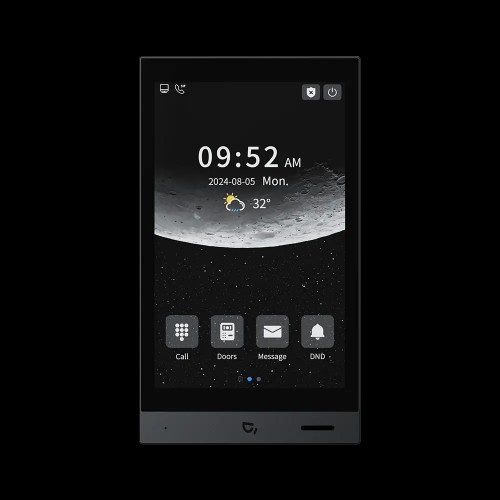

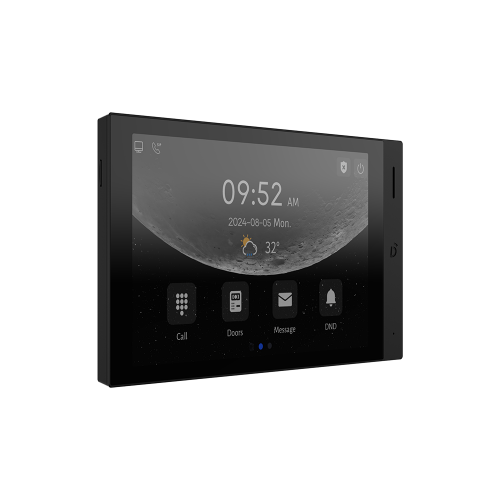

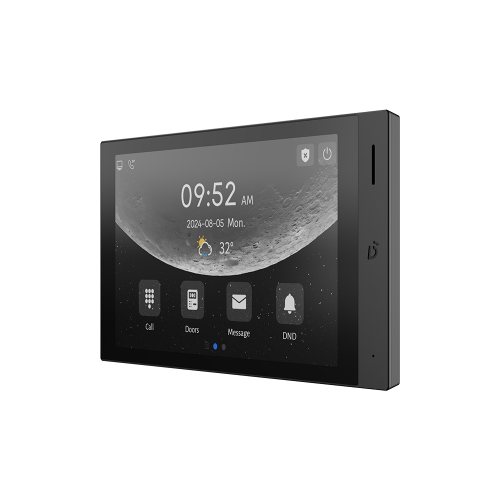

DNAKE H616 8” Android 10 Indoor Monitor

The DNAKE H616 is a sleek and powerful 8″ IPS touchscreen panel crafted from aluminium, designed as an all-in-one solution for home security, intercom, and automation.

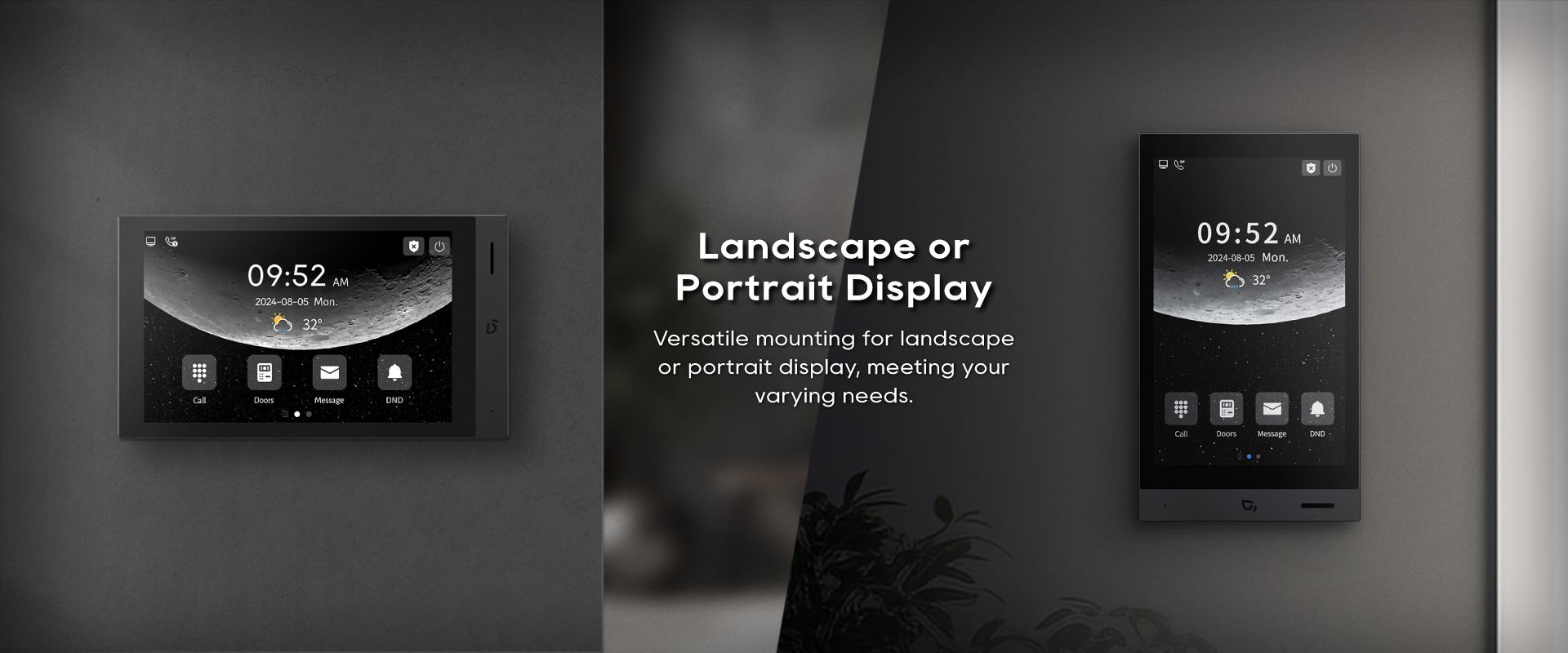

  • Superior performance with a 1280 × 800 capacitive touch display that supports both landscape and portrait orientations through a flexible GUI.

  • Its slim, narrow-bezel design and wall-cling mounting create a clean, modern look suitable for both residential and commercial spaces.

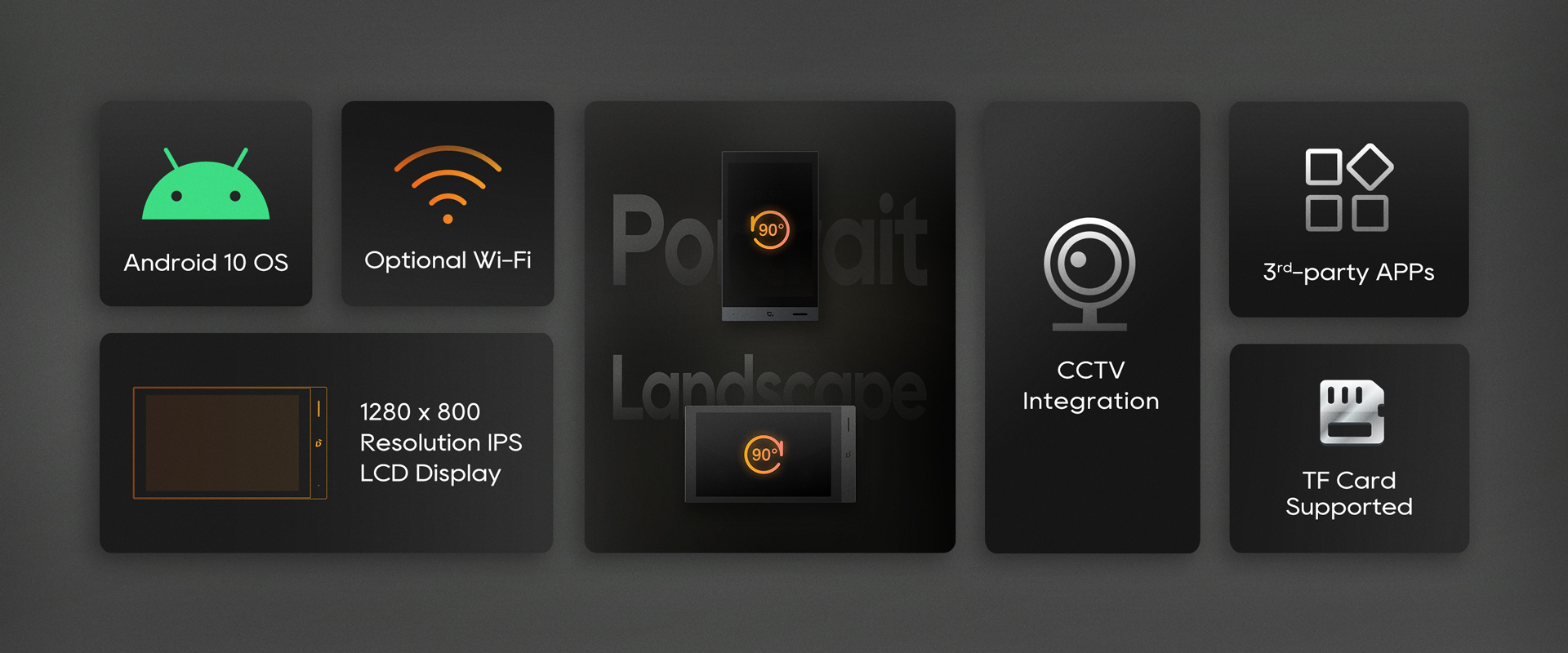

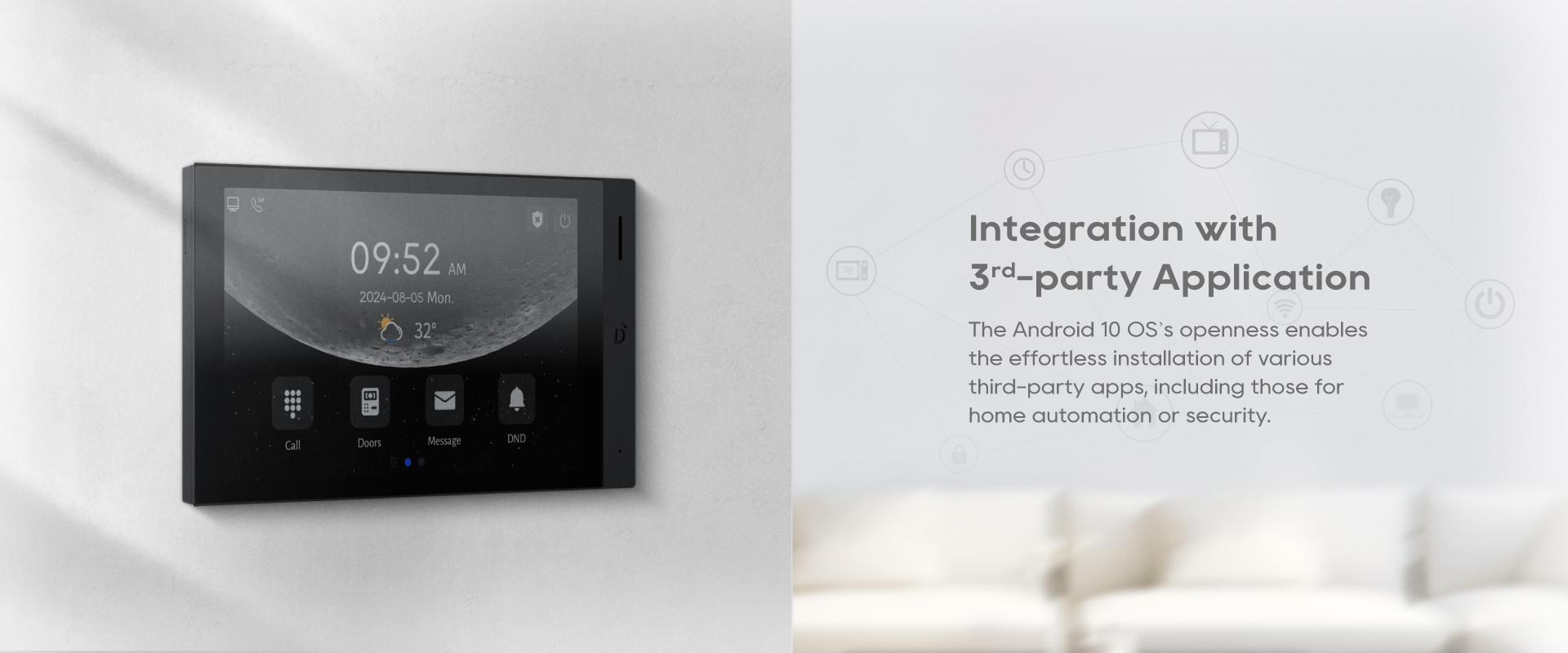

  • Running on Android 10, it’s compatible with a wide range of smart home and third-party applications, offering effortless integration and adaptability.

  • Supports monitoring of up to 16 IP CCTV cameras, providing real-time viewing and control from a single interface.
  • Additional features include optional Wi-Fi connectivity, TF card support, and the choice between surface or desktop mounting.

  • Available in black or silver, the DNAKE H616 combines style, performance, and versatility, perfect for anyone seeking a refined and fully integrated smart security and automation hub.
  • 2GB RAM and 8GB ROM

Datasheet


All Dnake IP Door Entry models are primed and ready to be enrolled into their Cloud Management Platform. This online management service offers a fantastic tool to provide both installer & property managers with remote programming / management of resident’s information, keypad codes, proximity tags, timed free access rules, facial recognition, and much more!

 For more information on this, please click here, or contact us to speak to a representative


Miscellaneous Attributes
Miscellaneous AttributesDevice Specifications - Android System

CategorySpecificationDetails
PhysicalSystemAndroid 10
RAM / ROM2GB / 8GB
Front PanelPlastic + Aluminium
Power SupplyPoE (802.3af) or DC 12V/2A
Wi-FiIEEE802.11 b/g/n @ 2.4GHz (Optional)
TF Card Slot1
Ethernet Port1 x RJ45, 10/100 Mbps adaptive
Relays Out1
Reset Button1
RS4851
Power Output1 (12V/100mA)
Doorbell Input8
Alarm Input8
InstallationSurface Mounting / Desktop
Dimension217 x 124 x 14 mm
Working Temperature-10℃ to +55℃
Storage Temperature-40℃ to +70℃
Working Humidity10% to 90% (non-condensing)

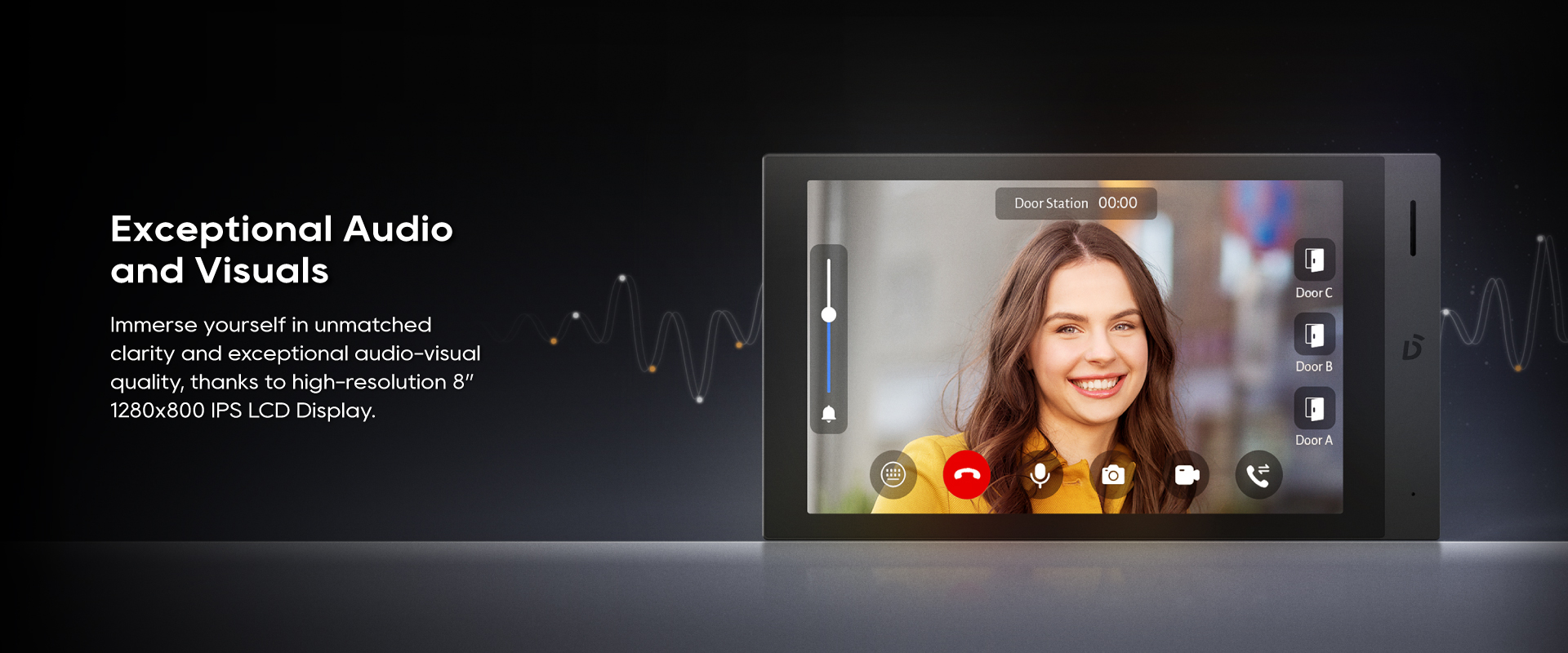

DisplayDisplay8-inch IPS LCD
ScreenCapacitive touch screen
Resolution1280 x 800
NetworkingProtocolSIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
AudioAudio CodecG.711
Echo CancellationSupported
DTMFRFC2833
MicrophoneBuilt-in microphone
Speaker8Ω / 1W
VideoVideo CodecH.264

DNAKE H616 8” Android 10 Indoor Monitor

  • Brand: DNAKE
  • Product Code: H616W
  • Availability:  In Stock
