New Eltako Universal Dimming Actuator IP, Matter Via Wi-Fi

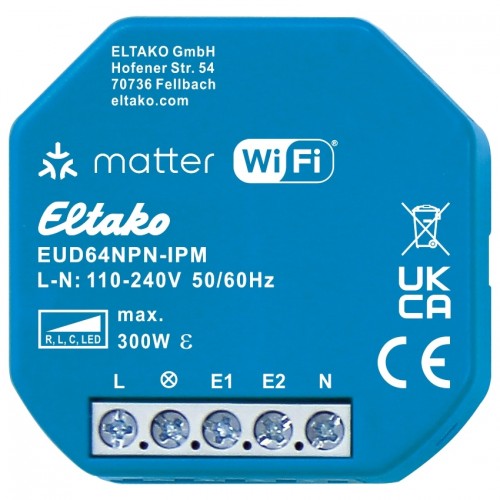

Eltako ENOCEAN Universal Dimming Actuator – IP, Matter via Wi-Fi, Optional EnOcean, 300W

Upgrade your smart home lighting with the Eltako EUD64NPN-IPM, a versatile universal dimming actuator designed for seamless integration and powerful performance.

Key Features

  • Smart Connectivity
    • Supports Matter over Wi-Fi for cross-platform compatibility (Apple Home, Amazon Alexa, Google Home).
    • Optional EnOcean support via plug-in adapter.
  • High Performance
    • Dims 230V LED lamps (up to 300W trailing edge / 100W leading edge)
    • Supports incandescent and halogen lamps up to 300W
    • No minimum load required
  • Advanced Control
    • REST API for custom integrations
    • OTA updates via 2.4 GHz Wi-Fi
    • Memory function retains brightness level after power-off
  • Safe & Efficient
    • Soft ON/OFF with zero-cross switching to protect lamps
    • Overload and overtemperature protection
    • Ultra-low standby power consumption (0.7W)
  • Compact Design
    • Easy installation (46x45mm, 20mm depth)
    • Screw terminals for up to 2.5 mm² conductors

Compatibility & Configuration

  • Works with Matter-certified controllers (e.g., HomePod mini, Echo Dot, Nest Mini)
  • Optional configuration via Eltako Connect App
  • Expandable with plug-on adapters like the EOA64 EnOcean Adapter

For developers, a REST API development version is available on the product’s online page, with ongoing updates and enhancements.

Article Number

30064017

Miscellaneous Attributes
Miscellaneous Attributes
General Information
Product TypeUniversal Dimming Actuator
CertificationsMatter Certified
Electrical Specifications
Power Supply110–240V AC
Standby Power0.7W
Supported Loads- LED (Trailing Edge): up to 300W- LED (Leading Edge): up to 100W- Incandescent/Halogen: up to 300W- No minimum load required
Connectivity & Control
ConnectivityMatter via Wi-Fi (2.4 GHz), Optional EnOcean
Control OptionsREST API, Eltako Connect App, OTA Updates
Compatibility- Apple Home (e.g., HomePod mini)- Amazon Alexa (e.g., Echo Dot)- Google Home (e.g., Nest Mini)
Features & Protections
Switching FeaturesZero-cross switching, Soft ON/OFF, Memory function
ProtectionOverload and Overtemperature Protection
Physical Specifications
Dimensions46 x 45 mm, 20 mm depth
TerminalsScrew terminals, up to 2.5 mm² conductors
Expandability
Plug-on AdaptersSupports EOA64 EnOcean Adapter and others

Eltako Universal Dimming Actuator IP, Matter Via Wi-Fi
