New Eltako Impulse Switch With Integrated Relay Function

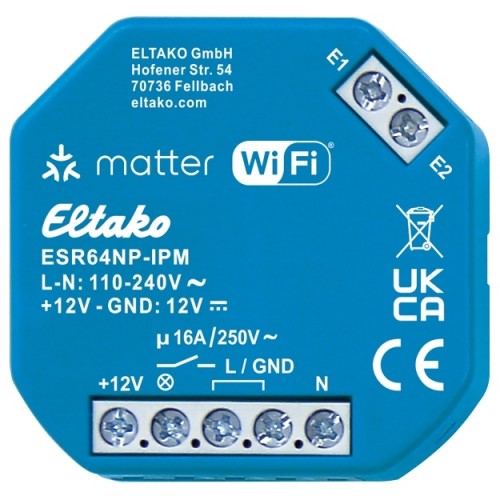

Eltako ESR64NP-IPM Impulse Switch – IP, Matter via Wi-Fi, Optional EnOcean

A smart, high-performance impulse switch with integrated relay functionality, designed for modern automation systems and seamless ecosystem integration.

Key Features

Smart Connectivity

  • Supports Matter over Wi-Fi (2.4 GHz) for cross-platform compatibility
  • Optional EnOcean support via plug-in adapter
  • Over-the-Air (OTA) firmware updates
  • REST API for custom integrations

High Switching Capacity

  • 1 NO contact (not potential-free), rated at 16A / 250V AC
  • Supports:
    • 230V LED lamps up to 600W
    • Incandescent/Halogen lamps up to 2000W

Efficient & Safe Operation

  • Zero-cross switching to protect contacts and connected loads
  • Hybrid technology combines electronic control with high-capacity relays
  • Low standby power consumption: only 0.7W
  • No glow lamp current allowed

Flexible Power Supply

  • Operates on 12V DC or 110–230V AC
  • Switching and control voltage must match supply potential

Compact & Easy to Install

  • Dimensions: 46 x 45 mm, depth: 20 mm
  • Screw terminals support conductor sizes up to 2.5 mm²

Ecosystem Compatibility

  • Works with Matter-compatible controllers:
    • Apple Home (e.g., HomePod mini)
    • Amazon Alexa (e.g., Echo Dot)
    • Google Home (e.g., Nest Mini)
  • Optional configuration via Eltako Connect App

Expandable Functionality

  • Supports plug-on adapters like the EOA64 EnOcean Adapter
  • Developer-friendly with REST API

Article Number

30064015

Miscellaneous Attributes
Miscellaneous Attributes
Smart Connectivity
ProtocolMatter over Wi-Fi (2.4 GHz)
Optional SupportEnOcean via plug-in adapter
Firmware UpdatesOver-the-Air (OTA)
IntegrationREST API for custom integrations
High Switching Capacity
Contact Type1 NO contact (not potential-free)
Rated Load16A / 250V AC
Supported Loads230V LED lamps up to 600W
Incandescent/Halogen lamps up to 2000W
Efficient & Safe Operation
Switching MethodZero-cross switching
TechnologyHybrid (electronic + relay)
Standby Power0.7W
Glow Lamp CurrentNot allowed
Flexible Power Supply
DC Supply12V DC
AC Supply110–230V AC
NoteSwitching/control voltage must match supply potential
Compact & Easy to Install
Dimensions46 x 45 mm, depth: 20 mm
TerminalsScrew terminals, up to 2.5 mm² conductors
Ecosystem Compatibility
Apple HomeHomePod mini
Amazon AlexaEcho Dot
Google HomeNest Mini
App SupportEltako Connect App (optional)
Expandable Functionality
Plug-on AdaptersSupports EOA64 EnOcean Adapter
Developer ToolsREST API available

Eltako Impulse Switch With Integrated Relay Function

  • Brand: Eltako
  • Product Code: ERS64NP-IPM
  • Availability:
    Available on back-order
