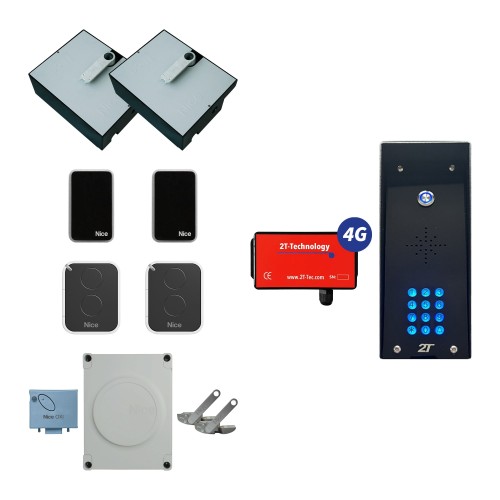

What's Included
- L-FAB4024-DKIT Underground Gate Opener Kit
- 2 x BM4024 24v Motors
- 1 x EPMB Blue-bus Photocells (Pair)
- 2 x ON2E 433.92 Mhz, 2 channel Transmitters
- 2 x BMBOX4 Foundation Boxes
- 1 x MC824H Control Unit, with Blue-bus Technology
- 1 x OXI 4 channel Receiver
- 2T Technology Hooded 4G GSM Audio Intercom System with Coded Keypad
Nice L-FAB4024-DKIT Underground Gate Opener Kit
Features
- Foundation boxes with mechanical stop on opening and cataphoresis paint finish
- Choice of release from inside or outside by a two key or lever operated release mechanism
- Standard Opening 110°
- Ideal for intensive use with MC824H, BlueBUS, Solemyo or Opera Systems
- Single key programming
- Self-learning opening / closing limit positions
- Self-diagnostics
- Pause time programming
- Pedestrian pass door
- Opening / closing deceleration
- Obstacle detection
- Optional back-up battery in the event of a power failure (model no: PS324)
- Provision for safety edges
2T Technology VV-IKH
2T Technology Hooded 4G GSM Audio Intercom System with Coded Keypad.
Key Features
- Sleek Intercom with Back and Side Lights
- Spoken male or female voice or tones
- IP55 Waterproof housing
- Control 2 Gates or Doors with 2 relays
- Calls 1 to 5 numbers in sequence. landline or mobile
- Open access operation by default
- 200 user white list, when numbers programmed
- Do Not Disturb mode
- 10 automated schedules time events, assignable per gate
- Backlit button and keypad
- Time and day limited keypad codes
- Excellent Audio Quality
- Local support
- Intelligent software that keeps the PAYG SIM on the Network
- Security Code to restrict programming access
- Android and iPhone Apps available
| Dimensions | |
| Dimensions | 375 mm x 225 mm x h 110 mm (motor) |
| Electrical Data | |
| Absorption (A) | 5 A |
| Motor Voltage | 24v |
| Power (W) | 120 |
| Gate Specifications | |
| Automation Type | Underground |
| Kit Type | Double |
| Max. Gate Leaf Length (M) | 4 |
| Max. Gate Weight (KG) | 650 |
| Performance Data | |
| Speed (RPM) | 1 |
| Torque (Nm) | 300 |
| Work Cycle (cycles/hour) | 60 |
| Working Temp. (°C Min/Max) | -20 ÷ +50 |
| Technical | |
| Protection Level (IP) | 67 |
