Nice L-Fab Underground Gate Opener Kit 2 (24v, 4m)

Click Image for Gallery

Description
Specification

The Nice L-FAB4024-DKIT is a premium 24V underground swing gate automation kit designed for residential and multi-residential installations where aesthetics, reliability and intensive operation are essential. Suitable for gates with leaves up to 4m wide, the L-FAB4024-DKIT offers a completely concealed installation, keeping the automation hidden from view while delivering smooth, powerful gate movement.

Powered by the advanced BM4024 24V underground operators and controlled by the intelligent MC824H Moonclever control unit, the system incorporates BlueBUS technology, obstacle detection, self-learning travel limits and optional battery backup functionality. The result is a sophisticated automation solution ideal for prestigious residential properties and high-use entrances.

Key Features

Suitable for double swing gates with leaves up to 4m
Concealed underground installation preserves gate appearance
Powerful 24V DC electromechanical motors
Designed for intensive residential and multi-user applications
BlueBUS technology simplifies wiring and installation
Magnetic encoder technology for precise positioning
Integrated obstacle detection and safety monitoring
Self-learning opening and closing limits
Soft start and slowdown functions for smooth operation
Pedestrian opening function
Optional battery backup for operation during power failures
Solar-compatible via Nice Solemyo system
Choice of internal or external manual release mechanisms
Standard opening angle up to 110°
Optional wide-angle opening using the BMA1 converter system

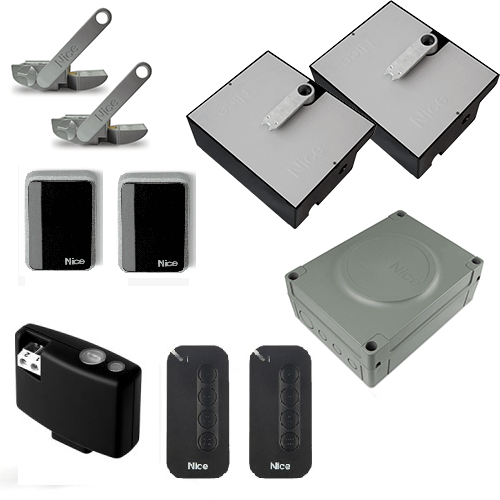

What's Included?

Quantity	Description
2 x	Nice BM4024 24V Underground Motors
2 x	LFABBOX4 / BMBOX4 Foundation Boxes
1 x	MC824H Moonclever Control Panel
1 x	OXIBD Radio Receiver
2 x	MYGO4
1 x	Pair of EPMB BlueBUS Photocells
2 x	Manual Release Lever Kits

Technical Specifications

Specification	Value
Product Code	L-FAB4024-DKIT
Motor Voltage	24V DC
Power Supply	230V AC 50Hz
Installation Type	Underground
Maximum Gate Leaf Length	4m
Maximum Gate Weight	Up to 650kg per leaf
Protection Rating	IP67
Opening Angle	110° Standard
Optional Opening	Up to 360° with BMA1 accessory
Power Consumption	120W
Current Draw	5A
Operating Force	300N
Duty Cycle	Up to 60 cycles/hour
Operating Temperature	-20°C to +50°C
Control Unit	MC824H Moonclever
BlueBUS Compatible	Yes
Battery Backup Compatible	Yes (PS324 Optional)
Solar Compatible	Yes (Solemyo System)

Dimensions
Dimensions	375 mm x 225 mm x h 110 mm (motor)
Electrical Data
Absorption (A)	5 A
Motor Voltage	24v
Power (W)	120
Gate Specifications
Automation Type	Underground
Kit Type	Double
Max. Gate Leaf Length (M)	4
Max. Gate Weight (KG)	650
Performance Data
Speed (RPM)	1
Torque (Nm)	300
Work Cycle (cycles/hour)	60
Working Temp. (°C Min/Max)	-20 ÷ +50
Technical
Protection Level (IP)	67
