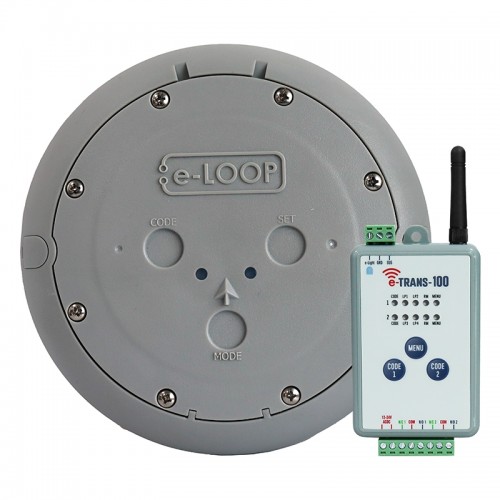

The AES EL00LI-RAD-KT E-Loop Light Industrial Kit provides a simple and effective wireless vehicle detection solution for automated gates and barrier systems.
Designed for both vehicle presence monitoring and free-exit operation, the system eliminates the need for traditional induction loop cabling, helping to reduce installation time and groundworks. Supplied with the E-Loop detector and e-Trans wireless transceiver, this complete kit delivers reliable vehicle detection for residential, commercial and light industrial access control applications.
Key Features:
- Kit includes a light industrial e-Loop detector and e-Trans-100 transceiver.
- Supports both vehicle presence and exit detection modes.
- IP68 ingress protection
- Rugged casing with 6 tonne static load rating & brass inserts
- Dual seal design
- Fast release
- Grey Colour
- Wide Detection Range
- Radio protocol with replay attack prevention
- Upgraded Radar detection software
- 6 Year Battery Life
- Smart Phone App controlled
Manuals & Datasheets:
Technical:
| Radio Specifications | |
| Frequency | 433.39 MHz |
| Modulation | FSK |
| Bit Rate | 100 kbps |
| Bandwidth | 50 kHz |
| Antenna Type | PCB |
| Nominal Output Power | 14 dBm |
| Receive Sensitivity | -126.2 dBm |
| Security | 128-bit AES encryption |
| Spurious Emissions | 30 to 1000 MHz: < -56 dBm 1 to 12.75 GHz: < -44 dBm 1.8 to 1.9 GHz: < -58 dBm 5.15 to 5.3 GHz: < -51 dBm |
| Power, Physical & Environment | |
| Power | 2 x 3.6 V, 3000 mAh |
| Dimensions | 178 x 178 x 24 mm |
| Weight | 800 g |
| Environment | Designed for above-ground mounting IP68 ingress protection |
| Operating Temperature | -40°C to 80°C |
| Standby Power | 14 µA |
| Activation Power | 40 µA |
| Compliance | |
| Safety | Tested to CE |
| EMC | Tested to: EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for ElectroMagnetic Compatibility” Including: a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”. b) Transmitter and receiver test to EN 300 220-1 V3.1.1 “Short Range Devices (SRD) operating in the frequency range 25 MHz to 1000 MHz; Part 1: Technical Characteristics and methods of measurement”. c) Immunity Tests to EN 301 489-1 |
