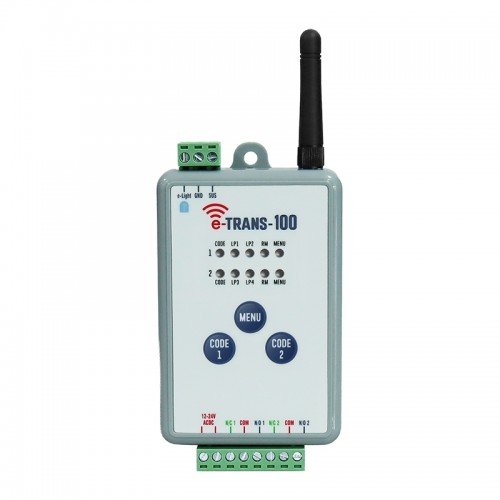

The e-Trans 100 is a flexible mid-range transceiver engineered for reliable access control and automation applications. Featuring two channels and support for up to four loops, it provides dependable control across a wide range of commercial installations. Designed to scale with system requirements, the unit can accommodate up to 100 e-TX transmitters, making it ideal for medium to large sites.
Compatibility with e-Light and e-Light relay systems enables seamless integration, while AC and DC power support offers greater installation flexibility. When housed within a weatherproof enclosure, the e-Trans 100 delivers robust long-term performance in demanding environments.
Key Features:
- Supports up to 100 e-TX Remotes & 4 e-Loops
- Dual Channel Configuration
- Sequence Mode Capability
- Compatible with e-Light Relay Systems
- Power Input: 10–36V DC @ 12mA | 10–26V AC
- Optional Low-Draw Current Mode: 4.5mA
- Simple Integration & Scalable Deployment
Manuals & Datasheets:
Technical:
| Specifications | |
| Voltage | 10-28V AC/DC |
| Current Draw Standby | 12 mA |
| Current Draw Active | 20 mA |
| Frequency | 433.39MHz |
| Bandwidth | 250Hz |
| Relay | 1-amp contact rating, N/C, COM, N/O Connections x 2 |
| Transmitting | <10mW |
