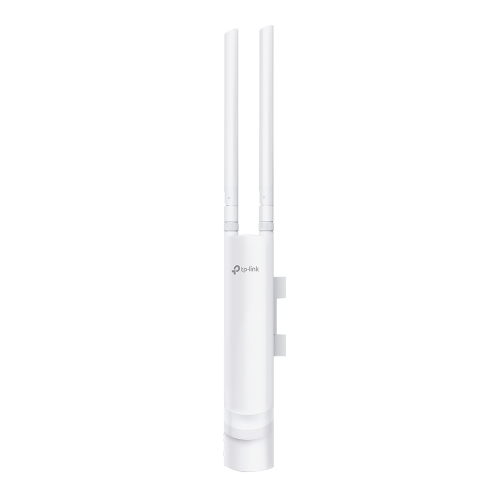

The TP-Link EAP110-Outdoor is a durable outdoor access point designed to deliver reliable wireless coverage in external environments. Ideal for gardens, courtyards, cafés, and small business outdoor spaces, it provides stable connectivity where indoor access points cannot reach.
Operating on the 2.4 GHz band, the EAP110-Outdoor offers dependable wireless performance for everyday applications such as browsing, messaging, and light streaming. Its high transmission power and enhanced antenna design help extend coverage across wider outdoor areas, ensuring consistent connectivity for multiple users.
Built with a weatherproof enclosure, the EAP110-Outdoor is designed to withstand harsh conditions including rain and temperature extremes. Power over Ethernet support simplifies installation by allowing both power and data to be delivered through a single cable, making deployment flexible and efficient.Compatible with TP-Link's Omada management platform, the EAP110-Outdoor supports centralised configuration and monitoring, enabling easy control across multiple access points. It is a practical and cost-effective solution for extending Wi-Fi coverage into outdoor environments with minimal complexity.
Features
- Ideal for Outdoor Environments: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2x2 MIMO.
- Long-Range Coverage:Dedicated high-power amplifier and professional antennas.
- Integrated into Omada SDN:Centralised Cloud Management and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies
Kit Contents
- 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
- Passive PoE Adapter
- Power Cord
- Mounting Kit
- Waterproof Rubber Insert
- Waterproof Antennas
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | Fast Ethernet (RJ-45) Port*1 (Support Passive PoE) |
| Button | Reset |
| Power Supply | 24VDC / 0.6A Passive PoE Supply |
| Max. Power Consumption | 3.12W |
| Dimensions (W x D x H) | 8.5 x 1.8 x 1.1in (216 x 46 x 27mm) |
| Antenna | 2 x 3 dBi External Omni Weatherproof |
| Weatherproof Enclosure | IP 65 |
| Mounting | Pole / Wall Mounting (Kits Included) |
| Wireless Features | |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4 GHz |
| Signal Rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP/WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK |
| Transmission Power | CE: ≤20dBm (EIRP) FCC: ≤22dBm |
| Management Features | |
| Omada App | Yes |
| Auranet Controller Software | Yes |
| Centralised Management | Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200 or Omada Software Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | Yes |
| System Logging Local / Remote Syslog | Yes |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content | 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
| Environment | Operating Temperature: -30°C ~ 65°C (-22°F ~ 149°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
