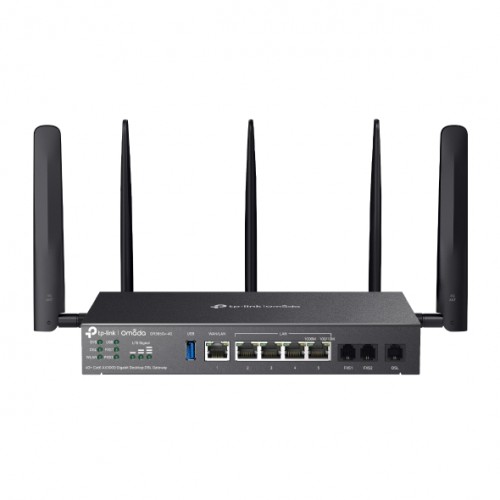

New Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

The Omada DR3650v‑4G is a versatile all‑in‑one business gateway designed for environments that require flexible WAN connectivity, secure routing, and integrated wireless networking. Combining an xDSL modem, 4G LTE connectivity, VPN router, and Wi‑Fi access point in a single device, it simplifies deployment while ensuring reliable internet access for small offices and branch locations.

Supporting VDSL and ADSL connections alongside 4G LTE mobile backup or primary WAN access, the DR3650v‑4G provides dependable connectivity with automatic failover for improved uptime. Integrated Wi‑Fi delivers secure wireless coverage without the need for additional access points, while advanced routing, QoS, and comprehensive VPN support enable secure site‑to‑site and remote access connectivity.

Fully integrated with the Omada SDN platform, the DR3650v‑4G supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. Enterprise‑grade security features such as firewall policies and access control help protect network traffic, making the DR3650v‑4G an ideal all‑in‑one gateway for businesses that need resilient connectivity, simplified management, and integrated wireless networking.


Features

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 4G+ Cat6 up to 300Mbps
  • 3× RJ11 Ports (2× FXS, 1× DSL) & 5× RJ45 Gigabit Ports & 1× USB 3.0 Port
  • 2× Nano SIM for 4G/LTE Failover
  • VDSL2 35b: Supports 350Mbps DSL Access
  • VDSL2/ADSL2+/ADSL2/ADSL Compatibility
  • IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
  • Load Balancing Across DSL, 4G, and Ethernet WAN for Optimised Connectivity
  • Centralised Cloud Management
  • Desktop/Wall/Rack Mounting (Purchase Rack-mount Kit-D226 Separately)

Kit Contents

  • DR3650v-4G
  • Power Adapter
  • Ethernet Cable
  • Phone Cable
  • Rubber Feet
  • SIM Card Eject Pin
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
Security
  • Access Control: Source and destination IP based access control
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Interfaces: 1 × Gigabit WAN or LAN port, 4 × Gigabit LAN ports, 1 × DSL port, 2 × FXS ports, 1 × USB 3.0 port, dual nano SIM slot for 4G Cat6
  • Buttons: Reset button
  • Power Supply: 12 V DC / 3.3 A power adapter
  • Wi‑Fi Frequency and Speed: 2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps
  • Flash: 256 MB NAND
  • DRAM: 512 MB DDR4
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Antenna: Three 5 GHz 5 dBi and 2.4 GHz 3.5 dBi detachable Wi‑Fi antennas, two 4 dBi detachable LTE antennas
  • Mounting: Desktop, wall or rack mount with optional kit
  • Max Power Consumption: 28.482 W without power adapter, 31.42 W with power adapter under full load
Performance
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 3,800
  • NAT Throughput: Up to 946 Mbps depending on connection type
  • IPsec VPN Throughput: Up to 569.9 Mbps depending on encryption
  • GRE Throughput: 541.8 Mbps unencrypted, 289.2 Mbps encrypted
  • WireGuard VPN Throughput: 311.6 Mbps
  • OpenVPN Throughput: 129.3 Mbps
  • L2TP VPN Throughput: 909.4 Mbps unencrypted, 494.9 Mbps encrypted
  • PPTP VPN Throughput: 897.5 Mbps unencrypted, 190.8 Mbps encrypted
  • SSL VPN Throughput: 126.7 Mbps
Wireless Features
  • Advanced Wireless: Seamless roaming, mesh support, OFDMA, beamforming and MU‑MIMO
  • Radio Controls: Enable or disable SSID broadcast and wireless radio
  • Traffic Optimisation: Load balance, airtime fairness and rate limiting per SSID or client
  • Encryption: WPA, WPA2 and WPA3 personal and enterprise
  • Multiple SSIDs: Up to 16 total, 8 per radio
  • Guest Network: Supported
Basic Functions
  • WAN Types: Static IP, dynamic IP, PPPoE with MRU support, PPTP and L2TP
  • MAC Clone: WAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Routing: Static routing and policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application optimised routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, virtual server, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
VPN
  • SSL VPN: Up to 50 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP and L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • WireGuard VPN: Supported
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada cloud, hardware and software controller support
  • Zero touch provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and scheduled reboot
  • TR‑069 support
  • Automatic discovery, monitoring and unified configuration
Others
  • Certifications: CE, RoHS
  • Package contents: DR3650v‑4G, power adapter, Ethernet cable, phone cable, SIM eject pin, rubber feet and installation guide
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

  • Brand: TP-Link
  • Product Code: DR3650v-4G
