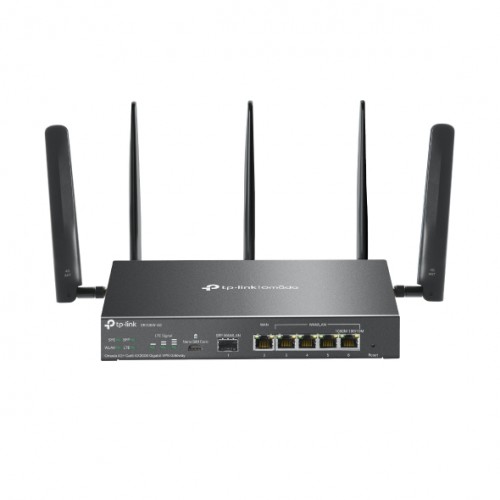

Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway

The Omada ER706W‑4G is a business‑class 4G VPN router designed for sites that require reliable internet access alongside integrated wireless networking. Ideal for offices, branches, and temporary locations where fixed‑line broadband is unavailable or used as backup, it combines mobile WAN connectivity, routing, security, and Wi‑Fi in a single compact device.

Supporting 4G LTE connectivity, the ER706W‑4G provides dependable mobile internet access with automatic failover to maintain uptime. Built‑in Wi‑Fi eliminates the need for a separate access point, simplifying deployment while delivering secure wireless coverage for staff and visitors. Advanced routing features, load balancing, and comprehensive VPN support enable secure site‑to‑site and remote access connectivity for business operations.

Fully integrated with the Omada SDN platform, the ER706W‑4G supports cloud‑based management, centralised configuration, and real‑time monitoring from a single interface. With enterprise‑grade security features including firewall policies and access control, it is an ideal all‑in‑one gateway solution for businesses that need flexible connectivity, simplified management, and secure wireless networking.


Features

  • Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans in the US).
  • Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • Provide high-speed wired connectivity.
  • Extend and concentrate the Wi-Fi signals.
  • Cloud access and the Omada app for easy management.
  • Seamlessly connects to EAPs that support mesh technology.
  • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN.

Kit Contents

  • ER706W-4G
  • Power Adapter
  • Installation Guide

Manuals & Datasheet


Technical


CategorySpecification
4G Network
  • Network Type: LTE FDD and TDD with 3G WCDMA fallback for EU and US bands
  • Carrier Aggregation: Multiple band combinations supported for EU and US regions
  • Frequency Speed: Downlink up to 300 Mbps, uplink up to 50 Mbps
  • SIM Type: 1 nano SIM
Security
  • DPI: Application control via deep packet inspection with updated application library
  • IDS and IPS: Signature based intrusion detection and prevention
  • Access Control: Source and destination IP based access control
  • Filtering: Web group filtering, URL filtering and web security
  • ARP Inspection: GARP packet sending, ARP scanning and IP MAC binding
  • Attack Defence: TCP, UDP and ICMP flood defence, TCP scan blocking and WAN ping blocking
Hardware Features
  • Interfaces: 1 × Gigabit SFP WAN or LAN port, 1 × Gigabit WAN port, 4 × Gigabit LAN or WAN ports
  • Network Media: UTP and STP cabling for 10BASE T, 100BASE TX and 1000BASE T up to 100 m
  • Buttons: Reset button
  • Power Supply: 12 V DC / 2 A power adapter
  • Wi‑Fi Frequency and Speed: 2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps
  • Flash: 128 MB NAND
  • DRAM: 512 MB DDR4
  • LED Indicators: System, WLAN, SFP, LTE signal, WAN and LAN status
  • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Antenna: Three detachable dual band Wi‑Fi antennas and two detachable LTE antennas
  • Mounting: Desktop or wall mounting
  • Max Power Consumption: 15.4 W (EU), 17.3 W (US)
Wireless Features
  • Wireless Technologies: OFDMA, MU MIMO, beamforming and airtime fairness
  • Mesh Support: With compatible EAP devices
  • Encryption: WPA, WPA2 and WPA3 personal and enterprise
  • Multiple SSIDs: Up to 16 total, 8 per radio
  • Guest Network: Supported
Performance
  • DPI Throughput: TCP 933 Mbps, UDP 927 Mbps
  • IPS Throughput: TCP 229 Mbps, UDP 188 Mbps
  • GRE Throughput: 545.3 Mbps unencrypted, 282.6 Mbps encrypted
  • WireGuard VPN Throughput: 387.7 Mbps
  • Concurrent Sessions: 150,000
  • New Sessions per Second: 5,100
  • NAT Throughput: Up to 949 Mbps depending on connection type
  • IPsec VPN Throughput: Up to 670.5 Mbps depending on encryption
  • OpenVPN Throughput: 115.5 Mbps
  • SSL VPN Throughput: 122.5 Mbps
Basic Functions
  • WAN Types: Static IP, dynamic IP, PPPoE, PPTP and L2TP
  • MAC Clone: WAN MAC address modification
  • DHCP: Server, DHCPv6 PD server, options customisation, address reservation, multi IP and multi net
  • SMS: Receive and send SMS
  • IPv6: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 tunnel and pass through
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2 and v3 proxy, custom and bridge modes
Advanced Features
  • Access Control: IP, port, protocol and domain name filtering
  • Routing: Static routing, policy routing, RIP and OSPF
  • Bandwidth Control: IP based bandwidth control
  • Load Balance: Intelligent load balancing, application routing, link backup and online detection
  • NAT: One to one NAT, multi net NAT, virtual server, port triggering, DMZ, ALG and UPnP
  • Session Limit: IP based session limit
  • SD WAN: Supported in controller mode
VPN
  • SSL VPN: Up to 50 tunnels
  • IPsec VPN: Up to 100 tunnels with LAN to LAN and client to LAN support
  • PPTP and L2TP VPN: Server and client support with up to 50 tunnels
  • OpenVPN: Server and client support with up to 55 tunnels
  • WireGuard VPN: Up to 20 tunnels
  • GRE VPN: Supported in standalone mode
Authentication
  • Web Authentication: Password, hotspot, voucher, SMS, Radius, LDAP and external portal support
Management
  • Omada App and cloud, hardware and software controller support
  • Zero Touch Provisioning supported
  • Web and remote management
  • SNMP v1, v2c and v3
  • CLI support in standalone mode
  • Syslog, diagnostics, port mirroring and scheduled reboot
  • Automatic discovery, unified configuration, monitoring and alerts
Others
  • Certifications: CE, FCC, RoHS
  • Package contents: ER706W 4G gateway, power adapter and installation guide
  • System compatibility: Windows, macOS, NetWare, UNIX and Linux
  • Operating temperature: 0–40 °C
  • Storage temperature: -40–70 °C
  • Operating humidity: 10–90% RH non condensing
  • Storage humidity: 5–90% RH non condensing

Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway

  • Brand: TP-Link
  • Product Code: ER706W-4G
  • Availability:  In Stock
