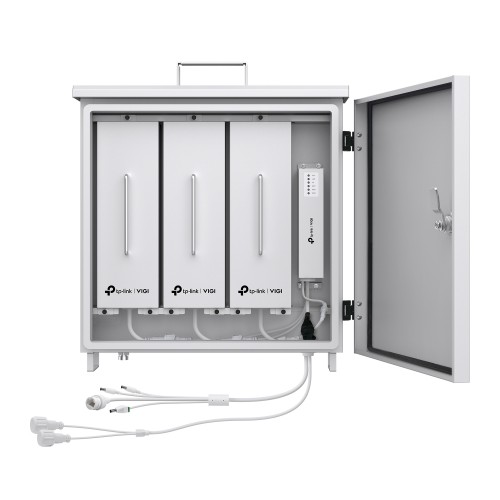

The VIGI PS90 is a solar system controller designed to provide reliable, off-grid power for VIGI security equipment. It features a 93.6Ah/10.95V automotive-grade lithium battery, with each modular battery providing 31.2Ah of capacity.
The integrated MPPT charging controller optimises solar energy collection and can increase charging efficiency by up to 20% compared with traditional PWM controllers. Independent protection circuits help protect each battery and maintain operation if an individual battery fails.
Intelligent auxiliary heating helps the battery operate in extreme cold, with the system supporting charging down to -30°C and discharging down to -30°C when auxiliary heating is enabled. Remote monitoring and management are available through the VIGI app or VIGI Cloud VMS.

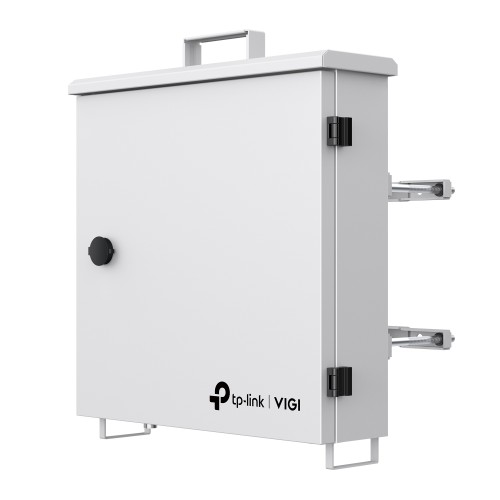

The PS90 is housed in a robust IP66 weatherproof enclosure, making it suitable for demanding outdoor installations. The enclosure is constructed from galvanised steel with corrosion-resistant powder coating.
Key Features
- 93.6Ah / 10.95V lithium battery capacity
- Automotive-grade lithium battery
- Modular 31.2Ah batteries
- MPPT charging controller
- Up to 20% improved charging efficiency compared with PWM
- Independent battery protection circuits
- Intelligent auxiliary battery heating
- More than 500 charge/discharge cycles
- Up to 99% discharge efficiency
- Remote management via VIGI App and VIGI Cloud VMS
- Remote battery monitoring and power statistics
- Low-battery and event notifications
- Remote firmware updates and reboot
- Over-discharge and high/low-temperature protection
- IP66 weatherproof enclosure
- 1 × 10/100 Mbps RJ45 network port
- 3 × DC power outputs
- Operating temperature -30°C to 60°C with intelligent heating

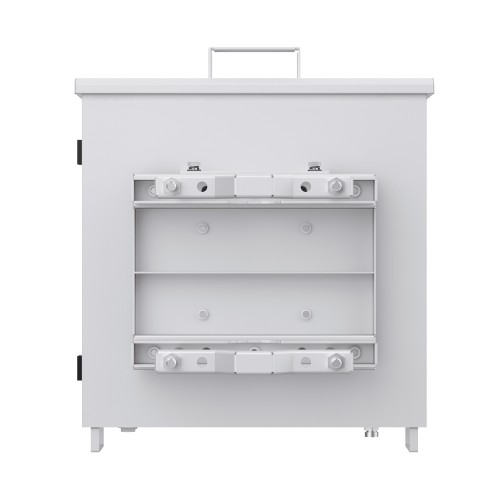

- Compatible with poles from 80–160mm diameter
- Suitable for outdoor and off-grid VIGI security installations
Kit Contents
- VIGI PS90 Solar System Controller
- Installation Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Extension Cable
- Box Key
Manuals & Datasheets
Technical
| BATTERY | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah(Max), 31.2Ah(Per Lithium Battery) |
| Voltage | 10.95V |
| Max. Output Voltage | 12.6V |
| Life | More than 500 cycles |
| Dimensions (L x W x H) | 9.4 x 2.9 x 2.8in (240 x 74 x 72mm) (Per Lithium Battery) |
| Charging Condition | 0°C ~ 45°C -30°C ~ 45°C (With intelligent auxiliary heating) |
| Discharging Condition | -20°C ~ 60°C -30°C ~ 60°C (With intelligent auxiliary heating) |
| HARDWARE | |
| Interface |
|
| Indicator LED | Quantity: 6 (1 x SYS Indicator, 1 x LAN Indicator, 1 x PV Indicator, 3 x BAT Indicator) Color: Blue |
| SOFTWARE FEATURES | |
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Over-discharge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Intelligent Auxiliary Heating Control | -30°C ~ 5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHER | |
| Certification | CB, PSE (Battery) CE, FCC, VCCI, IC, IP66 |
| Package Content |
|
| Box Dimensions (W x D x H) | 18.9 x 16.8 x 6.4in (481 x 426 x 163mm) |

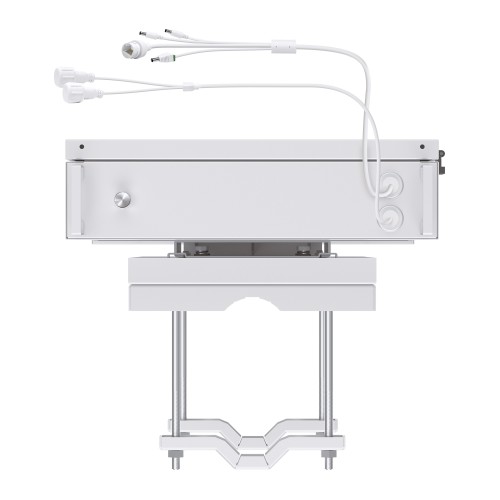

| Compatible Pole Diameter | Ø3.1 - 6.3in (Ø80 - 160mm) |
| Weight | Product Weight: 16.5 kg Package Weight: 24 kg |
| Environment | Operating Temperature: -30°C ~ 60°C (With intelligent auxiliary heating) Operating Humidity: 10% ~ 90% RH, Non-condensing |
