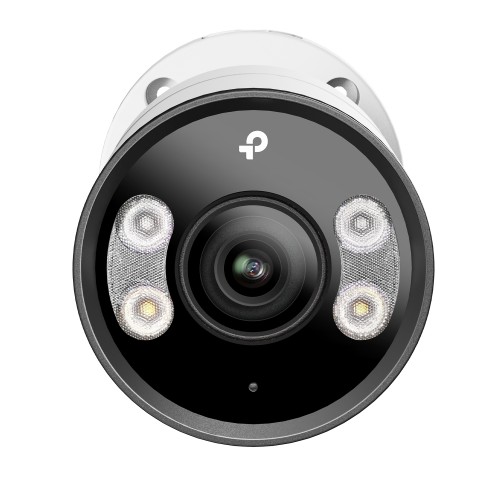

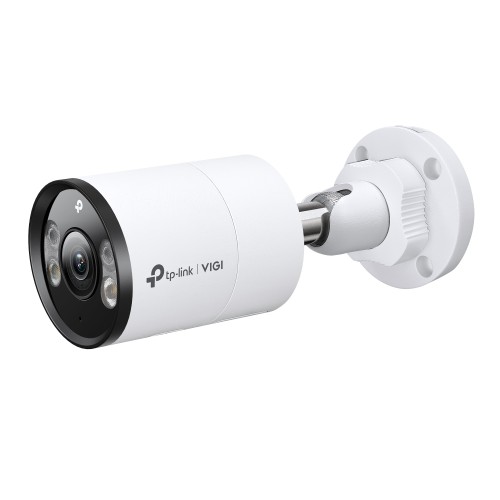

TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera
Click Image for Gallery
TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera

The VIGI InSight S355 (2.8mm) is a professional 5MP outdoor full-colour bullet camera designed to provide wide-area surveillance with an expansive 111.4° horizontal field of view. Combining high-definition imaging with intelligent people and vehicle analytics, it enables faster event searches and more accurate monitoring while helping to minimise false notifications.

Engineered for reliable performance around the clock, the InSight S355 features 24-hour full-colour monitoring, advanced human and vehicle classification, and smart image enhancement technologies including True WDR, Smart IR and 3D DNR. Two-way audio, active defence functions, H.265+ compression and an IP67-rated weatherproof design make it an ideal solution for protecting commercial buildings, retail sites, business premises and outdoor environments.


Features

  • 5MP Super-High Definition and 24h Full-Colour
  • People & Vehicle Analytics
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology


Kit Contents

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Manuals & Datasheet


Technical

CAMERA
Image SensorV1:
1/2.7” Progressive Scan CMOS


V1.20:
1/2.65” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/Scheduled/Auto
LENS
TypeFixed Focal Lens
Focal Length2.8/4/6mm
ApertureF1.6
FOVV1:
  • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
  • 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
  • 6 mm: Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2°
V1.20:
  • 2.8 mm: Horizontal FOV: 108.3°, Vertical FOV: 59.9°, Diagonal FOV: 126.8°
Lens MountM12*P 0.5
DORI Distance
  • 2.8mm
    Detect: 64m (210ft)
    Observe: 27m (89ft)
    Recognise: 13m (43ft)
    Identify: 6m (20ft)
  • 4mm
    Detect: 80m (262ft)
    Observe: 33m (108ft)
    Recognise: 16m (52ft)
    Identify: 6m (20ft)
  • 6 mm
    Detect: 120m (394ft)
    Observe: 50m (164ft)
    Recognize: 24m (79ft)
    Identify: 12m (39ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
Illuminator Type
  • 2 x IR LED
  • 2 x White LED
IR LED
  • Quantity: 2
  • Range: 30m
  • Wavelength: 850nm
Illuminator Distance30m (98ft)
White LED
  • Quantity: 2
  • Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2880x1620
Main Stream
  • Frame Rate:
    50Hz: 1fps, 5fps, 10fps 15fps, 20fps, 25fps
    60Hz: 1fps, 5fps, 10fps 15fps, 20fps, 25fps, 30fps
  • Resolution:
    2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720
  • Note:
    If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
  • Frame Rate:
    50Hz: 1fps, 5fps, 10fps 15fps, 20fps, 25fps
    60Hz: 1fps, 5fps, 10fps 15fps, 20fps, 25fps, 30fps
  • Resolution:
    848x480, 704x576, 640x480, 640x360, 352x288, 320x240
  • Note:
    If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video Compression
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit Rate
  • Main Stream: 256Kbps to 8Mbps
  • Sub-Stream: 64Kbps to 512Kbps
Image Settings
  • Mirror
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White Balance
  • Prevent Overexposure to Infrared Light
  • HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR≥52dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64Kbps (G.711 alaw)
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP,
RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIFYes
APIONVIF (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
  • Google Chrome® 57 and above
  • Firefox® 52 and above
  • Safari® 11 and above
  • Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication
ALARM AND EVENT MANAGEMENT
Smart Event
  • Intrusion Detection
  • Line-Crossing Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Object Abandoned Detection
  • Object Removal Detection
  • Loitering Detection
  • People Detection
  • Vehicle Detection
  • Abnormal Sound Detection
  • Scene Change Detection
Basic Event
  • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
  • Video Tampering Detection
  • Exception (Illegal Login)
Alarm Linkage
  • Memory Card Video Recording
  • Upload to FTP server
  • Push Notifications
  • Active Defence-Sound Alarm
  • Active Defence-Light Alarm
  • Email Alarm
  • Send to Alarm Server
DEEP LEARNING FUNCTION
People & Vehicle AnalysisSearch and filter to people or vehicle of interest based on many different attributes,
making post-event search faster and easier.
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4ft (5m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
EnvironmentOperating Temperature: -30 ~ 60°C
Storage Temperature: -40 ~ 60°C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Content
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
MaterialMetal
Net Weight0.525Kg
Power Supply
  • 12V DC ± 5%, Max. 10.5W, 5.5mm Coaxial Power Plug
  • PoE: 802.3af/at, class 0, Max. 11.5W
ProtectionIP67
Dimensions (L x W x H)7.2 x 2.9 x 2.9in (184 x 74 x 74mm)
CertificationCE, NTRA, VCCI, KC, BSMI, FCC, IC

TP-Link InSight S355 (2.8mm) VIGI 5MP Outdoor Full-Colour Bullet Network Camera

  • Brand: TP-Link
  • Product Code: S355-2.8
  • Availability:  In Stock
