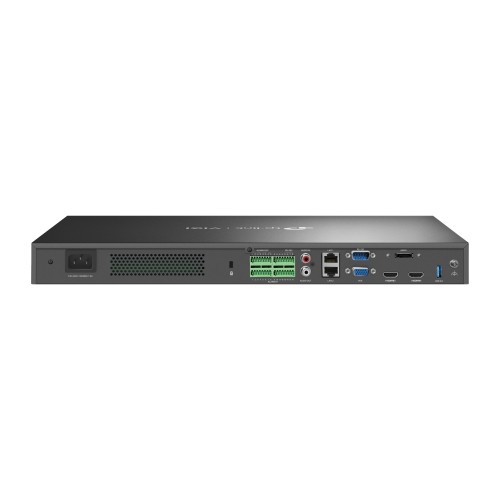

VIGI NVR4064H
The VIGI NVR4064H is a professional 64-channel network video recorder designed for large-scale surveillance systems. It supports 64-channel live view, 4K HDMI output and up to 320 Mbps incoming and outgoing bandwidth, providing smooth video management for demanding installations.
The NVR supports up to 16-channel synchronous playback and can decode up to 16 channels at 2MP or 8 channels at 4MP. H.265+ compression helps reduce storage requirements and bandwidth usage while maintaining video quality.
Four SATA interfaces provide extensive storage capacity, with support for up to 16TB per HDD. The NVR also features dual Gigabit Ethernet ports, two HDMI outputs and one VGA output for flexible connectivity and monitoring.
Designed for professional installations, the NVR supports ONVIF compatibility, remote monitoring via Android and iOS devices, and a range of smart detection and alarm functions when used with compatible cameras.
Key Features
- 64-channel network video input
- 64-channel live view
- 4K HDMI video output
- Up to 16-channel synchronous playback
- Up to 320 Mbps incoming and outgoing bandwidth
- Up to 16-ch @ 2MP / 8-ch @ 4MP decoding
- Supports recording resolutions up to 8MP (4K)
- H.265+ / H.265 / H.264+ / H.264 video compression
- 4 × SATA interfaces
- Supports up to 16TB per HDD
- 2 × Gigabit Ethernet ports
- 2 × HDMI and 1 × VGA video outputs
- Multi-view display supporting up to 64 views
- 16 alarm inputs and 4 alarm outputs
- Motion, intrusion, line-crossing and other smart detection functions
- Remote monitoring via Android and iOS
- ONVIF Profile S compatibility
- One-click system initialisation for simplified setup
- Rack-mountable design
- HDD not included
Kit Contents
- VIGI Network Video Recorder
- Mouse
- Installation Guide
- Power Cord
- HDD Power Cables
- HDD Data Cables
- Terminal Blocks
- Mounting Brackets
- Screws
- Rubber Feet
Note: HDDs are not included. A rack tray is also not included and may be required when rack mounting due to the weight of the unit.
Manuals & Datasheets
Technical
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260Mbps Extended Bandwidth Mode: 320Mbps |
| Outgoing Bandwidth | Default: 180Mbps Extended Bandwidth Mode: 320Mbps |
| HDMI Output Resolution |
|
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode |
precedence and function as the primary output. |
| Multi-View Display | 1,4,6,8,9,16,25,32,36,49,64 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability |
|
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1 x AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| HARD DISK | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| GENERAL | |
| Package Content |
|
| Dimensions (W x D x H) | 17.32 x 12.99 x 1.73in (440 x 330 x 44mm) |
| Net Weight | 4.0Kg |
| Gross Weight | 5.0Kg |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Max. Power Consumption | 6.95 W (Without Disk) 48.38 W (With Disk) |
| Environment |
|
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
