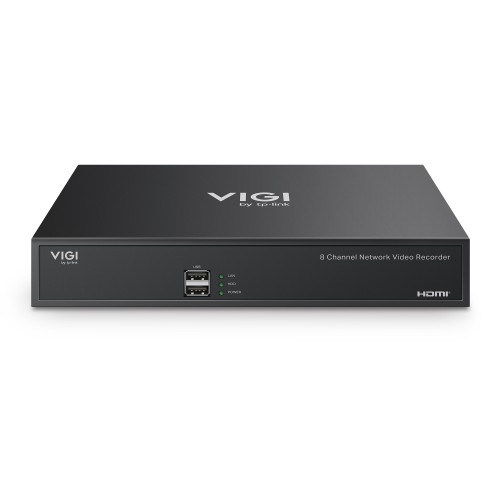

The VIGI NVR1008H is an 8-channel network video recorder designed for reliable recording and easy management of IP surveillance cameras. It supports 8-channel live view, 4K HDMI output and up to 80 Mbps incoming bandwidth, making it suitable for small and medium-sized security installations.
The NVR supports 8-channel synchronous playback and recording resolutions up to 8MP. H.265+ compression helps reduce storage requirements and bandwidth usage while maintaining high-quality video.
A single SATA interface supports an HDD of up to 16TB, while HDMI and VGA outputs can be used simultaneously. Remote monitoring is supported through Android and iOS devices, with ONVIF Profile S/T compatibility for integration with compatible cameras.
Key Features
- 8-channel IP video input
- 8-channel live view
- 4K HDMI video output
- 8-channel synchronous playback
- 80 Mbps incoming bandwidth
- 60 Mbps outgoing bandwidth
- Supports recording up to 8MP
- Up to 8-ch @ 2MP / 4-ch @ 4MP decoding at 25fps
- H.265+ / H.265 / H.264+ / H.264 video compression
- 1 × SATA interface
- Supports up to 16TB HDD

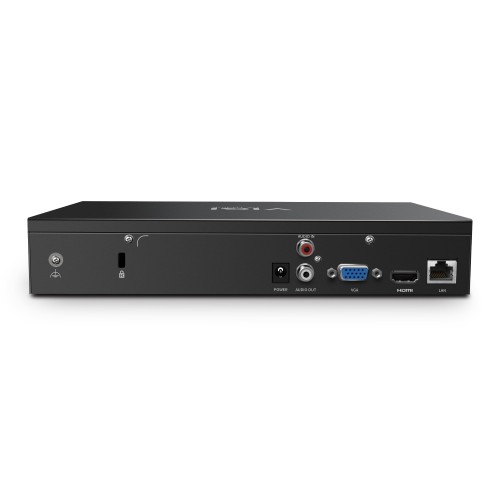

- HDMI and VGA simultaneous output
- Multi-view display with 1/4/6/8/9-screen options
- Motion, intrusion and line-crossing detection
- Human and vehicle detection
- Region entry/exit and loitering detection
- Abandoned/removed object detection
- Abnormal sound and scene-change detection
- Remote monitoring via Android and iOS
- ONVIF Profile S/T compatibility
- One-step system initialisation
- 1 × 10/100 Mbps Ethernet port
- 2 × USB 2.0 ports
- 1 × audio input and 1 × audio output
- Compact design suitable for desktop installation
Kit Contents
- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Rubber Feet
- Quick Installation Guide
Note: The HDD is not included and must be purchased separately for recording.
Manuals & Datasheets
Technical
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840 x 2160/30Hz, 1920 x 1080/60Hz, 1680 x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920 x 1080/60Hz, 1680 x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8-Channel |
| Capability |
|
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP, LLDP, FTP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 x USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1 x DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interface |
| Capacity | Up to 16 TB Capacity for Each HDD |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| GENERAL | |
| Package Content |
|
| Dimensions (W x D x H) | 9.7 x 5.8 x 1.7in (246.2 x 148.5 x 42.6mm) |
| Net Weight | 0.65Kg |
| Gross Weight | 1.00Kg |
| Power Supply | 12V DC/1.5A |
| Max. Power Consumption | 3.78 W (without disk) |
| Environment |
|
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, HDMI |
