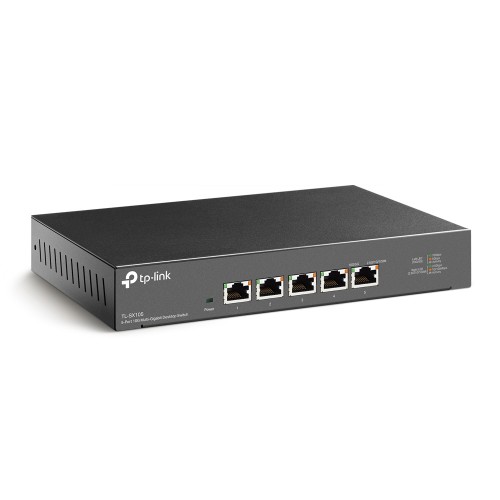

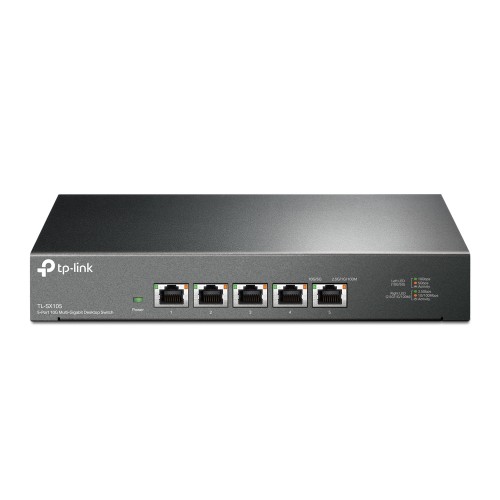

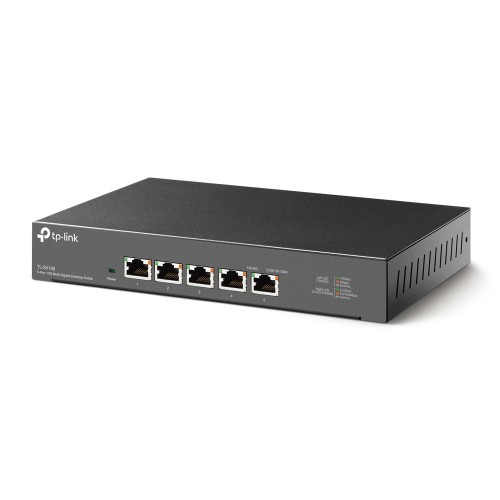

The TP-Link TL-SX105 5-Port 10G Desktop Switch is a powerful multi-gigabit networking solution designed for high-performance home and business environments. Equipped with five 10G RJ45 ports, it delivers ultra-fast network speeds for bandwidth-intensive applications such as 4K/8K video editing, large file transfers, NAS storage, gaming, and high-speed workstation connectivity.

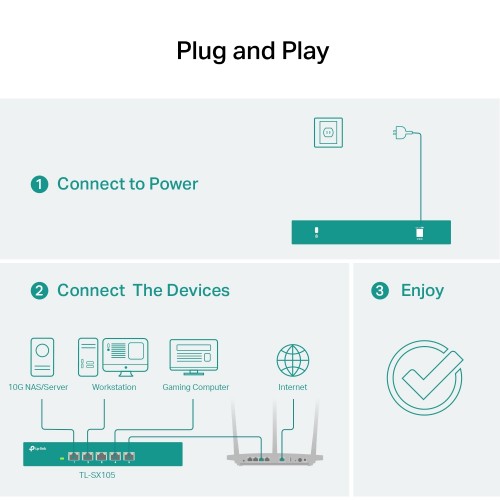

Designed for simplicity, the TL-SX105 features plug-and-play operation, allowing you to expand your network instantly without any software installation or configuration. Simply connect your devices and enjoy seamless 10GbE performance across your network.
Built with a durable steel desktop enclosure, the TL-SX105 offers reliable operation and long-lasting performance. Its compact form factor makes it an ideal choice for offices, creative studios, server rooms, and advanced home networking setups where high-speed connectivity is essential.
Features
- 5 x 10G Multi-Gigabit Ports Delivers high-speed 10G networking with up to 100 Gbps switching capacity for bandwidth-intensive applications.

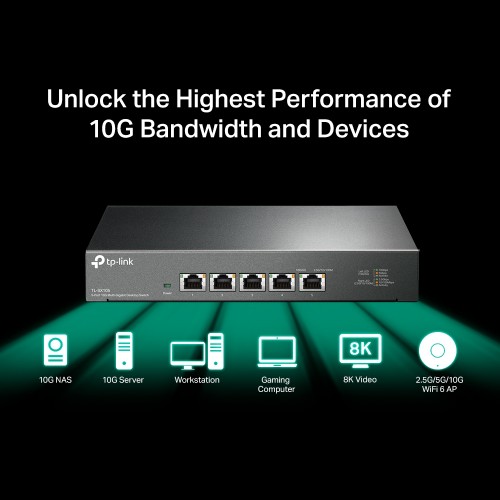

- Ultra-Fast Network Performance Ideal for connecting 10G NAS devices, servers, gaming PCs, workstations, Wi-Fi 6/6E access points, and high-resolution media systems.
- Versatile Deployment Perfect for home networks, small offices, creative workstations, content creation, and low-latency gaming environments.
- Multi-Gig Compatibility Supports automatic negotiation across 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps speeds for seamless integration with existing devices.

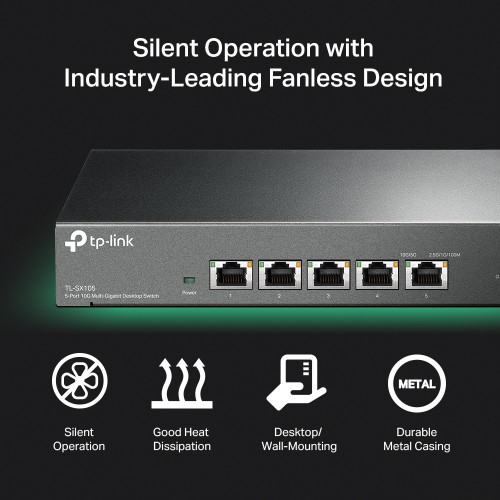

- Fanless Silent Design Operates quietly without a fan, making it suitable for noise-sensitive home and office environments.
- Durable Metal Housing Features a robust metal chassis with desktop or wall-mount installation options and efficient heat dissipation.
- Plug-and-Play Setup Simple deployment with no software configuration or technical expertise required.
Kit Contents
- 5-Port 10G Multi-Gigabit Desktop/Rack-mount Switch TL-SX105
- Power Cord
- Installation Guide
- Rubber Feet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | 5 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |

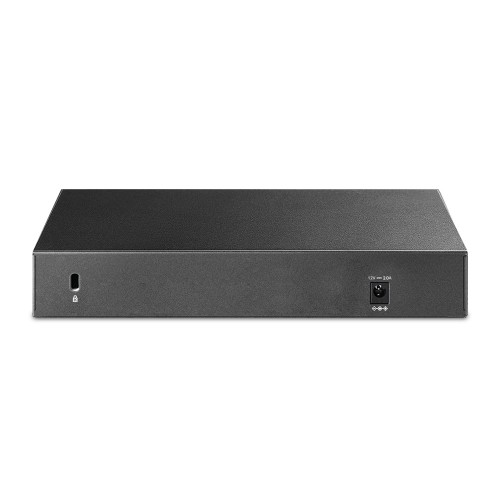

| Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED | System Power: 1 Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions (W x D x H) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) |
| Max. Power Consumption | 21.4 W |
| PERFORMANCE | |
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| Packet Buffer Memory | 2 Mb |
| MAC Address Table | 32 K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | 802.3X Flow Control 802.1p/DSCP QoS |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
