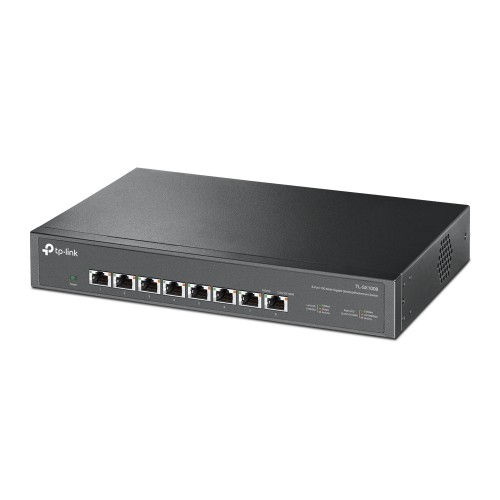

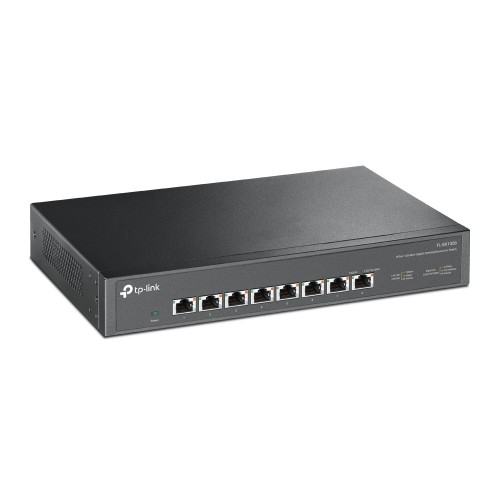

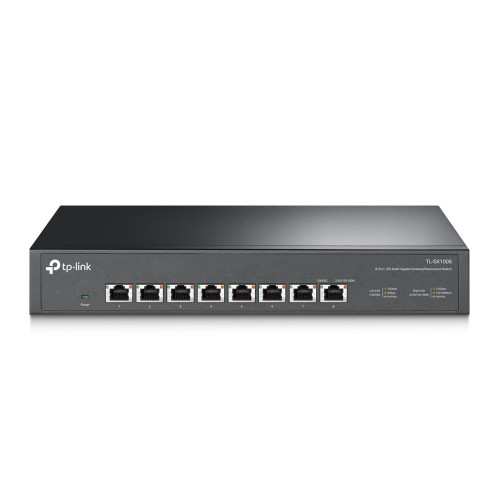

The TP-Link TL-SX1008 is a high-performance 8-Port 10G Multi-Gigabit Switch designed to deliver ultra-fast network connectivity for demanding business and professional environments. Featuring 8 x 10G RJ45 ports, it enables high-speed connections for servers, NAS storage, workstations, access points, and other bandwidth-intensive devices.
Housed in a durable 1U 13-inch rack-mountable steel chassis, the TL-SX1008 is built for reliable operation in network cabinets, server rooms, and professional installations. Its unmanaged design supports plug-and-play deployment, allowing you to expand your network quickly without the need for software installation or configuration.
Ideal for organisations upgrading to Multi-Gig and 10G networking, the TL-SX1008 provides a simple, cost-effective solution for boosting network performance while maintaining compatibility with existing infrastructure.
Features
- 8 x 10G Multi-Gigabit Ports - Delivers ultra-fast wired networking with eight 10 Gigabit ports and up to 160 Gbps switching capacity for demanding applications and high-bandwidth devices.

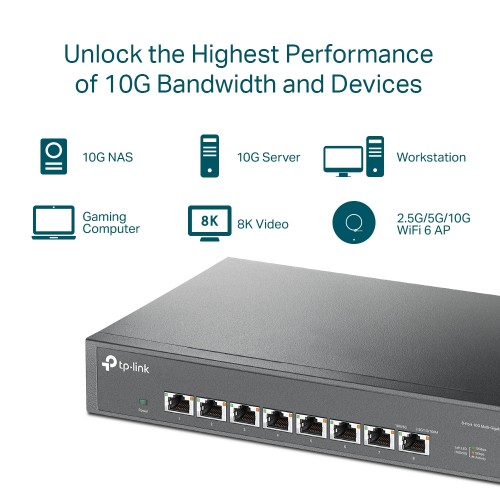

- High-Speed Connectivity - Ideal for connecting 10G NAS systems, servers, gaming PCs, PCIe network adapters, Wi-Fi 6/6E access points, and 8K media devices.
- Versatile Deployment - Designed for business environments, home offices, creative workstations, LAN gaming setups, and multimedia networks that require reliable high-speed performance.
- Multi-Gig Compatibility - Supports 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps speeds with automatic negotiation for seamless integration with existing network equipment.

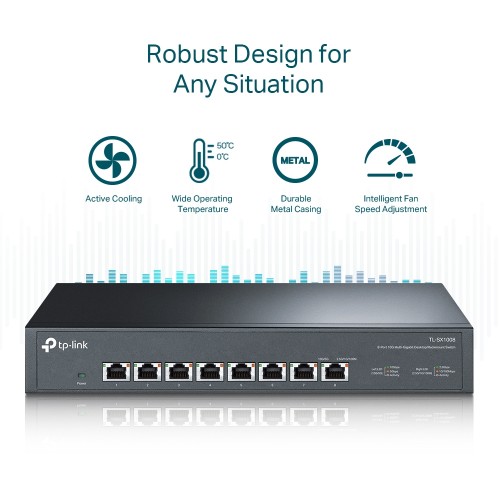

- Robust Metal Housing - Durable metal construction with an efficient heat-dissipation design supports reliable operation across a wide 0°C to 50°C temperature range.
- Plug-and-Play Installation - Simple setup with no software configuration required, enabling rapid deployment straight out of the box.
Kit Contents
- 1 x TL-SX1008 8-Port 10G Desktop/Rack-mount Switch
- 1 x Power Cord
- 1 x Rackmount Kit
- 1 x Installation Guide
- 4 x Rubber Feet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | 8 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | 1 (Intelligent fan speed adjustment) |
| Power Supply | 100 - 240 VAC, 50/60 Hz, 0.8A |
| LED | System Power: 1 Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Max. Power Consumption | 31.2 W |
| PERFORMANCE | |
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.0 Mpps |
| Packet Buffer Memory | 2 Mb |
| MAC Address Table | 32 K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | 802.3X Flow Control 802.1p/DSCP QoS |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
