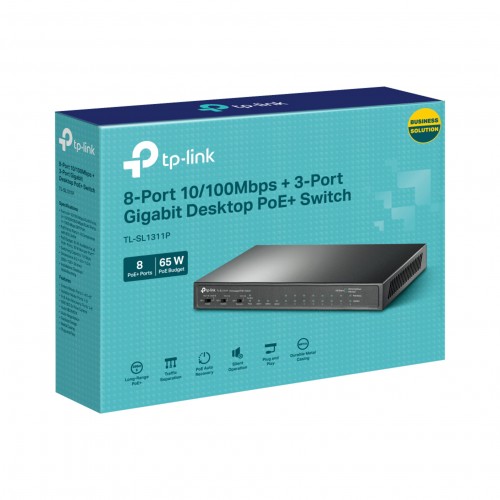

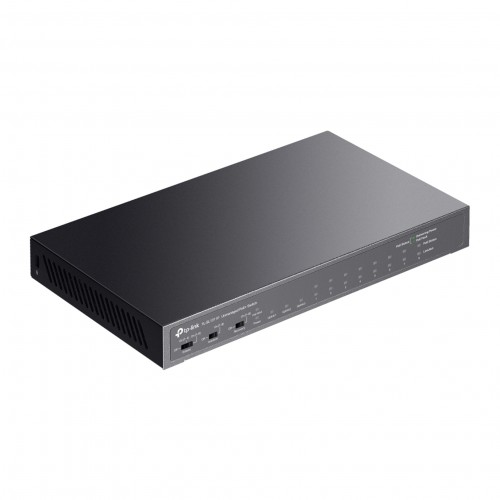

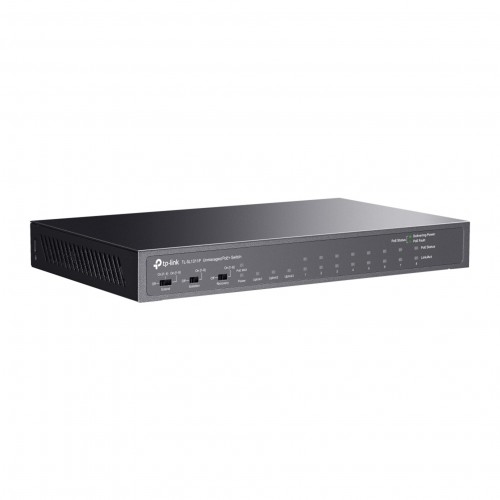

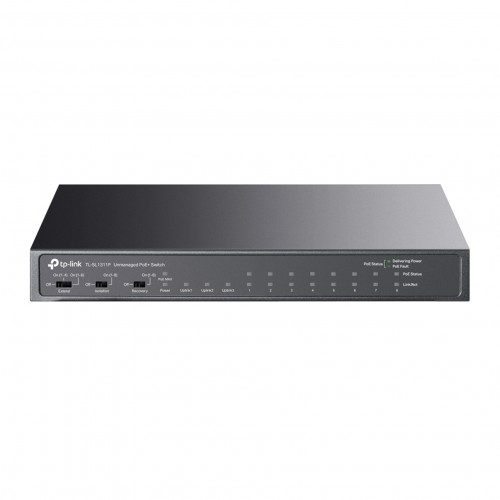

The TP-Link TL-SL1311P is a high-performance unmanaged PoE+ switch designed for small business networks, surveillance systems, and IP device deployments. Featuring 8 Fast Ethernet PoE+ ports, 2 Gigabit RJ45 uplink ports, and 1 Gigabit SFP port, it provides flexible connectivity while delivering both data and power over a single cable to compatible devices.
With a 65W total PoE budget and up to 30W per PoE port, the TL-SL1311P is ideal for powering IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compliant devices. The switch also includes Extend Mode, enabling power and data transmission distances of up to 250 metres, making it particularly suitable for large-scale CCTV installations.
For enhanced network reliability and security, the TL-SL1311P features Isolation Mode to separate client traffic and reduce network interference, as well as PoE Auto Recovery, which automatically reboots unresponsive PoE-powered devices to minimise downtime. Its fan-less, metal housing ensures silent operation and dependable performance, while plug-and-play deployment allows installation without any configuration.
Perfect for business, retail, office, and surveillance environments, the TL-SL1311P delivers a simple and cost-effective way to expand network coverage while powering connected devices from a single switch.
Features
- 8 x 10/100 Mbps RJ45 Ports, 2 x Gigabit RJ45 Ports, 1 x Gigabit SFP Port
- 8 x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
Kit Contents
- TL-SL1311P
- Power Adapter
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 8 x 10/100 Mbps 802.3af/at PoE+ Ports, 2 x Gigabit RJ45 Ports, 1 x Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1 - 8 Power Supply: 65 W |
| Dimensions (W x D x H) | 8.2 x 4.9 x 1.0in (209 x 126 x 26mm) |
| Max. Power Consumption | 5.61 W (220 V/50 Hz. no PD connected) 77.32 W (110 V/50 Hz. with 65 W PD connected) |
| Max. Heat Dissipation | 19.13 BTU/h (no PD connected) 263.7 BTU/h (with 65 W PD connected) |
| PERFORMANCE | |
| Packet Forwarding Rate | 5.6544 Mpps |
| Backup Bandwidth | 7.2Gbps |
| MAC Address Table | 2K |
| Jumbo Frame | 16KB |
| Switching Capacity | 7.6 Gbps |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
