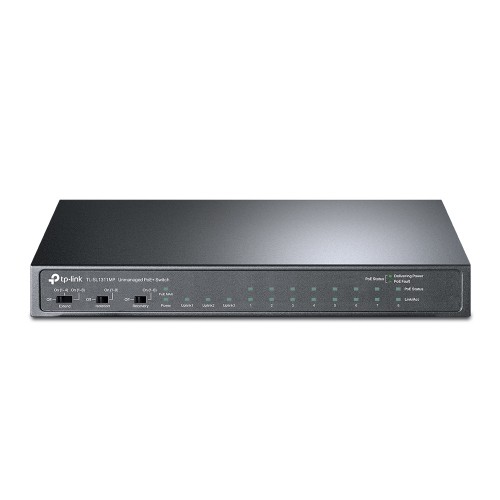

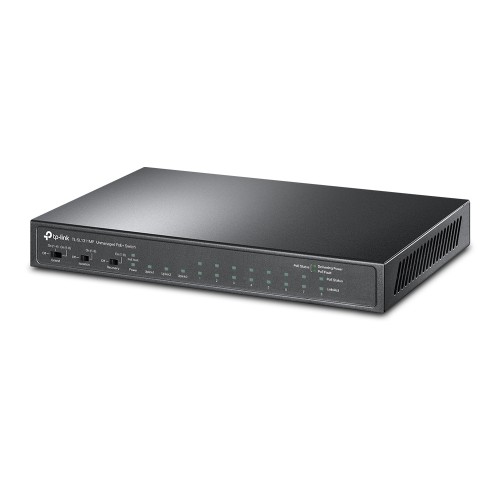

The TP-Link TL-SL1311MP is a robust unmanaged PoE+ switch designed to simplify network expansion while providing reliable power delivery for connected devices. Featuring 8 Fast Ethernet PoE+ ports, 2 Gigabit RJ45 uplink ports, and 1 Gigabit SFP uplink slot, it offers an ideal solution for IP surveillance systems, wireless access points, VoIP phones, and other PoE-powered devices. With a generous 124W PoE power budget and support for IEEE 802.3af/at standards, the TL-SL1311MP delivers both power and data through a single Ethernet cable, reducing installation costs and deployment complexity.
Its intelligent power management helps ensure stable operation across multiple connected devices. The switch includes Extend Mode, allowing PoE data and power transmission distances of up to 250 metres, making it particularly suited to large-scale CCTV and security installations. Isolation Mode enhances network security by separating client traffic, helping prevent snooping and reducing broadcast traffic. For improved reliability, PoE Auto Recovery automatically detects and reboots unresponsive PoE devices, minimising downtime and reducing maintenance requirements.
Housed in a durable desktop steel chassis, the TL-SL1311MP combines dependable performance with simple plug-and-play installation, requiring no configuration for fast deployment.
Features
- 8 PoE+ Fast Ethernet Ports with Gigabit Uplinks for connecting powered devices and high-speed network backbones.
- Power and Data Over a Single Cable with eight PoE+ ports for simplified installations.
- IEEE 802.3af/at Compatible for broad support of PoE-enabled devices such as IP cameras, access points, and VoIP phones.
- Up to 30W PoE Output Per Port to reliably power demanding network devices.
- 124W Total PoE Budget to support multiple PoE devices simultaneously.
- Extended PoE Range of Up to 250m in Extend Mode, ideal for long-distance surveillance deployments.
- One-Touch Isolation Mode separates client traffic to enhance security and network performance.
- Automatic PoE Recovery detects and reboots unresponsive powered devices to minimise downtime.
- Silent Fanless Operation delivers energy-efficient, noise-free performance in any environment.
Kit Contents
- TL-SL1311MP
- Power Adapter
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|

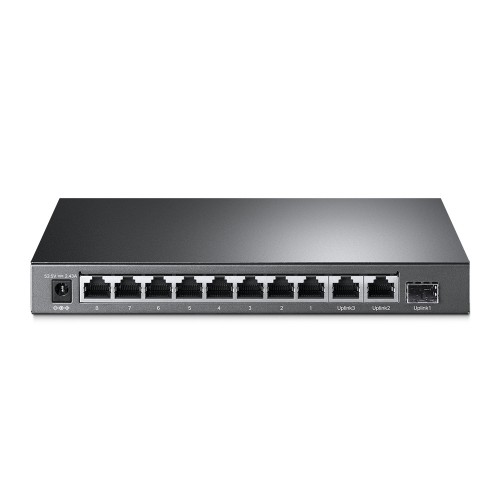

| Interface | 8 x 10/100 Mbps 802.3af/at PoE+ Ports, 2 x Gigabit RJ45 Ports, 1 x Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1 - 8 Power Supply: 124 W |
| Dimensions (W x D x H) | 8.2 x 4.9 x 1.0in (209 x 126 x 26mm) |
| Max. Power Consumption | 5.95 W (220/50 Hz. no PD connected) 140.92 W (220/50 Hz. with 124 W PD connected) |
| Max. Heat Dissipation | 20.29 BTU/h (no PD connected) 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
| PERFORMANCE | |
| Packet Forwarding Rate | 5.6544 Mpps |
| Backup Bandwidth | 7.2Gbps |
| MAC Address Table | 2K |
| Jumbo Frame | 16KB |
| Switching Capacity | 7.6 Gbps |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
