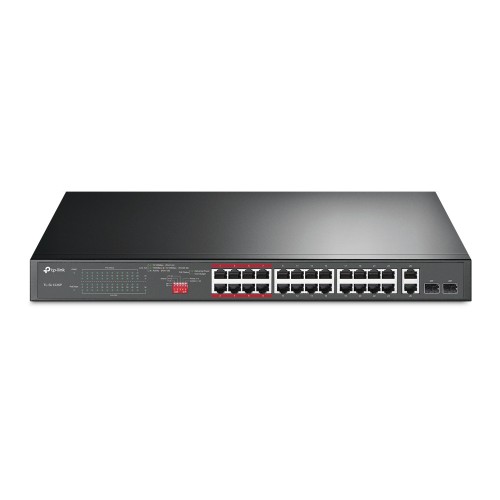

The TP-Link TL-SL1226P is a high-capacity unmanaged PoE+ switch designed for surveillance systems, business networks, and IP device deployments. Equipped with 24 Fast Ethernet PoE+ ports, 2 Gigabit RJ45 uplink ports, and 2 Combo Gigabit SFP slots, it provides flexible connectivity while delivering power and data through a single Ethernet cable. With a substantial 250W PoE power budget and support for up to 30W per PoE+ port, the TL-SL1226P can power a wide range of IEEE 802.3af/at compliant devices, including IP cameras, wireless access points, and VoIP phones.
Intelligent power management helps ensure stable operation by automatically allocating power across connected devices. Designed with surveillance applications in mind, Extend Mode enables PoE data and power transmission distances of up to 250 metres, making it ideal for deploying cameras across large sites without additional infrastructure. Priority Mode helps maintain reliable performance for critical devices by prioritising traffic on selected ports, while Isolation Mode separates client traffic to improve security and reduce network congestion.
Built in a durable metal housing and requiring no software configuration, the TL-SL1226P offers true plug-and-play deployment, allowing businesses to expand their network quickly and efficiently while benefiting from reliable PoE connectivity
Features

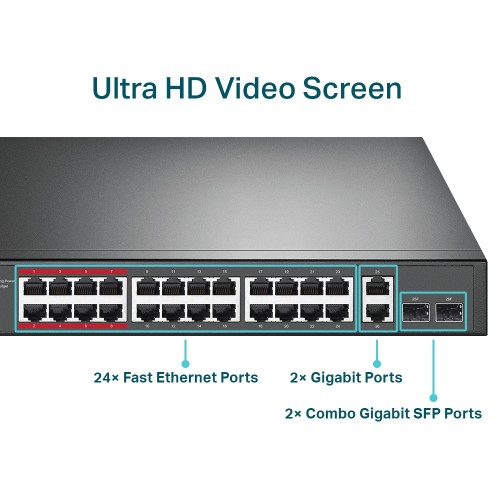

- 24 x 10/100Mbps PoE+ ports, 2 x Gigabit RJ45 uplink ports, and 2 x Combo Gigabit SFP slots for flexible network connectivity.

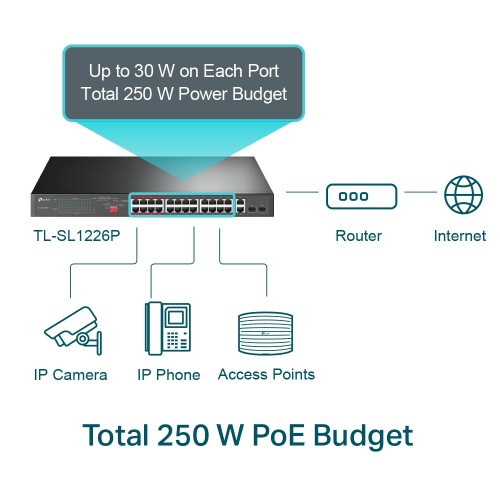

- 250W total PoE power budget with up to 30W per PoE+ port to support IP cameras, access points, and other PoE devices.

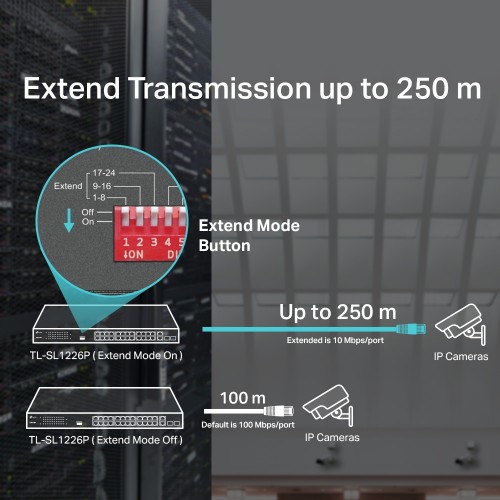

- Extend Mode supports PoE data and power transmission up to 250 metres, making it ideal for surveillance deployments.

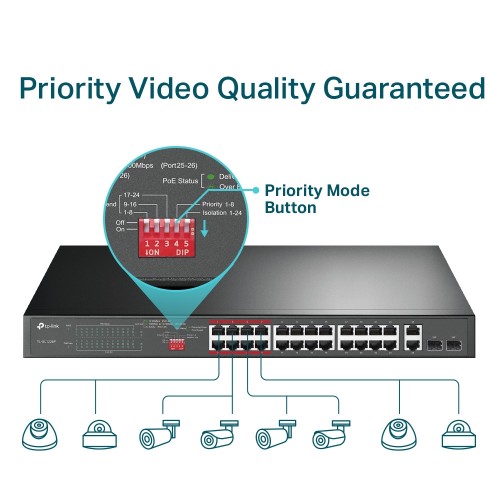

- Priority Mode prioritises ports 1 - 8 to help maintain reliable performance for bandwidth-sensitive applications such as video surveillance.
- Isolation Mode separates client traffic with a single click, improving network security and reducing interference.

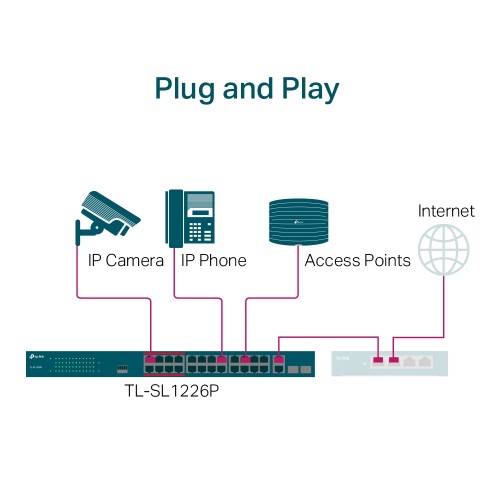

- Plug-and-play operation with no software configuration or installation required for quick and easy deployment.
Kit Contents
- TL-SL1226P
- Power Cable
- Installation Manual
- Two mounting brackets and the fittings
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 24 x PoE+ 10/100 Mbps RJ45 Ports 2 x 10/100/1000 Mbps RJ45 Ports 2 x Combo Gigabit SFP Slots |
| Network Media |
|
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 - Port 24 PoE Power Budget: 250 W |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7in (440 x 180 x 44mm) |
| Max. Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
| Max. Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Backup Bandwidth | 8.8Gbps |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 6.5472Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
