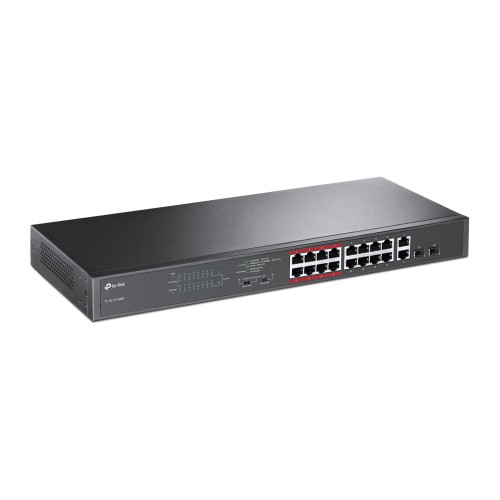

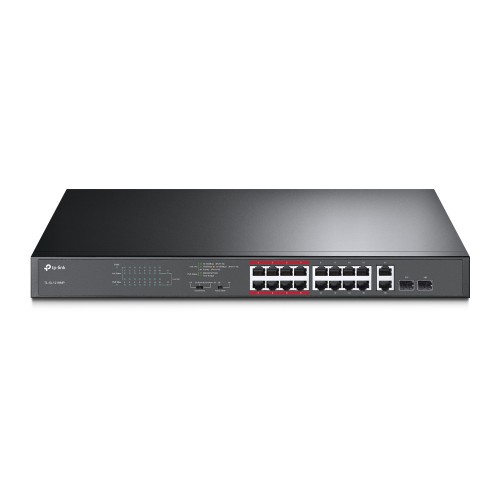

The TP-Link TL-SL1218MP is a high-performance unmanaged PoE+ switch designed for surveillance networks, small businesses, and commercial installations. Featuring 16 Fast Ethernet PoE+ ports, 2 Gigabit uplink ports, and 2 Combo Gigabit SFP slots, it provides flexible connectivity while delivering both power and data over a single Ethernet cable.
With a substantial PoE budget and advanced surveillance-focused features, the TL-SL1218MP simplifies the deployment of IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. Supporting up to 30W per PoE+ port and a total PoE power budget of up to 250W, the switch can power multiple devices simultaneously without requiring separate power supplies. Extend Mode enables PoE transmission distances of up to 250 metres, making it ideal for large-scale CCTV and remote device installations.
Priority Mode ensures critical video traffic receives precedence, while Isolation Mode enhances network security by separating client traffic with a single click. Designed for ease of use, the TL-SL1218MP requires no software installation or configuration. Its plug-and-play operation, rackmount form factor, and reliable unmanaged design make it an ideal solution for businesses seeking a straightforward and cost-effective PoE networking solution.
Features
- 16 PoE+ Fast Ethernet Ports with Gigabit Uplinks featuring 16 x 10/100Mbps PoE+ ports, 2 Gigabit RJ45 ports, and 2 Gigabit Combo SFP slots for flexible network connectivity.
- Long-Range PoE Transmission supports data and power delivery of up to 250 metres in Extend Mode, making it ideal for IP surveillance deployments.
- Priority Traffic Mode ensures critical video surveillance and other sensitive applications maintain stable performance by prioritising ports 1 to 8.
- High-Power PoE Capability provides up to 30W per PoE+ port with a total PoE power budget of 192W to support multiple powered devices.
- Plug-and-Play Deployment requires no software installation or configuration, allowing for quick and simple setup.
Kit Contents
- TL-SL1218MP
- Power Cable
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots |
| Network Media |
|
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
| Max. Power Consumption | 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) |
| Max. Heat Dissipation | 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected) |
| PERFORMANCE | |
| Backup Bandwidth | 7.2Gbps |
| MAC Address Table | 8K |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
