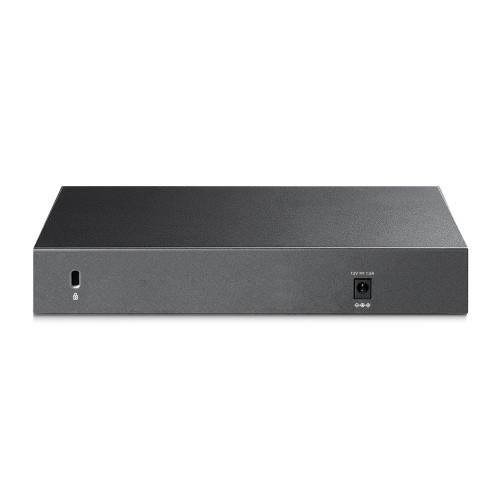

The TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch is a high-performance multi-gigabit networking solution designed to deliver faster wired connections for modern homes and businesses. Featuring eight 2.5Gbps RJ45 ports, it provides significantly higher bandwidth than standard Gigabit switches, making it ideal for high-speed broadband, NAS systems, gaming PCs, workstations, Wi-Fi 6/6E access points, and bandwidth-intensive applications.
With its plug-and-play design, the TL-SG108-M2 requires no configuration or software setup. Simply connect your devices and enjoy ultra-fast 2.5G networking straight out of the box. The switch is housed in a robust steel desktop enclosure, ensuring reliable performance and long-term durability in both professional and home networking environments.
Whether you're upgrading your office network, expanding a high-speed home setup, or maximising the performance of multi-gigabit devices, the TL-SG108-M2 provides a simple and cost-effective way to increase network capacity and throughput.
Features
- 8 x 2.5Gbps RJ45 Multi-Gigabit ports
- High-speed 2.5G connectivity for compatible devices
- Plug-and-play operation with no configuration required
- Durable steel desktop housing
- Ideal for NAS storage, gaming, content creation, and Wi-Fi 6/6E deployments
- Simple upgrade from traditional Gigabit networking
- Compact desktop design for easy installation
Kit Contents
- TL-SG108-M2
- Power Adapter
- Installation Guide
- Rubber Feet
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8 x 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 12 VDC / 1.5 A) |
| LED | System Power: 1 Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions (W x D x H) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) |
| Max. Power Consumption | 15.65 W |
| Max. Heat Dissipation | 53.40 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| Packet Buffer Memory | 1.5 Mb |
| MAC Address Table | 16 K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | 802.3X Flow Control 802.1p/DSCP QoS |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
