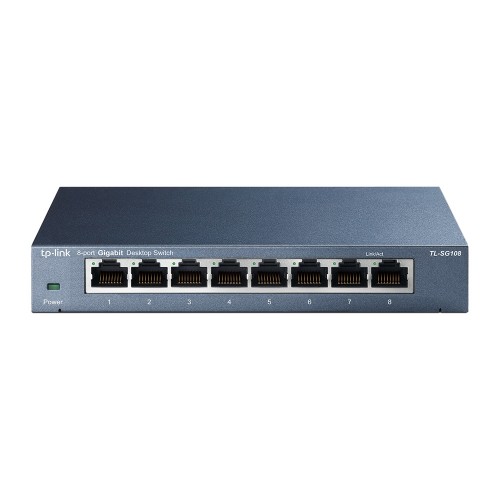

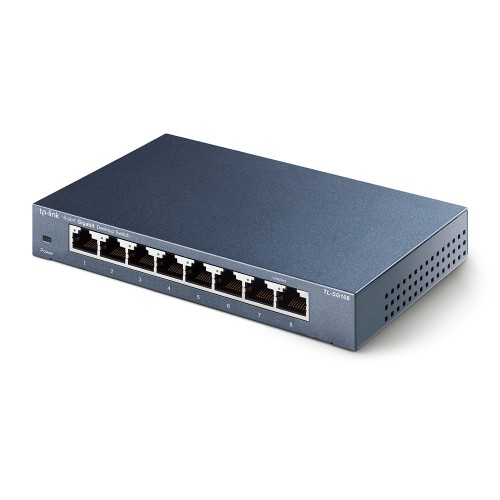

The TP-Link TL-SG108 8-Port Gigabit Desktop Network Switch provides a fast, reliable, and hassle-free way to expand your wired network. Featuring eight 10/100/1000Mbps Gigabit RJ45 ports, it delivers high-speed connectivity for computers, printers, NAS devices, smart TVs, IP cameras, gaming consoles, and other Ethernet-enabled devices.
Its plug-and-play design requires no configuration, making it ideal for both home and small business environments. Designed with a durable metal housing, the TL-SG108 offers dependable long-term performance while maintaining silent operation thanks to its fan-less design. Advanced features including 802.1p/DSCP QoS and IGMP Snooping help optimise network traffic for latency-sensitive applications such as VoIP, video streaming, and IPTV.
Green Ethernet technology automatically adjusts power consumption based on link status and cable length, reducing energy usage without impacting performance. Whether you're upgrading a home network or expanding office connectivity, the TL-SG108 delivers Gigabit speeds, reliable data transfers, and simple deployment in a compact desktop or wall-mountable form factor.
Features
- 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves the power up to 82%
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Kit Contents
- 1x TL-SG108
- 1x Power Adapter
- Installation Manual
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| Interface | 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
| Max. Power Consumption | 3.31W (220V/50Hz) |
| Max. Heat Dissipation | 11.29BTU/h |
| PERFORMANCE | |
| Buffer Size | 1.5Mb |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
