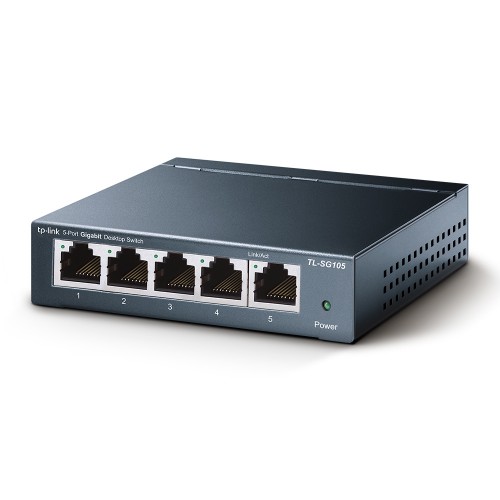

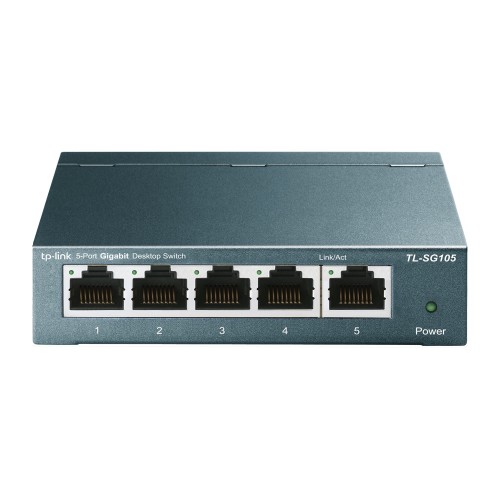

The TP-Link TL-SG105 is a compact and reliable 5-port Gigabit desktop switch designed to expand your wired network with fast, stable connectivity. Featuring five 10/100/1000Mbps RJ45 ports, it provides seamless connections for computers, smart TVs, gaming consoles, IP cameras, NAS devices, and other Ethernet-enabled equipment.
With its plug-and-play design, the switch can be deployed instantly without any software installation or configuration. Built with a durable metal housing and fanless design, the TL-SG105 delivers dependable performance while operating silently, making it ideal for both home and office environments.
It supports IEEE 802.3x flow control for reliable data transmission, while 802.1p/DSCP QoS and IGMP Snooping help prioritise traffic and optimise multimedia applications such as VoIP and IPTV.
TP-Link's energy-efficient Green Ethernet technology automatically adjusts power consumption based on link status and cable length, helping to reduce energy costs without sacrificing network performance. Its compact design supports both desktop placement and wall mounting, offering flexible installation options wherever additional Gigabit connectivity is needed.
Features

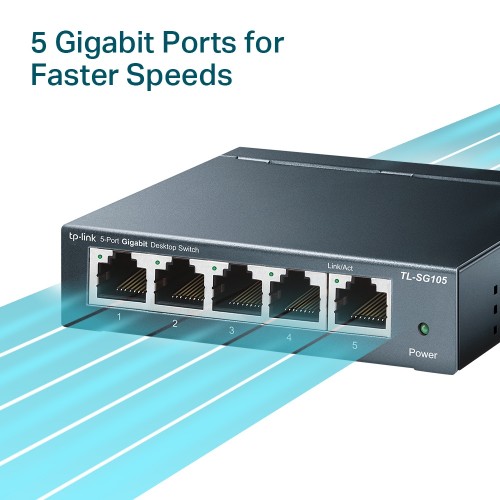

- 5 x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

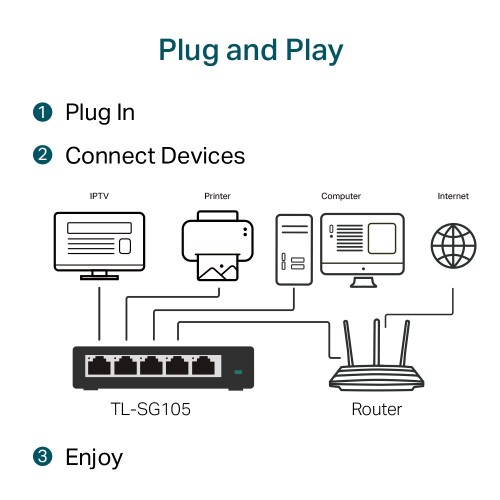

- Plug and play, no configuration needed

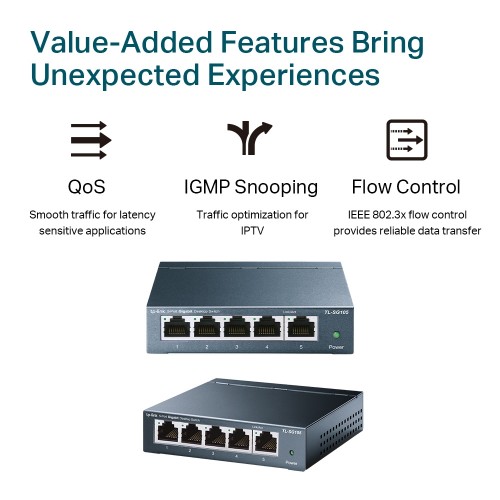

- Supports 802.1p/DSCP QoS and IGMP Snooping functions

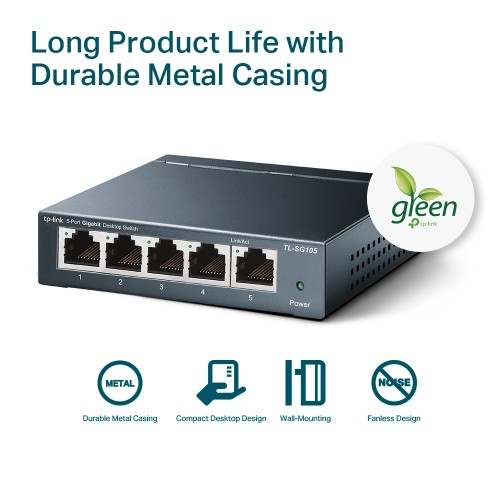

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
Kit Contents
- 1x TL-SG105
- 1x Power Adapter
- 1x Installation Manual
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5 x 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max. Power Consumption | 2.3 W (220 V/ 50 Hz) |
| Max. Heat Dissipation | 7.83 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
