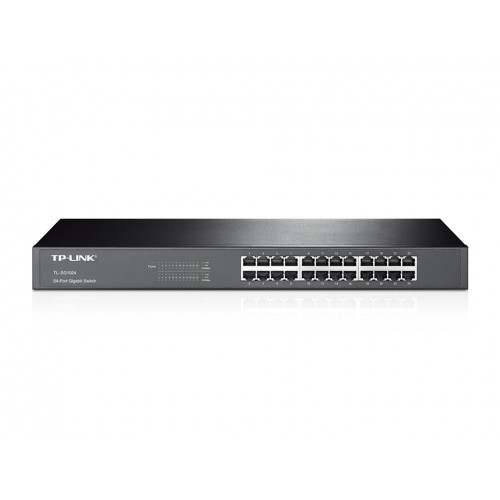

The TP-Link TL-SG1024 24-Port Gigabit Rack-mount Network Switch is a reliable and cost-effective solution for expanding wired network capacity in offices, server rooms, and business environments. Featuring 24 Gigabit RJ45 ports, it delivers high-speed connectivity for computers, servers, network storage, IP cameras, and other Ethernet-enabled devices, making it ideal for bandwidth-intensive applications and large file transfers.
Designed for simple deployment, the TL-SG1024 offers true plug-and-play operation with no configuration required. Auto-Negotiation and Auto-MDI/MDIX support automatically optimise network connections and eliminate the need for crossover cables. Its non-blocking switching architecture ensures full wire-speed forwarding, while IEEE 802.3x flow control helps maintain smooth and reliable data transmission across the network.
Built into a durable 19-inch rack-mountable steel chassis, the TL-SG1024 is designed for long-term reliability in professional networking environments. TP-Link's energy-efficient technology automatically adjusts power consumption based on link status, helping to reduce operating costs while maintaining excellent network performance.
Features
- 24 x 10/100/1000Mbps Gigabit RJ45 ports
- Standard 19-inch rack-mountable steel case
- Plug-and-play operation with no configuration required
- Auto-Negotiation and Auto-MDI/MDIX support
- Non-blocking switching architecture for maximum throughput
- IEEE 802.3x flow control for reliable data transmission
- Energy-efficient technology to reduce power consumption
- MAC address self-learning for optimised network performance
- Compatible with 10Mbps, 100Mbps, and Gigabit Ethernet devices
Kit Contents
- TL-SG1024
- Power Cord
- Rack-mount Kits
- Rubber Feet
- Installation Manual
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 13.08W (220V/50Hz) |
| Max. Heat Dissipation | 44.63BTU/h |
| PERFORMANCE | |
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| QoS | 802.1p/DSCP QoS* *Only for V11 and later version |
| Green Technology | Yes |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
