The TP-Link LS105GP is a compact and reliable Gigabit PoE+ switch designed for small business networks, surveillance systems, and home office deployments. Featuring 5 Gigabit RJ45 ports, including 4 PoE+ ports, it delivers both data and power through a single Ethernet cable, simplifying installation for devices such as IP cameras, wireless access points, and VoIP phones.

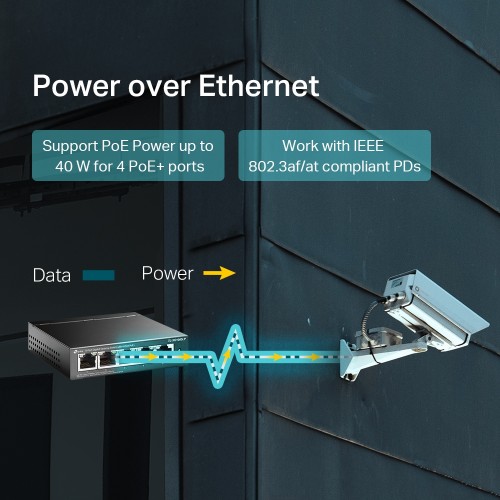

With a 65W PoE power budget and support for up to 30W per PoE+ port, the LS105GP provides dependable power delivery for multiple connected devices while maintaining high-speed Gigabit performance with switching capacity up to 10Gbps. Designed for surveillance and long-distance networking applications, Extend Mode enables PoE transmission distances of up to 250 metres, making it ideal for deploying cameras in large buildings, warehouses, and outdoor locations. The switch also features PoE Auto Recovery, which automatically detects and reboots unresponsive PoE-powered devices, helping to improve network reliability and reduce maintenance requirements. Its fan-less metal housing ensures silent operation while providing excellent durability.
With plug-and-play installation and no configuration required, the LS105GP offers an easy and cost-effective way to expand your network and power critical devices.
Features
- 5 x Gigabit RJ45 ports
- 4 x Gigabit PoE+ ports supporting IEEE 802.3af/at
- 65W total PoE power budget
- Up to 30W power output per PoE+ port
- Extend Mode supports PoE transmission up to 250m
- PoE Auto Recovery for improved device uptime
- 10Gbps switching capacity
- Durable metal casing with desktop or wall-mount installation
- Fanless design for silent operation
Kit Contents
- LS105GP
- Power Adapter
- Installation Guide
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1 - 4 Power Supply: 40 W |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0in (99.8 x 98 x 25mm) |
| Max. Power Consumption | 4.12 W (220/50 Hz. no PD connected) 47.5 W (220/50 Hz. with 40 W PD connected) |
| Max. Heat Dissipation | 14.05 BTU/h (no PD connected) 161.98 BTU/h (with 40 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
