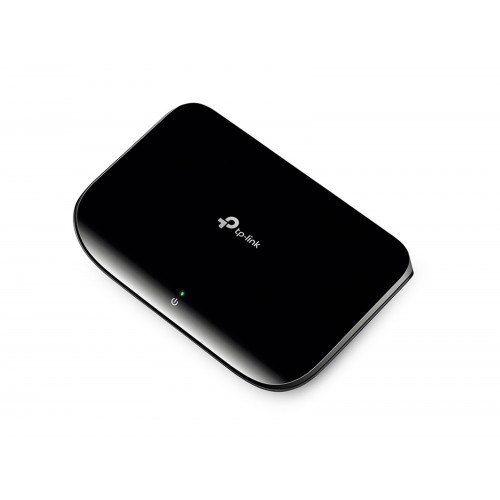

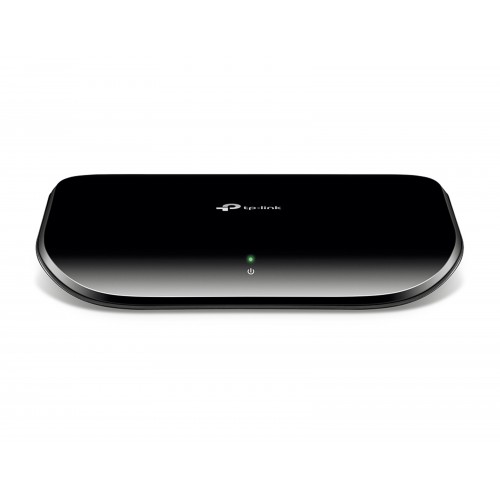

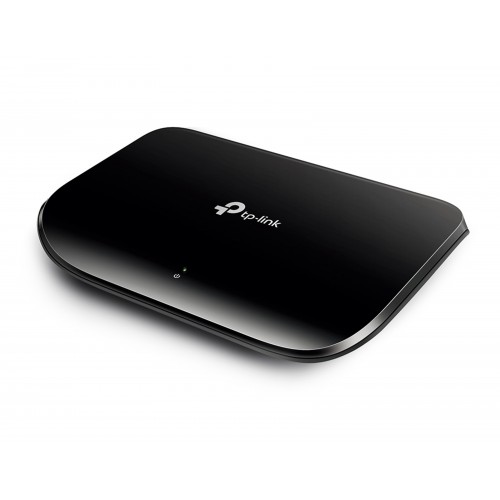

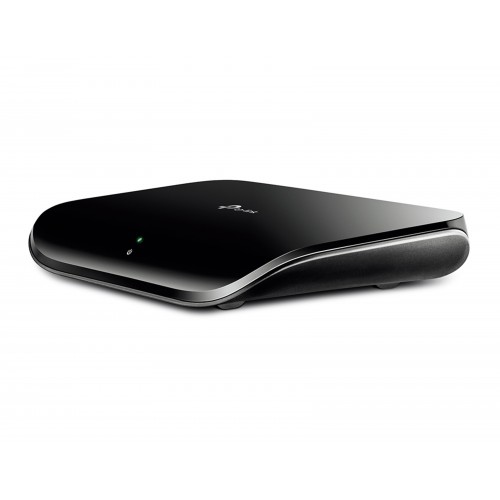

TP-Link TL-SG1005D 5 port Desktop Gigabit Switch
Click Image for Gallery
TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch TP-Link TL-SG1005D 5 port Desktop Gigabit Switch
  • The TP-Link TL-SG1005D is a compact and reliable 5-port Gigabit desktop switch designed to expand your wired network with high-speed Gigabit connectivity. Equipped with five 10/100/1000Mbps RJ45 ports, it provides fast and stable connections for PCs, smart TVs, gaming consoles, network storage devices, and other Ethernet-enabled equipment.
  • Built for home and small office environments, the TL-SG1005D features plug-and-play installation with no configuration required, allowing you to get your network up and running in seconds. Auto-Negotiation and Auto MDI/MDIX support automatically optimise connections, while IEEE 802.3x flow control helps ensure smooth and reliable data transmission.
  • The switch also incorporates TP-Link's energy-efficient Green Ethernet technology, which automatically adjusts power consumption based on link status and cable length, helping to reduce energy usage without compromising performance. Its compact design allows for convenient placement on a desk or wall, making it an ideal networking solution for homes, offices, and workgroups.


    • Features

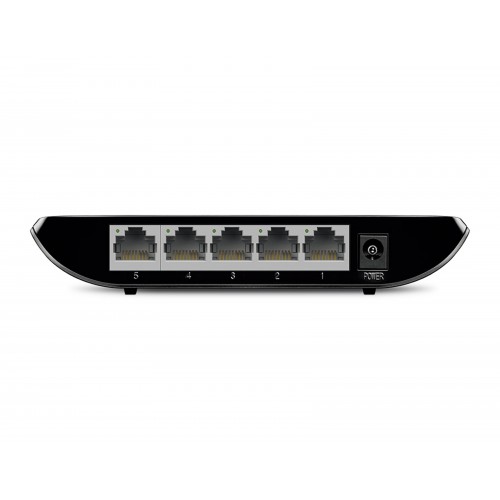

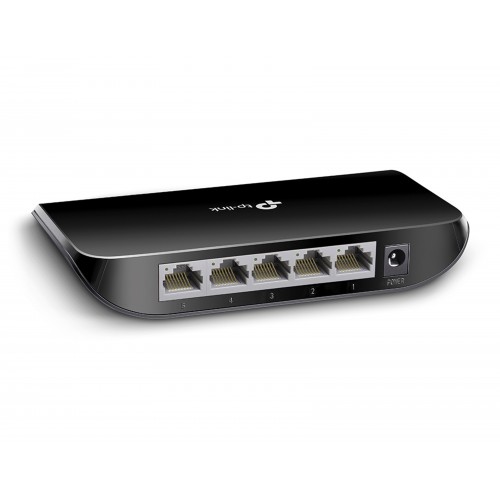

    • 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
    • Green Ethernet technology saves power consumption
    • IEEE 802.3x flow control provides reliable data transfer
    • Plastic case, desktop or wall-mounting design
    • Plug and play, no configuration required


    Kit Contents

    • 1x TL-SG1005D
    • 1x Power Adapter
    • Instruction Manual


    Technical

    HARDWARE FEATURES
    Interface5 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Fan QuantityFanless
    Physical Security LockNo
    Power SupplyExternal Power Adapter (Output: 5VDC / 0.6A)
    Dimensions (W x D x H)5.5 x 3.5 x 0.9 in. (140 x 88 x 23 mm)
    Max. Power Consumption3.1W (220V/50Hz)
    Max. Heat Dissipation10.57 Btu/hr
    SOFTWARE FEATURES
    Advanced Features
    • Green Technology
    • 802.3x Flow Control
    • Back Pressure
    • 802.1p/DSCP QoS (for V7 and later version)
    Transmission MethodStore-And-Forward
    OTHER
    CertificationFCC, CE, RoHS
    Package Content
    • 5-Port Gigabit Desktop Switch TL-SG1005D
    • Power Adapter
    • Installation Guide
    Environment Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5% ~ 90% non-condensing

    TP-Link TL-SG1005D 5 port Desktop Gigabit Switch

    • Brand: TP-Link
    • Product Code: TL-SG1005D
    • Availability:  In Stock
