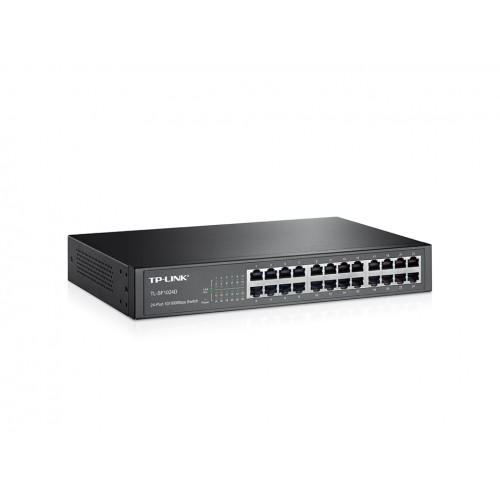

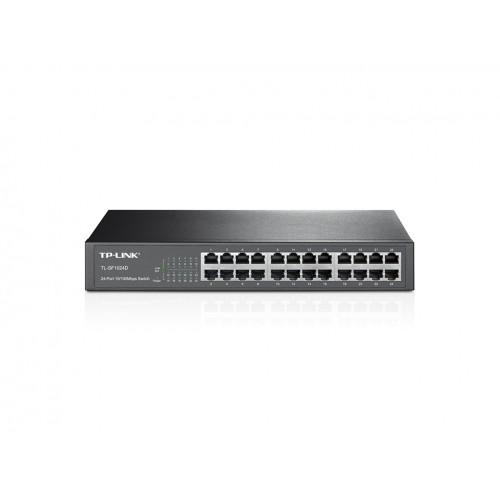

The TP-Link TL-SF1024D is a dependable 24-port Fast Ethernet switch designed to provide an easy and cost-effective way to expand wired network connectivity in small businesses, offices, schools, and workgroups. Featuring 24 auto-negotiating 10/100Mbps RJ45 ports, it allows multiple devices such as PCs, printers, IP phones, surveillance systems, and network storage devices to be connected with reliable performance and minimal setup.
Built for simplicity, the TL-SF1024D offers plug-and-play installation with no configuration required. All ports support Auto MDI/MDIX, eliminating the need for crossover cables and making network deployment quick and hassle-free. Designed with a durable steel desktop/rack mount chassis, the switch features a non-blocking switching architecture that forwards traffic at full wire speed for smooth and efficient network operation. IEEE 802.3x flow control helps reduce congestion and improve transmission reliability during periods of heavy network activity.
TP-Link's energy-efficient technology automatically adjusts power consumption based on link status and cable length, helping to reduce energy usage by up to 75%, making the TL-SF1024D an environmentally friendly choice for growing networks.
Features
- 24 10/100M RJ45 ports.
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.
Kit Contents
- TL-SF1024D
- Power Cord
- Rack mount Kit
- Rubber Feet
- Installation Manual
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 9VDC/0.6A) |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 3.19W (220V/50Hz) |
| Max. Heat Dissipation | 10.88BTU/h |
| PERFORMANCE | |
| Switching Capacity | 3.57Mpps |
| Packet Forwarding Rate | 3.57Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 2 Mb |
| Green Technology | Innovative energy-efficient technology saves power up to 75% |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
