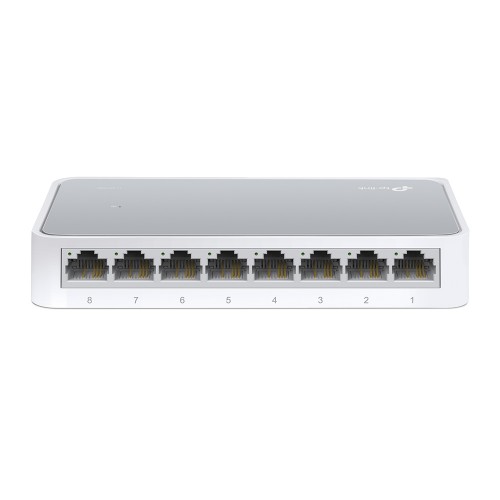

11.0_01_large_1516616891595k-500x500.jpg "TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch")

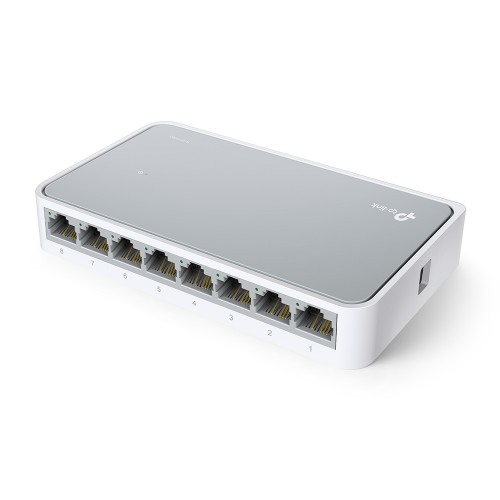

11.0_02_large_1516616900004c-500x500.jpg "TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch")
The TP-Link TL-SF1008D is a compact and reliable 8-port Fast Ethernet switch designed for home offices, small businesses, and workgroups looking to expand their wired network. With eight 10/100Mbps RJ45 ports, the switch provides a simple and cost-effective way to connect computers, printers, IP cameras, network storage devices, and other Ethernet-enabled equipment.
Featuring plug-and-play operation, the TL-SF1008D requires no configuration, allowing you to quickly add network devices and get connected in minutes. Auto-negotiation and Auto MDI/MDIX support automatically optimise connections and eliminate the need for crossover cables.
The switch incorporates IEEE 802.3x flow control for stable data transmission and a non-blocking switching architecture that ensures smooth network performance. Its energy-efficient design helps reduce power consumption, making it a practical and economical choice for everyday networking.
Features
- 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Kit Contents
- 1x TL-SF1008D
- 1x Power Adapter
- Instruction Manual
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
| External Power Supply | 100-240VAC, 50/60Hz |
| LED | Power, 1, 2, 3, 4, 5, 6, 7, 8 |
| Dimensions (W x D x H) | 5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm) |
| Max. Power Consumption | 2.05W (220V/50Hz) |
| Max. Heat Dissipation | 6.99BTU/h |
| PERFORMANCE | |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex; 20/200Mbps at Full Duplex |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology 802.3X Flow Control, Back Pressure |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
