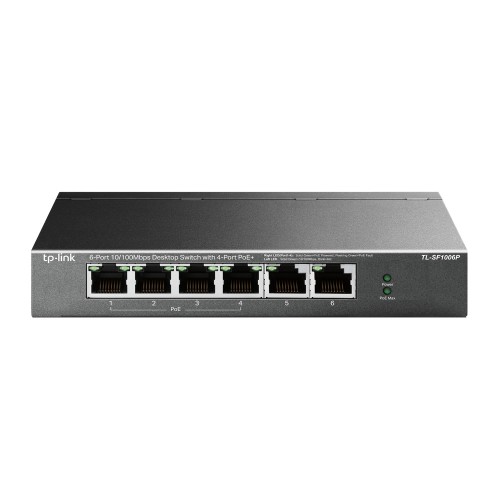

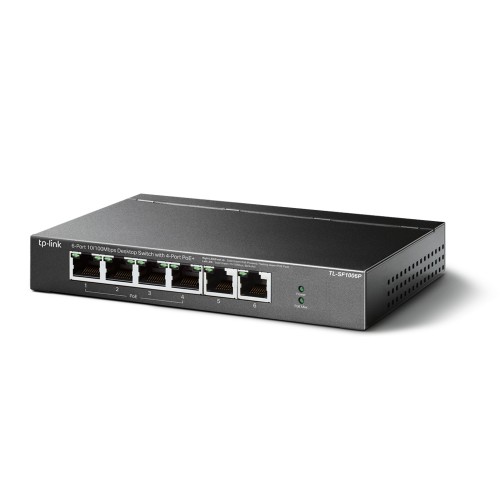

The TP-Link TL-SF1006P is a reliable and cost-effective 6-Port 10/100Mbps Desktop PoE+ Switch designed for small business networks, surveillance systems, and IP-based installations. Equipped with 4 PoE+ ports and 2 non-PoE Fast Ethernet ports, it provides both power and data connectivity over a single Ethernet cable, simplifying deployment and reducing cabling costs.
Supporting the IEEE 802.3af/at PoE standards, the TL-SF1006P offers a generous 67W PoE power budget, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. The switch automatically detects and supplies the required power to connected devices, ensuring safe and efficient operation.
Built with a durable desktop steel case, the TL-SF1006P is designed for reliable long-term performance in professional environments. Its plug-and-play functionality allows for quick installation without the need for software configuration or technical expertise, making network expansion simple and hassle-free.
Features
- 6 Fast Ethernet Ports - Features 6 x 10/100 Mbps RJ45 ports, including 4 PoE+ ports for simplified network connectivity.

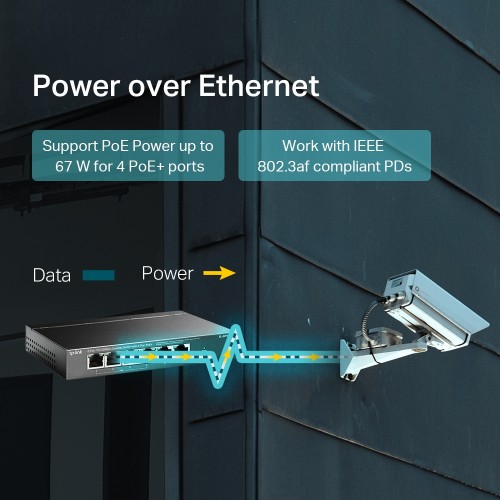

- Power and Data Over a Single Cable - 4 x PoE+ ports deliver both power and network connectivity to compatible devices, reducing cabling requirements.
- IEEE 802.3af/at PoE+ Support - Compatible with a wide range of PoE-enabled devices, including IP cameras, wireless access points, and VoIP phones.
- Extended PoE Transmission - Extend Mode supports power and data transmission distances of up to 250 metres, ideal for surveillance deployments.
- Priority PoE for Critical Devices - Priority Mode gives Ports 1 and 2 precedence, helping ensure reliable performance for essential devices.
- Up to 30W Per PoE Port - Provides ample power for demanding PoE devices such as PTZ cameras and high-performance access points.

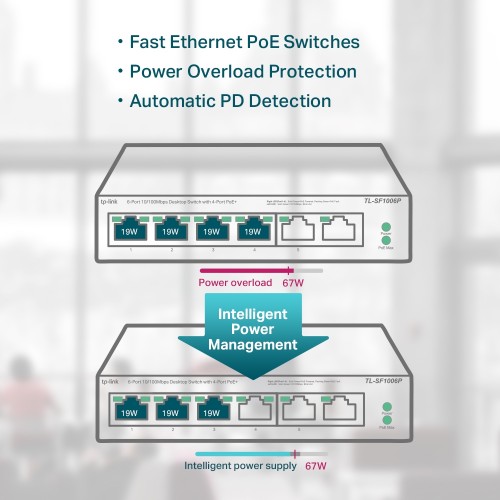

- 67W Total PoE Power Budget - Supports multiple powered devices simultaneously with a generous shared PoE capacity.

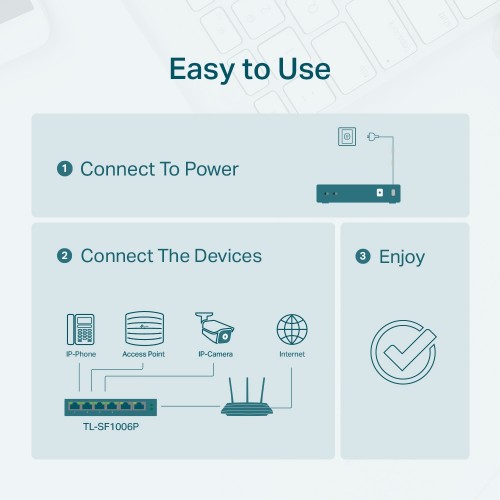

- Plug-and-Play Installation - Simple deployment with no software configuration or technical expertise required.
Kit Contents
- TL-SF1006P
- Power Adapter
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 6 x 10/100 Mbps RJ45 Ports (ports 1 - 4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1 - 4 Power Supply: 67 W |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0in (158 x 101 x 25mm) |
| Max. Power Consumption | 1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected) |
| Max. Heat Dissipation | 6.48 BTU/h(no PD connected) 252.34 BTU/h(with 67 W PD connected) |
| PERFORMANCE | |
| Packet Forwarding Rate | 0.8928 Mpps |
| Backup Bandwidth | 1.6Gbps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
