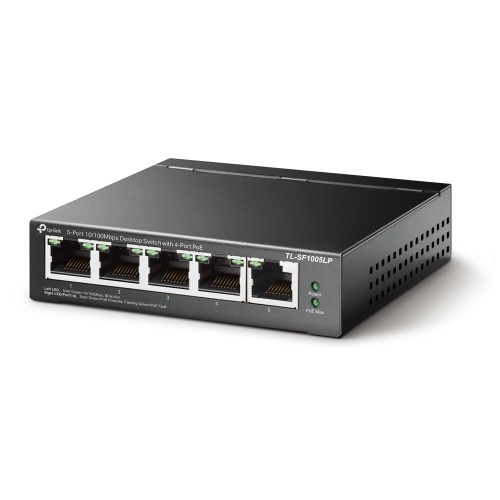

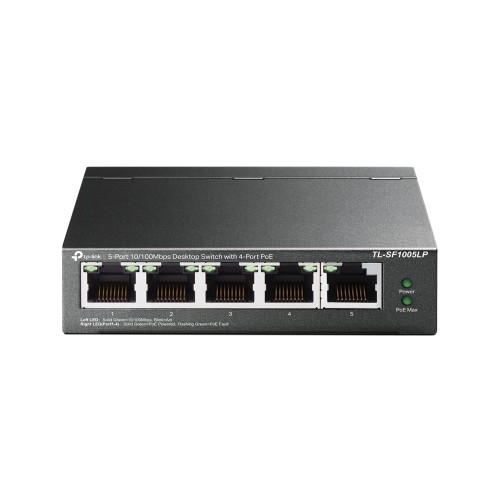

The TP-Link TL-SF1005LP is a compact 5-Port 10/100Mbps Desktop PoE Switch designed to simplify the deployment of IP cameras, wireless access points, VoIP phones, and other Power over Ethernet devices. Featuring 4 PoE-enabled Fast Ethernet ports and 1 non-PoE Fast Ethernet port, it delivers both data and power over a single Ethernet cable, reducing installation costs and cabling requirements. With support for the IEEE 802.3af PoE standard and a 41W total PoE power budget, the TL-SF1005LP provides reliable power delivery for multiple connected devices. The integrated Extend Mode allows PoE transmission distances of up to 250 metres, making it ideal for surveillance and networking applications where devices are located far from the switch.
For critical devices such as IP cameras, Priority Mode automatically prioritises power and data transmission on Ports 1 and 2, helping to ensure stable performance when the PoE power budget is under heavy load. Housed in a durable desktop steel case, the switch is built for long-term reliability and features plug-and-play operation for quick and easy deployment without configuration.
Features
- 5 x 10/100 Mbps RJ45 ports
- 4 x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1 - 2 to guarantee the quality of sensitive application

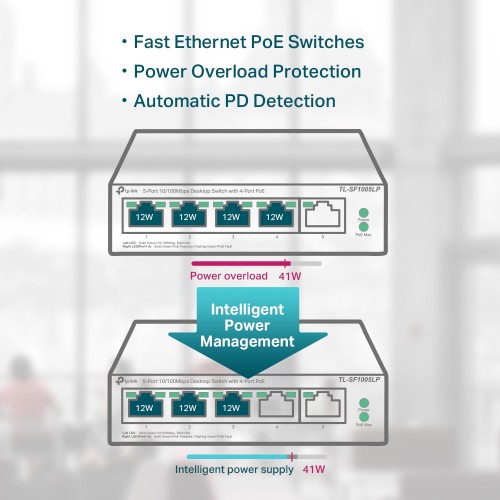

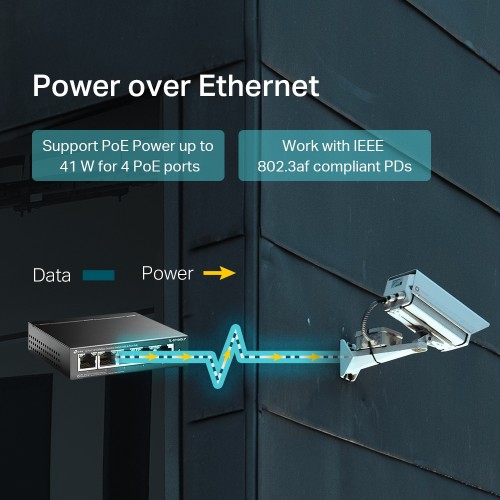

- Supports PoE Power up to 41 W for all PoE ports

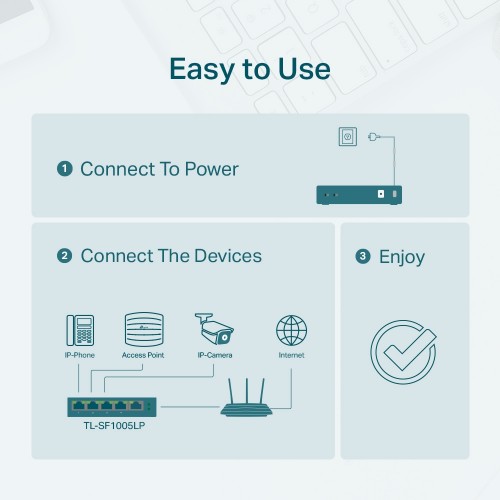

- Plug and play with no configuration required
Kit Contents
- TL-SF1005LP
- Power Adapter
- Installation Manual
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 x 10/100 Mbps RJ45 Ports (Ports 1 - 4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Ports 1 - 4 Power Supply: 41 W |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max. Power Consumption | 1.9 W (220 V / 50 Hz, no PD connected) 47 W (220 V / 50 Hz, with 41 W PD connected) |
| Max. Heat Dissipation | 6.48 BTU/h(no PD connected) 160.27 BTU/h(with 41 W PD connected) |
| PERFORMANCE | |
| Packet Forwarding Rate | 0.744 Mpps |
| Backup Bandwidth | 1.6Gbps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
