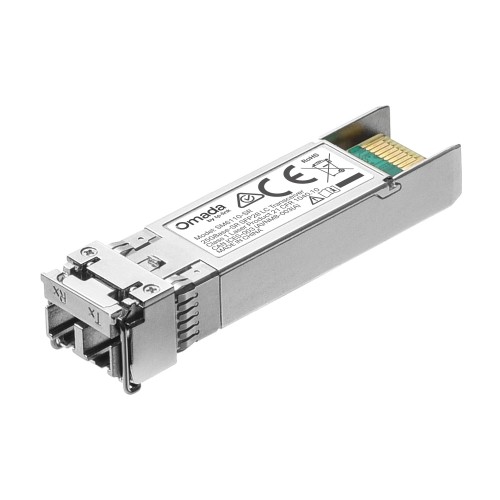

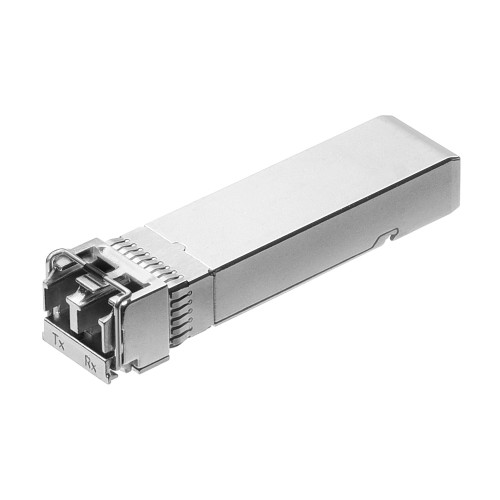

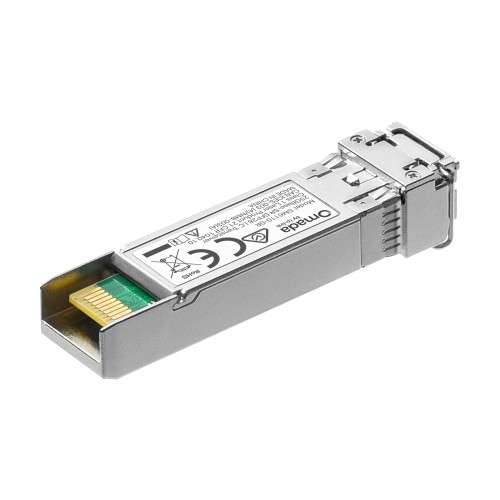

The SM6110-SR is a high-performance 850nm multi-mode transceiver designed to extend 10G and 25G Ethernet connections over fibre networks. Supporting both SFP+ and SFP28 interfaces, it delivers reliable full-duplex data transmission with distances of up to 70m over OM3 fibre and 100m over OM4 fibre at 25Gbps, as well as up to 300m over OM3 fibre at 10Gbps. Ideal for high-speed data centre and enterprise networking applications, the SM6110-SR provides a dependable and efficient solution for short to medium-range fibre connectivity.
Features
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
- Operating Temperature: 0°C to 70°C
Kit Contents
- SM6110-SR
- Installation Manual
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols |
|
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Fibre Type | 50/125um or 62.5/125um Multi-mode |
| Max. Cable Length | 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps |
| Connector | Duplex LC/UPC |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W x D x H) | 2.23 x 0.56 x 0.44 in (56.75 x 14 x 11.26 mm) |
| PACKAGE CONTENT | |
| Content | SM6110-SR Installation Guide |
| SFP28 CABLE | |
| Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |
