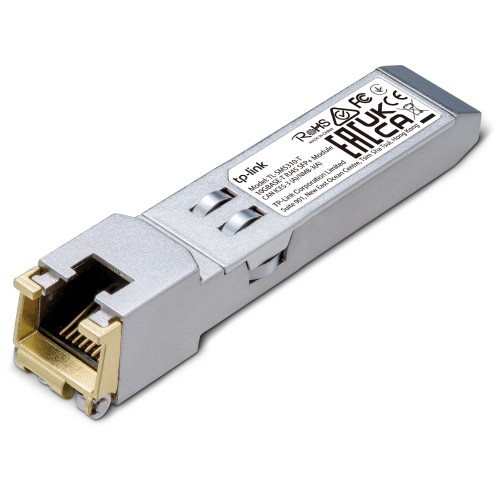

1.0-2000px-1_large_20220218021526o-500x500.jpg "TL-SM5310-T 10G BASE-T RJ45 SFP+ Module")
The TP-Link SM5310-T is a 10 Gigabit RJ45 SFP+ transceiver designed to add high-speed copper connectivity to compatible switches, routers, and networking equipment. It provides a simple way to utilise existing Cat6a or Cat7 cabling while benefiting from 10G network performance.
Supporting data transfer rates of up to 10 Gbps, the SM5310-T delivers reliable, low-latency connectivity for bandwidth-intensive applications such as server links, storage networks, and high-speed uplinks. Its SFP+ form factor allows for flexible deployment and easy integration into compatible network devices.
With hot-swappable support, the SM5310-T can be installed or replaced without disrupting network operation. It offers a cost-effective solution for upgrading network capacity, making it ideal for enterprise, campus, and data centre environments that require fast and dependable copper connections.
Features
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Commercial Product Operating Temperature Range: 0-70°C
- Fully Metallic Enclosure for Low EMI
Manuals & Datasheets
| Transceiver | |
|---|---|
| Standards & Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an, 802.3x; SFF 8432, SFF-8472 |
| Power Supply | 3.3V |
| Max. Cable Length | 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m) |
| Data Rate | 10.3Gbps |
| Port Type | 1 x 10GB RJ45 Port |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) |
| General | |
| Product Dimensions | 2.7 x 0.5 x 0.5in (67.4 x 13.75 x 13.8mm) |
| Hot Swappable | Yes |
| Package Content | 10G BASE-T RJ45 SFP+ Module SM5310-T Installation Guide |
