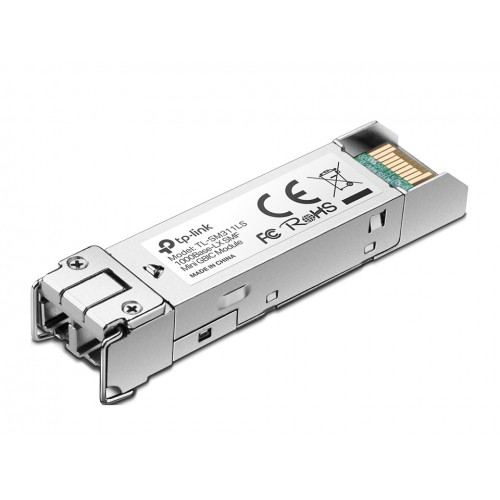

The TL-SM311 series Fibre Module Cards are designed to extend network transmission distances when used with compatible managed and smart switches.
Capable of reaching several kilometres or more, they provide a flexible solution for meeting LAN distance requirements. Users can select the appropriate fibre modules based on their networking needs while helping to reduce overall deployment costs.
Features
- Single-mode MiniGBIC module
- Applied to:
T3700G-28TQ, TL-SG5412F/TL-SG5428,
TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,
TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452,
TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L.
Manuals & Datasheets
Technical
| Media Converter & Module | |
|---|---|
| Standards & Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wavelength | 1310nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Single-mode Fibre |
| Fibre Type | 9/125 µm Single-mode |
| Data Rate | 1.25 Gbps |
| Port Type | LC / UPC |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 80°C (-40°F ~ 176°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
