The TP-Link POE380S is a high-power PoE++ injector designed to deliver both data and power over a single Ethernet cable to demanding devices. Ideal for high-performance access points, PTZ cameras, and other power-hungry equipment, it provides a simple and effective way to add PoE capability without upgrading to a full PoE switch.
Supporting multi-gigabit speeds and PoE++ standards, the POE380S ensures fast data transfer alongside reliable high-power delivery. Its plug-and-play design makes installation quick and straightforward, with no configuration required.
Compact and durable, the POE380S is well suited for business, enterprise, and advanced network deployments where consistent performance and higher power output are essential.
Features
- 2 x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
Kit Contents
- POE380S
- Power Cord
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Standards & Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |

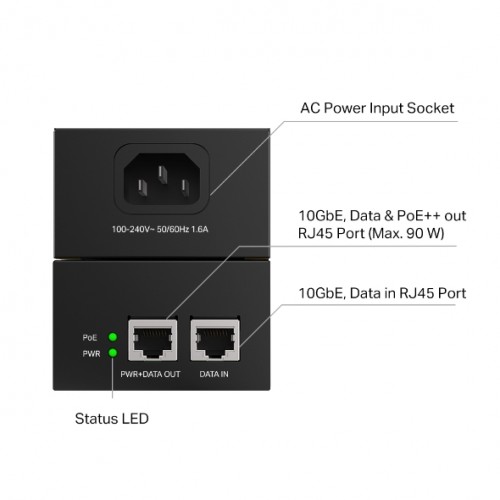

| Interface | 1 x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port 1 x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) 1 x AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Max. Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation Plug-and-Play |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 6.1 x 2.8 x 1.7in (155 x 70 x 42mm) |
| Other | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0 ~ 45 °C (32 ~ 113 °F) Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F) Operating Humidity: 10 ~ 90% RH non-condensing Storage Humidity: 5 ~ 90% RH non-condensing |
