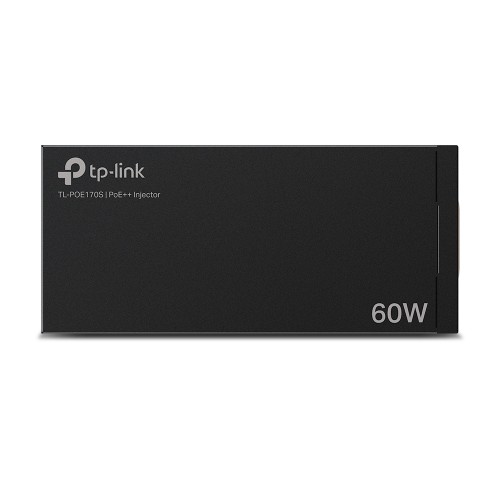

The TP-Link POE170S is a compact Gigabit PoE++ injector designed to deliver both power and data over a single Ethernet cable to high-power PoE devices. It's ideal for equipment such as advanced wireless access points, PTZ cameras, and other devices that require more power than standard PoE or PoE+.
Supporting the IEEE 802.3bt PoE++ standard, it provides reliable high-power delivery alongside stable Gigabit data transmission. Its plug and play design means no configuration is required, allowing for quick and straightforward installation.
With a compact form factor and durable build, the POE170S is well suited for business and advanced network setups where higher power output is needed without investing in a full PoE switch.
Features
- Two Gigabit ports
- Complies with IEEE802.3af/at/bt (type 3) standards, supplies up to 60 W
- Transmitting data and power to PoE devices via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design
- Plug & Play installation
- Durable metal casing
Kit Contents
- Omada PoE++ Injector POE170S
- Installation Guide
- Power Cord
- RJ45 Cable
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Standards & Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Interface | 1 x 10/100/1000Mbps RJ45 data-in port 1 x 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) 1 x AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m) |
| Max. Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| LED | Power / PoE |
| Dimensions (W x D x H) | 6.1 x 2.8 x 1.7in (155 x 70 x 42mm) |
| General | |
| Meterial | Metal Casing |
| Other | |
| Certification | FCC, CE, RoHS |
| Package Content | Omada PoE++ Injector POE170S Installation Guide Power Cord RJ45 Cable |
| Environment | Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% RH non-condensing Storage Humidity: 5% to 90% RH non-condensing |
