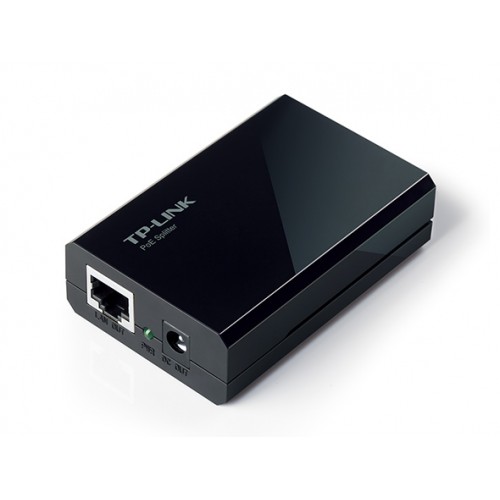

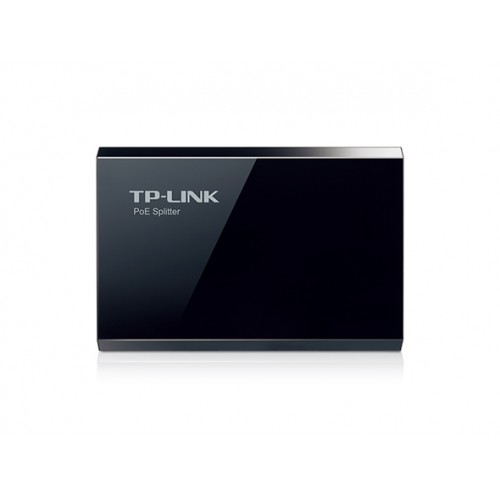

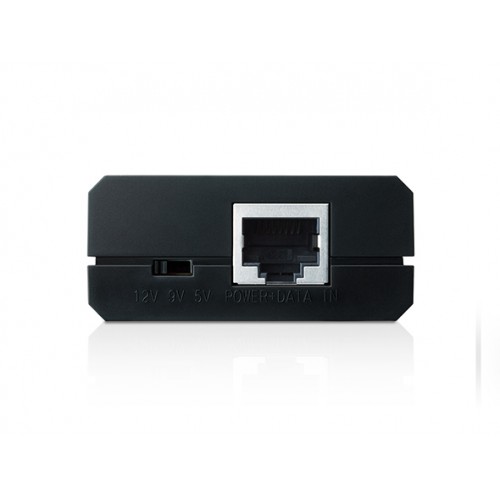

The TP-Link POE10R is a compact PoE splitter designed to deliver both power and data to non-PoE devices using a single Ethernet cable. It's ideal for equipment such as routers, access points, or IP cameras that do not support PoE but still need flexible placement away from power outlets. By separating power and data from a PoE input, the POE10R allows you to power compatible devices via standard DC output while maintaining a stable network connection. With a plug and play design, installation is quick and straightforward, requiring no configuration. Compact and easy to use, the POE10R is a practical solution for integrating non-PoE devices into PoE-enabled networks without additional wiring or complexity.
Features
- IEEE 802.3af compliant
- Selectable power output
- Gigabit speed support
- Plug-and-Play, requires no configuration
Kit Contents
- PoE Splitter TL-POE10R
- Power Cord
- RJ45 Cable
- Installation Guide
Manuals & Datasheet
Technical
| Hardware Features | |
|---|---|
| Interface | 2 x 10/100/1000Mbps RJ45 Port Auto Negotiation/Auto MDI/MDIX 1 x Power Output Port |
| Network Media |
|
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A |
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output |
| LED | PWR |
| Dimensions (W x D x H) | 3.2 x 2.1 x 0.9in. (80.8 x 54 x 24mm) |
| Other | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
