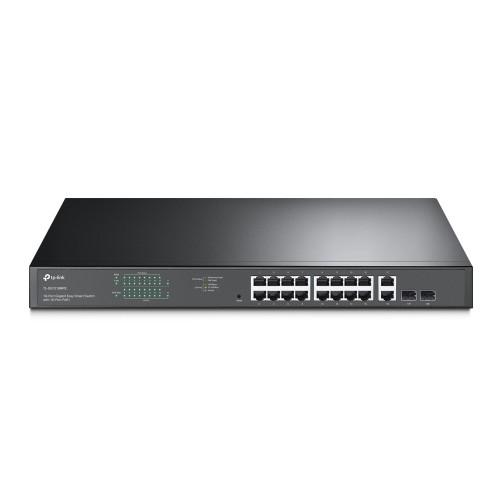

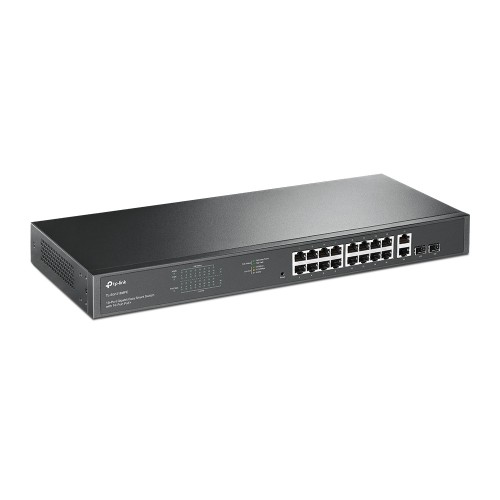

The TP-Link TL-SG1218MPE is an 18-port Gigabit Easy Smart PoE+ switch designed for small and medium-sized businesses, surveillance systems, offices and network installations. It features 16 Gigabit PoE+ ports, 2 non-PoE Gigabit ports and 2 combo Gigabit SFP slots, providing flexible connectivity for IP cameras, access points, IP phones, computers and other network devices.
With a 250 W PoE power budget and support for up to 30 W per PoE port, the TL-SG1218MPE can power multiple connected devices while providing reliable Gigabit network performance.
Key Features
- 16 x PoE+ gigabit RJ45 ports, 2 x gigabit non-PoE RJ45 ports and 2 x combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
Kit Contents
- 1 x TP-Link TL-SG1218MPE PoE+ Switch
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Rackmount Kit
- Rubber Feet
Manuals & Datasheets
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface |
|
| Network Media |
|
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100 - 240V AC, 50/60 Hz |
| PoE Ports (RJ45) | |
| Dimensions (W x D x H) | 17.3 x 7.1 x 1.7in (440 x 180 x 44mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 21.4 W (220/50Hz. no PD connected) 296.3 W (220/50Hz. with 250 W PD connected) |
| Max. Heat Dissipation | 72.97 BTU/h (no PD connected) 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36Gbps |
| Packet Forwarding Rate | 26.78Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Quality of Service |
|
| L2 Features |
|
| VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
