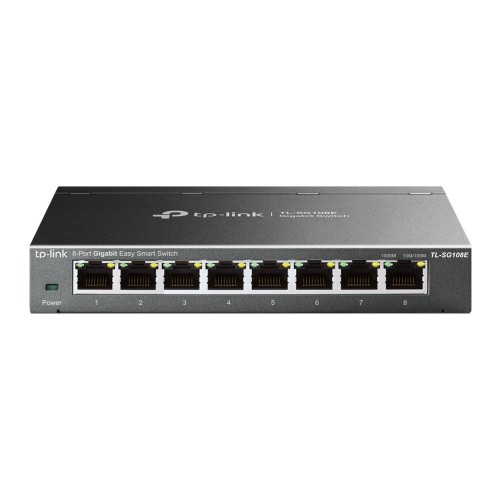

The TP-Link TL-SG108E is an 8-Port Gigabit Easy Smart Switch that combines reliable Gigabit performance with essential network management features for small businesses, home offices, and professional environments. Equipped with 8 x Gigabit RJ45 ports, it provides high-speed wired connectivity for computers, printers, IP cameras, NAS devices, wireless access points, and other network equipment.
Designed with a durable desktop steel case, the TL-SG108E delivers long-lasting reliability while maintaining a compact footprint. Easy Smart management features such as MTU, Port-Based and Tag-Based VLAN, Quality of Service (QoS), and IGMP Snooping help optimise network performance, improve traffic management, and enhance the efficiency of voice, video, and multicast applications.
The switch can be easily configured through a user-friendly web management interface or TP-Link's management utility, providing greater visibility and control over your network. With plug-and-play installation, deployment is quick and straightforward, making the TL-SG108E an ideal solution for users seeking advanced network management without the complexity of a fully managed switch.
Features

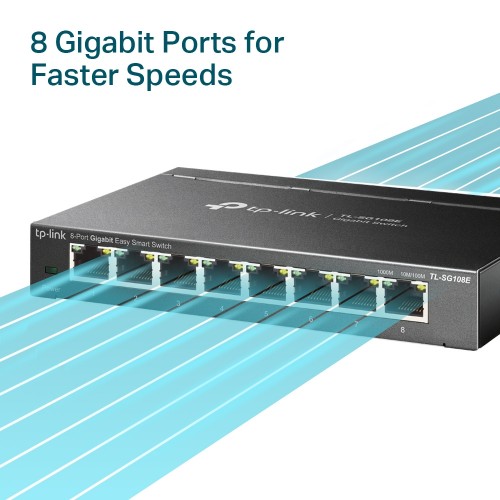

8 Gigabit Ethernet Ports Provides eight 10/100/1000 Mbps RJ45 ports for fast and reliable wired network connectivity.

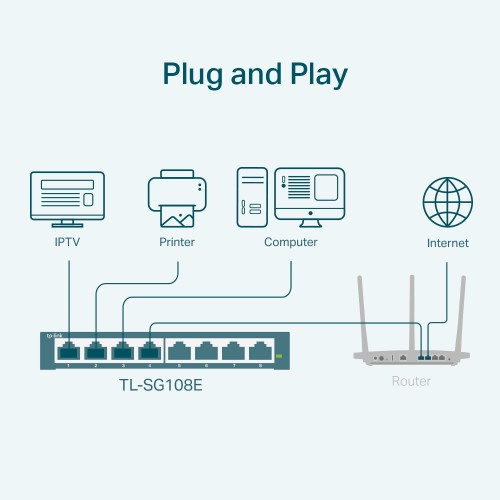

Plug-and-Play Setup Get your network up and running quickly with no software installation or configuration required.
Easy Smart Management Monitor and manage your network through an intuitive web-based interface or TP-Link's Easy Smart Configuration Utility.

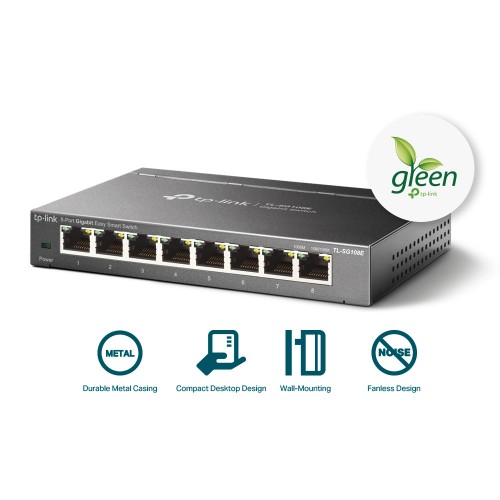

Robust Metal Housing Durable metal construction delivers long-lasting reliability and a professional appearance for desktop deployment.
Energy-Efficient Design Built-in Green Ethernet technology helps reduce power consumption without compromising network performance.
Kit Contents
- TL-SG108E
- Power Adapter
- Rubber Feet
- Installation Manual
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
|
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 9 VDC/ 0.6 A) |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max. Power Consumption | 3.68 W (220 V/ 50 Hz) |
| Max. Heat Dissipation | 12.55 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 11.9 Mpps |
| Packet Buffer Memory | 1.5 Mb |
| MAC Address Table | 4 K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| SOFTWARE FEATURES | |
| Quality of Service |
|
| L2 Features |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
