Upgrade your business network with the TP-Link Omada BE5000 Ceiling Mount Dual-Band Wi-Fi 7 Access Point, delivering next-generation wireless performance, enhanced efficiency, and seamless connectivity. Powered by the latest Wi-Fi 7 technology, it provides combined wireless speeds of up to 5.0 Gbps, making it ideal for high-density offices, retail environments, hospitality venues, and modern business networks.
Featuring a 2.5 Gigabit Ethernet port, the BE5000 unlocks the full potential of multi-gigabit networking, while advanced Wi-Fi 7 technologies such as Multi-Link Operation (MLO), 4K-QAM, and 240 MHz channel support help reduce latency and improve overall network performance. Designed for easy deployment, the access point supports 802.3at PoE+ for flexible installation and integrates seamlessly with the Omada Software Defined Networking (SDN) platform for centralised cloud management, monitoring, and configuration.
Features such as Omada Mesh, Seamless Roaming, WPA3 security, and multiple SSIDs ensure reliable, secure wireless coverage throughout your premises. With its discreet ceiling-mounted design and support for 250+ concurrent clients, the Omada BE5000 is a powerful, future-ready solution for businesses looking to embrace the benefits of Wi-Fi 7.
Features
- 5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
- 1 x 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
- Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.
- Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, PPSK, multiple portals, mesh, and seamless roaming.
- More Connections and Wider Coverage: Supports 510+ concurrent connections and covers up to 2,000 ft² (185 m²) for reliable and extensive wireless connectivity.
Kit Contents
- 1x EAP723

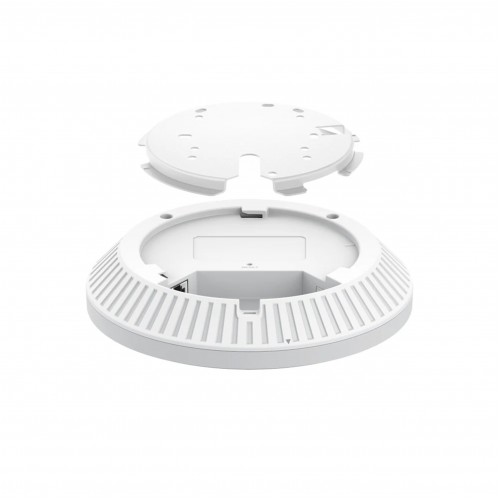

- 1x Mounting Bracket
- 2x T-Bar Mounts
- 4x Plastic Wall Anchors
- 4x Wing Nuts
- 4x Washers
- 14x Screws
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 x 2.5 Gbps Ethernet Port |
| Button | Reset |
| Power Supply |
center-positive circular plug with 9 mm length. |
| Weight | 0.47 kg (1.04 lb) |
| Dimensions (W x D x H) | 6.3 x 6.3 x 1.4in (160 x 160 x 36.7mm) |
| Antenna |
|
| Bluetooth | 1 x 4 dBi (peak gain), internal antenna |
| Mounting |
|
| Max. Power Consumption |
|
| WIRELESS FEATURES | |
| Coverage | 2,000 ft² (185 m²) |
| Concurrent Clients | 510+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 688Mbps (2.4GHz) + 4324Mbps (5GHz) |
| Wireless Functions |
|
| Wireless Security |
|
| Transmission Power | 7-20 dBm (2.4 GHz, EIRP) 9-24 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) |
| MANAGEMENT FEATURES | |
| Omada App | Yes (Omada App V5.0 and above) |
| Centralised Management |
|
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| OTHER | |
| Certification | FCC/CE/VCCI/JRF/ICES |
| Package Content |
|
| Environment |
|
