The TP-Link Omada EAP650GP-Desktop is a compact AX3000 Wi-Fi 6 GPON access point designed for FTTH and FTTR deployments, combining high-speed wireless networking, fibre connectivity, and voice services in a single device. Ideal for hotels, apartments, student accommodation, and business environments, it delivers enterprise-grade performance while simplifying network deployment through a single fibre connection.
With dual-band Wi-Fi 6 speeds of up to 3.0 Gbps, a built-in GPON port, four Gigabit Ethernet ports, and support for PoE-out, the EAP650GP-Desktop can connect and power multiple devices including IP phones, cameras, PCs, TVs, and wireless clients.
It also supports VoIP services, Omada Mesh, seamless roaming, and centralised cloud management through the Omada SDN platform. Designed for flexible installation, the EAP650GP-Desktop can be deployed on a desktop or mounted on a wall, making it a versatile solution for modern fibre-based networks.
Features
- High-Speed Wi-Fi 6 Connectivity: Delivers combined wireless speeds of up to 3.0 Gbps, with up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
- Integrated Gigabit Connectivity: Features 1× GPON fibre port and 4× Gigabit Ethernet ports, including 2 ports with PoE-out support for powering compatible devices.
- Supports broadband internet, wireless networking, voice services, VoIP, data communications, and HD video transmission over a single fibre connection.
- Advanced VoIP Capabilities: Supports multiple VoIP accounts and a wide range of professional telephony features for business communications.
- Simplified Deployment: Enables one-click pairing and automatic adoption for faster installation and streamlined network provisioning.

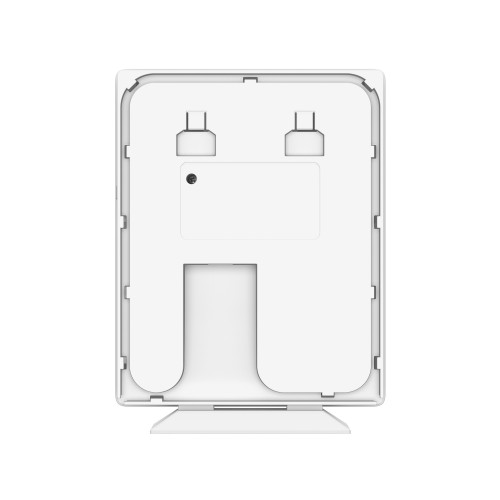

- Designed for both desktop and wall-mounted deployments to suit a variety of business environments.
- Enterprise-Grade Network Management: Supports unified management with Omada and compatible OLT platforms, PPSK, captive portals, Omada Mesh, and seamless roaming for secure and scalable wireless networking.
Kit Contents
- 1x EAP650GP-Desktop
- 1x Power Adapter
- 1x Mounting Bracket
- 1x Multi-Functional Base
- 2x Plastic Wall Anchors
- 2x Screws
Manuals & Datasheet
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| GPON Interface |
|
| Button | Reset LED |
| Power Supply | 53.5V/0.81A DC |
| Weight | 511g |
| Dimensions (W x D x H) | 6.9 x 5.5 x 1.3 in (175 x 140 x 33 mm) |
| Antenna |
|
| Mounting | Desktop/Wall-Mounting (Kits included) |
| Max. Power Consumption | 20W |
| WIRELESS FEATURES | |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Signal Rate | 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps |
| Wireless Functions | |
| Wireless Security | |
| Transmission Power |
|
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralised Management |
|
| Cloud Access | Yes, requires the use of an Omada controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Content |
|
| Environment |
|
