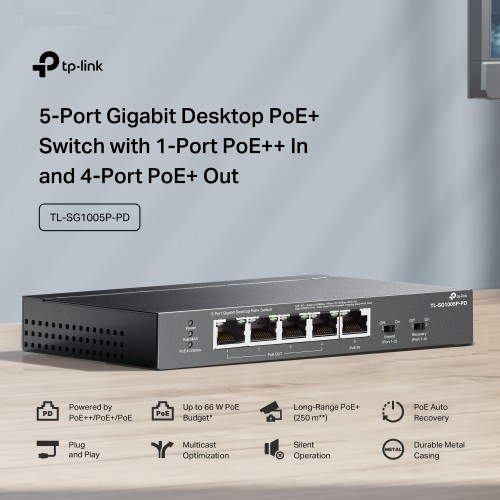

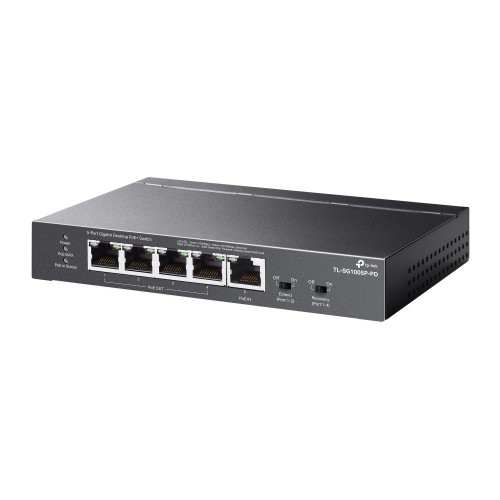

The TP-Link TL-SG1005P-PD is a compact and efficient Gigabit PoE switch designed to extend network connectivity while simplifying power deployment. Featuring 5 Gigabit Ethernet ports, including 4 PoE+ output ports and 1 Gigabit uplink port, it delivers both power and data over a single Ethernet cable, making it ideal for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
Supporting the IEEE 802.3af/at PoE standards, the switch provides a total PoE power budget of up to 65 W, with up to 30 W per PoE+ port, ensuring reliable power delivery to connected devices. Its durable steel desktop enclosure offers long-term reliability, while the compact design allows for easy placement in offices, retail environments, and small business networks. With plug-and-play operation, the TL-SG1005P-PD requires no software installation or configuration, enabling quick and hassle-free deployment. Combining Gigabit performance, PoE convenience, and robust build quality, it is an ideal solution for expanding and powering modern network infrastructures.
Features
- 5 Gigabit RJ45 Ports for high-speed 10/100/1000Mbps network connectivity
- 1 PoE++ Input Port and 4 PoE+ Output Ports for flexible powered network deployment

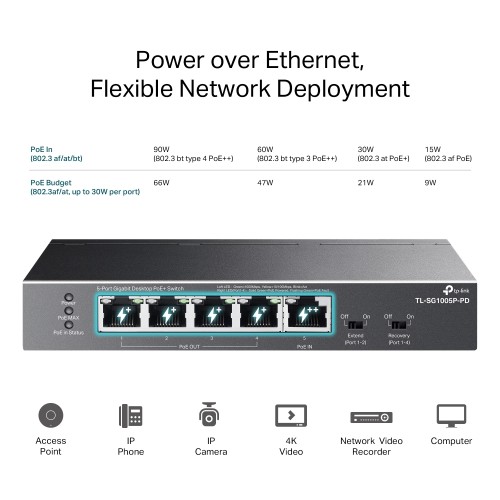

- Adaptive PoE Budget of up to 66W, 47W, 21W, or 9W depending on the PoE input standard used

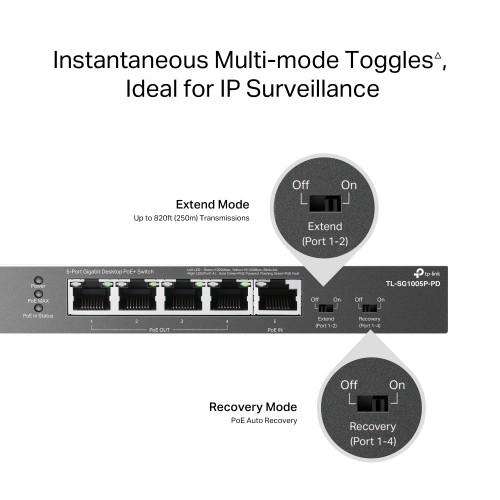

- Long-Range PoE Transmission up to 250m in Extend Mode, ideal for IP camera installations
- PoE Auto Recovery automatically reboots unresponsive powered devices to maintain network uptime

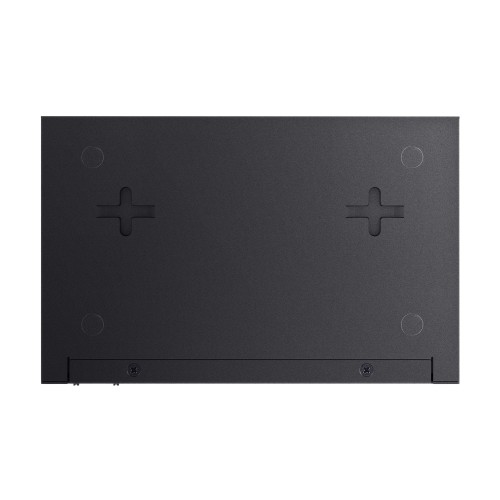

- Durable Metal Housing with desktop or wall-mount installation options
- Fan-less Design delivers silent operation for home and business environments

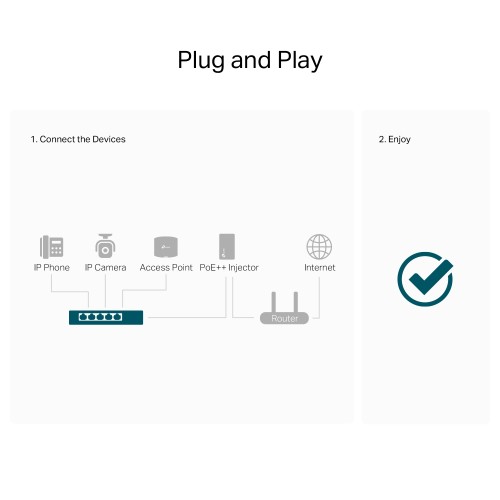

- Plug-and-Play Setup with no software configuration required

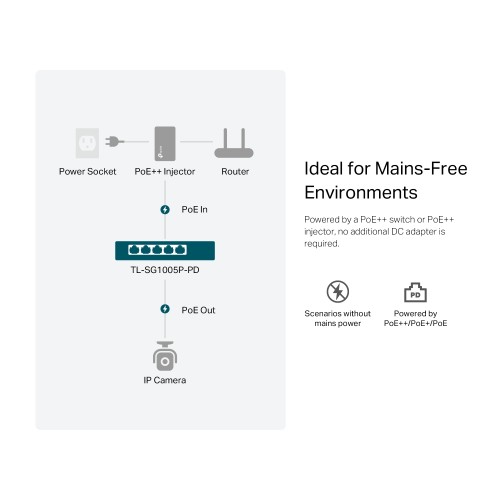

- PoE-Powered Operation designed to be powered via PoE input, with no AC or DC power adapter required
Kit Contents
- TL-SG1005P-PD
- Installation Manual
Manuals & Datasheet
Technical
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| Power Supply | Only Powered by PoE Device |
| PoE Ports (RJ45) |
|
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0in (158 x 101 x 25mm) |
| Max. Power Consumption | 2.68 W (90W PoE In, with no PD connected) 68.59 W (90W PoE In, with 66 W PD connected) |
| Max. Heat Dissipation | 9.112 BTU/h (90W PoE In, with no PD connected) 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K |
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: -30°C ~ 70°C (-22°F ~ 158°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
