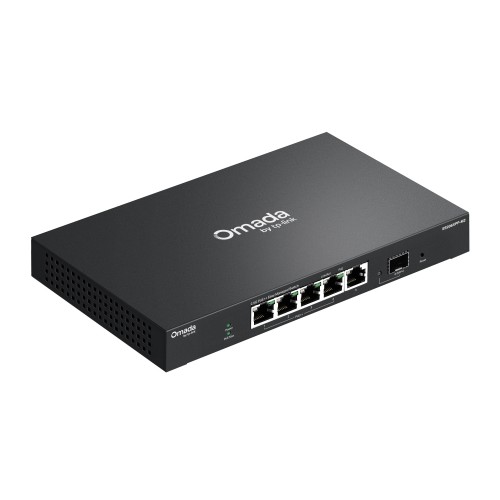

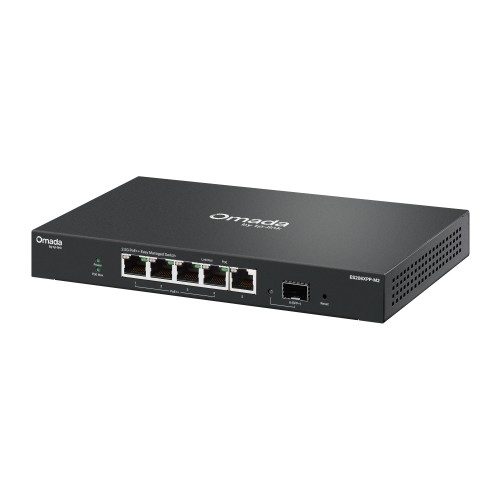

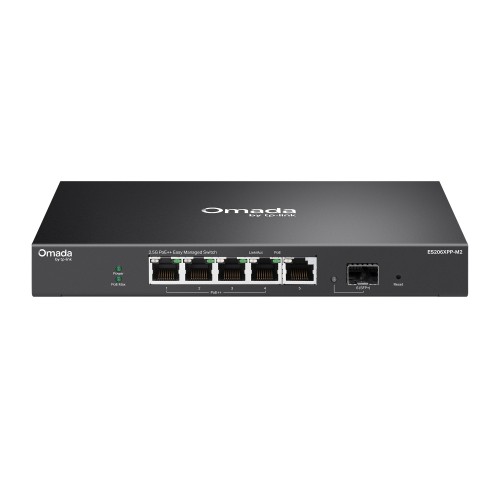

The TP-Link Omada ES206XPP-M2 is a compact multi-gigabit switch designed to deliver high-speed connectivity and powerful PoE deployment for modern business and surveillance networks. Featuring five 2.5Gbps RJ45 ports, including four PoE++ ports, plus a 10Gbps SFP+ uplink, it provides the bandwidth and flexibility needed to support Wi-Fi 6/7 access points, IP cameras, VoIP devices and other demanding network equipment.
With a generous 120W PoE budget and up to 90W available per PoE++ port, the ES206XPP-M2 can power high-performance devices while reducing cabling requirements. Centralised cloud management through the Omada platform, alongside features such as VLAN, QoS, IGMP Snooping and loop prevention, makes network administration simple and efficient. Its fanless metal design ensures silent operation, making it ideal for offices, retail environments, hospitality venues and small business deployments.
Features
- 5 × 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
- 1 × 10 Gbps SFP+ slot
- 120W PoE budget, with up to 90W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
- Fanless design for silent operation
Kit Contents
- ES206XPP-M2
- Power Cord
- Power Adapter
- Mounting Feet
- Installation Guide
Technical
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 x 2.5 Gbps RJ45 Ports (4 x 802.3af/at/bt-compliant PoE++) 1 x 10 Gbps SFP+ Slot Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | Desktop Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/2.43A) |
| PoE Ports |
|
| Dimensions (W x D x H) | 8.2 x 5.0 x 1.0in (209 x 126 x 26mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Packet Buffer Memory | 640KB |
| Jumbo Frame | 10KB |
| Switching Capacity | 45Gbps |
| Packet Forwarding Rate | 33.48Mpps |
| MAC Address Table | 16K |
| SOFTWARE FEATURES | |
| Quality of Service |
|
| L2 Features |
|
| L2 Multicast |
|
| VLAN |
|
| Transmission Method | Store-And-Forward |
| MANAGEMENT FEATURES | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
|
| OTHER | |
| Certification | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: -5°C ~ 40°C (23°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
