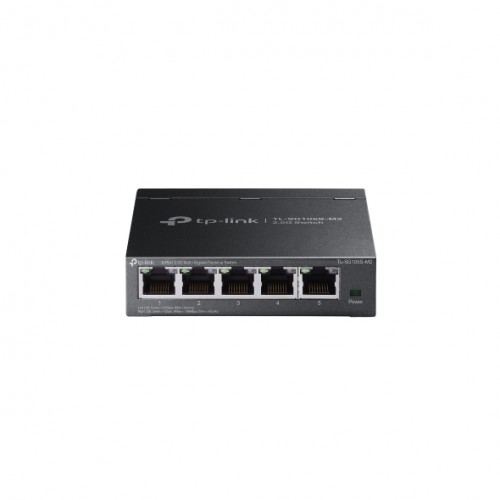

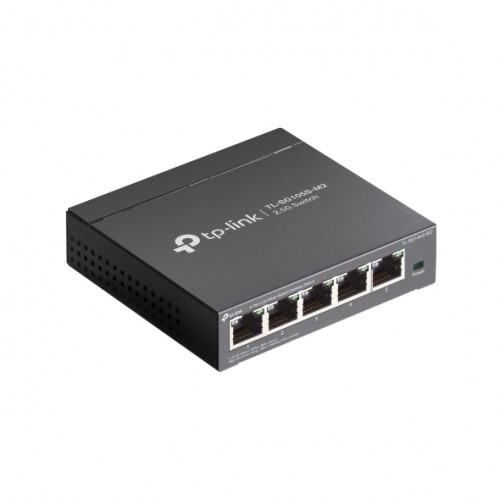

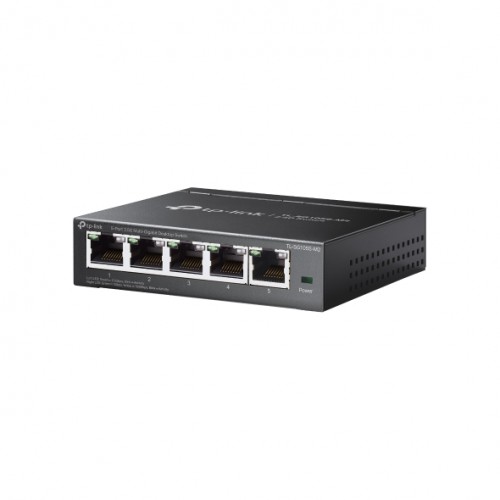

The Omada TL‑SG105S‑M2 is a compact 5‑port 2.5G Multi‑Gigabit desktop switch designed to deliver high‑performance networking for modern devices and workloads. Its five 2.5‑Gigabit auto‑negotiation ports provide up to 25 Gbps switching capacity, making it ideal for connecting 2.5G NAS units, servers, gaming PCs, Wi‑Fi 6/7 access points, and 4K media systems.
Built for versatility, it suits a wide range of environments, including LAN parties, home entertainment, small and home offices, and high‑speed workstation data transfers. Thanks to its fanless metal construction, the switch operates silently and reliably, while plug‑and‑play setup allows quick, technician‑free deployment. It maintains full 2.5G performance using existing Cat5e or better cabling, enabling painless upgrades without rewiring.
Features
- 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
- Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
- Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Allows for easy deployment without the need for a technician.
- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Kit Contents
- 1x 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105S-M2
- 1x Power Adapter
- 1x Installation Guide
- 1x Rubber Feet
Manuals & Datasheet
Technical
| General | |
|---|---|
| Standards and Protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9 VDC / 0.6 A) |
| LED | Power Link/Act Indicators |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
| Max. Power Consumption | 5.81 W |
| Max. Heat Dissipation | 19.754 BTU/h |
| Performance | |
| Jumbo Frame | 12 KB |
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 4 K |
| Software Features | |
| Advanced Features | 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store and Forward |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Content | 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105S-M2 Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -40 to 70 °C (-40 to 158 °F) Operating Humidity: 10 to 90 percent RH non-condensing Storage Humidity: 5 to 90 percent RH non-condensing |
