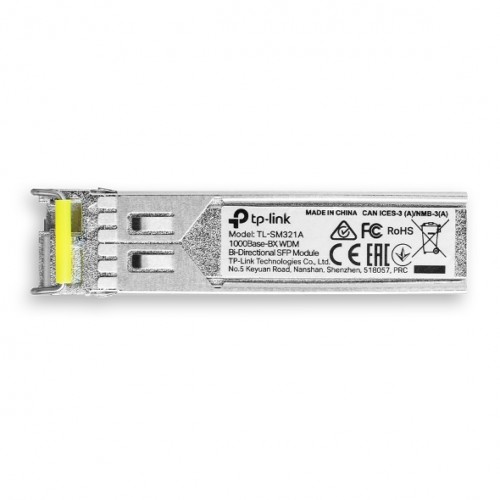

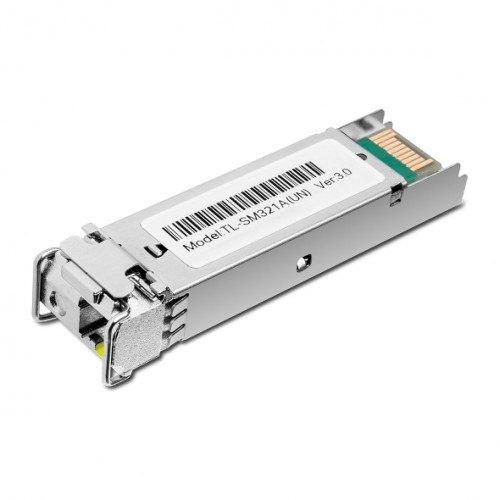

The TP-Link SM321A is a Gigabit WDM SFP transceiver designed to provide reliable fibre connectivity over a single fibre strand. Working alongside the matching SM321B module, it offers a cost-effective solution for extending network links while reducing fibre cabling requirements.
Supporting Gigabit Ethernet speeds, the SM321A delivers stable, high-performance data transmission for business networks, campus environments, and building-to-building connections. Its compact SFP form factor enables easy installation in compatible switches, routers, and media converters.
With hot-swappable support, the SM321A can be installed or replaced without disrupting network operation. It provides a practical and efficient way to expand fibre networks while maximising existing infrastructure and minimising deployment costs.
Features
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology
- 1000Base-BX Gigabit Support
- Hot-Swappable Design
- SFP-MSA Compliant
Kit Contents
- 1 x TL-SM321A SFP module
- 1 x Installation guide
Manuals & Datasheet
Technical
| Media Converter & Module | |
|---|---|
| Standards & Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1550 nm RX: 1310 nm |
| Dimensions (W x D x H) | 2.2 x 0.6 x 0.5in (55.4 x 14.6 x 12.9mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Single-mode Fibre |
| Fibre Type | 9/125 µm Single-mode |
| Max. Cable Length | 20km |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Hardware Features | DDM SFP-MSA Hot Swappable |
| Package Content | SM321A Installation Guide |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
