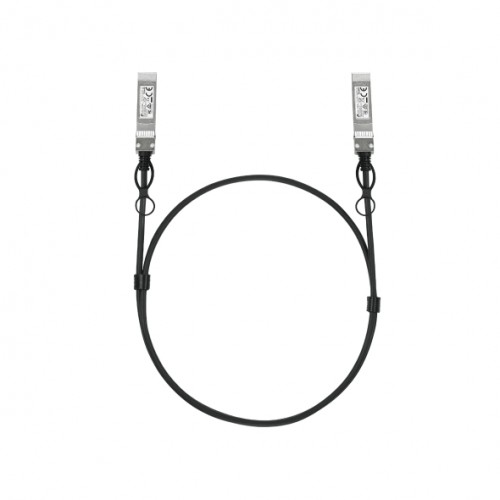

TP-Link Omada 1 Meter 25G SFP28 Direct Attach Cable
Click Image for Gallery
TP-Link Omada 1 Meter 25G SFP28 Direct Attach Cable
  • The SM6220-1M is a 1-metre passive twinax direct attach cable (DAC) featuring SFP28 connectors on both ends. Designed for high-speed, short-range networking applications, it provides a reliable and cost-effective solution for connections within the same rack or between adjacent racks.


    • Features

    • Operating Temperature: 0 - 70°C
    • Storage Temperature: -40 - 85°C
    • Silver Plated Copper Conductor
    • 30AWG Wire Gauge
    • 25 Gbps / 10 Gbps / 1 Gbps Data Rate


    Kit Contents

    • 1x Omada 1 Meter 25G SFP28 Direct Attach Cable


    Technical

    GENERAL
    Product Dimensions Plug: 2.26 x 0.53 x 0.34in (57.5 x 13.55 x 8.55mm);
    Overall length: 39.37in (1,000mm)
    Environment
    • Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F)
    • Storage Temperature: -40°C ~ 85°C (-40°F ~ 158°F)
    • Operating Humidity: 10% ~ 90% RH non-condensing
    • Storage Humidity: 5% ~ 90% RH non-condensing
    Data Rate25Gbps / 10Gbps / 1Gbps
    ConductorSilver Plated Copper
    Wire Gauge30AWG
    Min. Bend Radius22.5mm
    Max. Cable length1m

    TP-Link Omada 1 Meter 25G SFP28 Direct Attach Cable

    • Brand: TP-Link
    • Product Code: SM6220-1M
    • Availability:  In Stock
