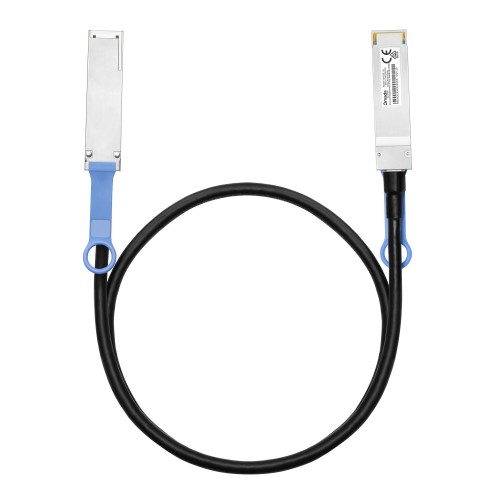

The SM9220-1M is a high-performance passive Direct Attach Cable (DAC) designed for ultra-fast 100Gbps network connectivity over short distances. Featuring a 1-metre Twinax cable assembly with QSFP28 connectors on both ends, it provides a reliable and cost-effective solution for connecting switches, servers, and storage devices within the same rack or across adjacent racks. Ideal for data centres and high-bandwidth networking environments, the SM9220-1M delivers low-latency, high-speed performance without the need for additional transceivers.
Features
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
- Operating Temperature: 0 - 70 ℃
Kit Contents
- 1 x SM9220-1M
Manuals & Datasheet
Technical
| GENERAL | |
|---|---|
| Product Dimensions | Plug: 2.85 x 0.72 x 0.53 in (72.45 x 18.35 x 13.50 mm); Overall length: 39.37 in (1,000 mm) |
| SFP28 CABLE | |
| Environment | Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
| Data Rate | 100 Gbps / 40 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Min. Bend Radius | 33 mm |
| Max. Cable Length | 1 m |
