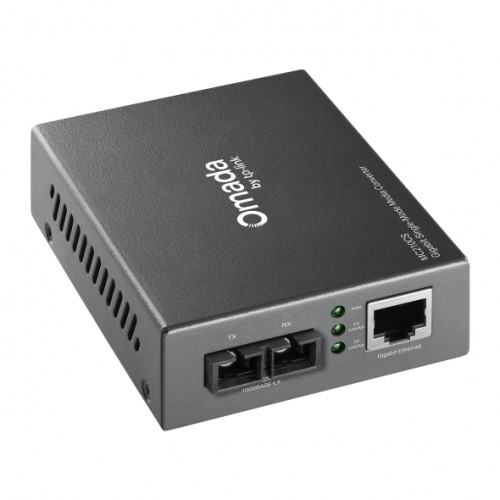

The TP-Link MC210CS is a Gigabit media converter designed to extend copper Ethernet connections over single-mode fibre. It's ideal for business networks, surveillance systems, and building-to-building links that require reliable long-distance connectivity.
Supporting Gigabit speeds, it delivers fast and stable data transmission over fibre while reducing interference and signal loss compared to copper cabling. Its fixed SC fibre port and RJ45 Ethernet port allow for straightforward integration into existing network setups.
With a plug and play design, the MC210CS requires no configuration, making installation quick and simple. Compact and durable, it's a practical solution for extending network reach with dependable high-speed fibre connectivity.
Features
- 1 x 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fibre distance up to 20km
Kit Includes:
- MC210CS
- Power Adapter
- Installation Guide
Manual & Datasheets
Technical
| Media Converter & Module | |
|---|---|
| Standards & Protocols |
|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fibre distance up to 20km |
| Interface | 2 x 1000M SC/UPC ports 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fibre |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1in (94.5 x 73.0 x 27.0mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.8W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
