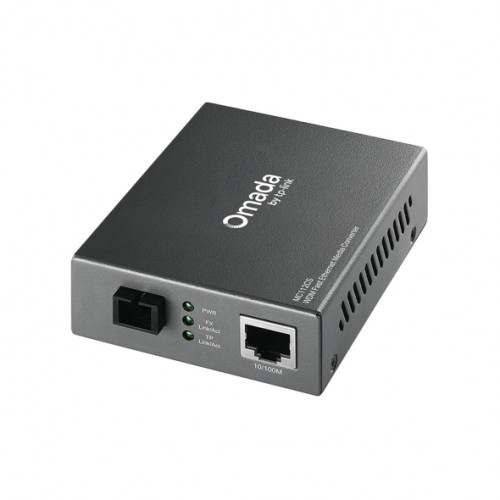

The TP-Link MC112CS is a compact media converter designed to extend copper Ethernet connections over single-mode fibre. It's ideal for small business networks, surveillance systems, and building-to-building links where longer transmission distances are required.
Supporting Fast Ethernet speeds, it provides stable and reliable data transmission over fibre, helping reduce interference and signal loss compared to traditional copper cabling. Its SC fibre port and RJ45 Ethernet port allow for straightforward integration into existing network setups.
With a plug and play design, the MC112CS requires no configuration, making installation quick and simple. Compact and durable, it's a practical solution for extending network reach with dependable long-distance fibre connectivity.
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fibre
- Extends fibre distance up to 20km
Kit includes:
- MC112CS
- Power Adapter
- Installation Guide
Manuals and Datasheets
Technical
| Media Converter & Module | |
|---|---|
| Standards & Protocols | IEEE802.3i, IEEE802.3u |
| Basic Function | Adopts WDM technology Half/Full-Duplex transfer mode for FX port Extends fibre distance up to 20km |
| Interface | 1 x 100M SC/UPC ports 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm TX / 1550nm RX |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fibre |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1in (94.5 x 73.0 x 27.0mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.18W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
