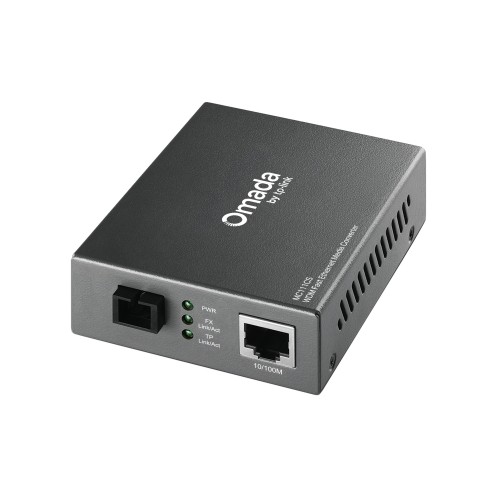

The TP-Link MC111CS is a compact media converter designed to extend copper Ethernet connections over single-mode fibre. It's ideal for small business networks, CCTV systems, and building-to-building links where reliable long-distance connectivity is needed.
Supporting Fast Ethernet speeds, it delivers stable data transmission over fibre while helping reduce interference and signal loss compared to standard copper cabling. Its SC fibre port and RJ45 Ethernet port make integration into existing networks simple and straightforward.
With a plug and play design, the MC111CS requires no configuration, allowing for quick and easy installation. Compact and durable, it's a practical solution for extending network reach with dependable fibre connectivity.
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fibre
- Extends fibre distance up to 20km
Kit includes:
- MC111CS
- Power Adapter
- Installation Guide
Manuals and Datasheets
Technical
| Media Converter & Module | |
|---|---|
| Standards & Protocols | IEEE802.3i, IEEE802.3u |
| Basic Function | Adopts WDM technology Half/Full-Duplex transfer mode for FX port Extends fibre distance up to 20km |
| Interface | 1 x 100M SC/UPC ports 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1550nm TX / 1310nm RX |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fibre |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1in (94.5 x 73.0 x 27.0mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.23W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content |
|
| Environment | Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
